N-Channel MOSFET 32A 25V Chip FDD8780
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code CHMOSPTNFDD8780
Brand House Brand
Part Number FDD8780
Category Accessories For Motherboards
Condition Like New Grade A
Description

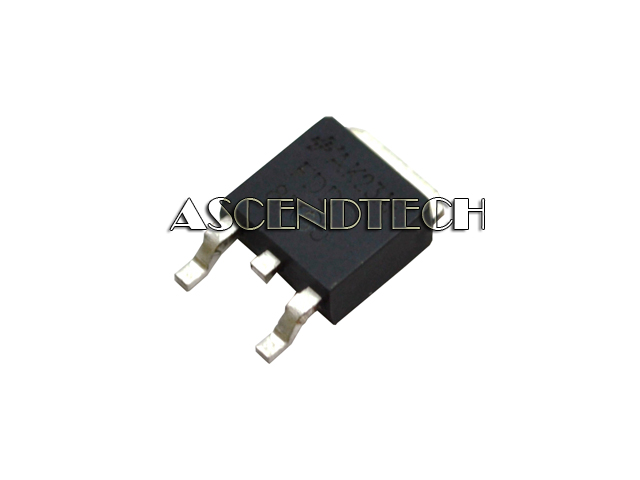

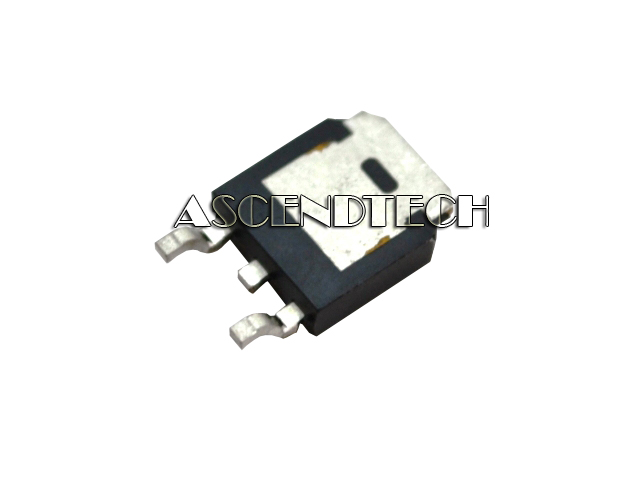

N-Channel PowerTrench MOSFET 25V 32A Transistor Chip FDD8780. This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(on) and fast switching speed.
nChannel Part Number: FDD8780
Features
- Max rDS(on) = 8.5mΩ at VGS = 10V, ID = 35A
- Max rDS(on) = 12.0mΩ at VGS = 4.5V, ID = 35A
- Low gate charge: Qg(10) = 21nC(Typ), VGS = 10V
- Low gate resistance
- Avalanche rated and 100% tested
- RoHS Compliant
