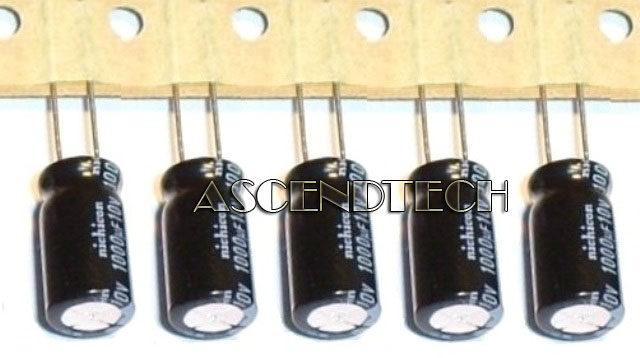

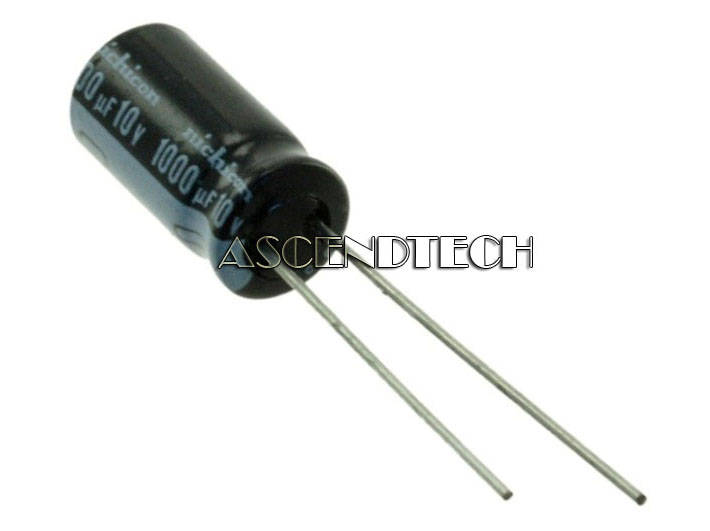

15x Nichicon 1000uF 10V 105° Capacitors

Lot of 15 Nichicon HM Series 1000uf 10V 105°C Ultra Low Impedance Radial Aluminum Electrolytic Capacitors. These are High Temperature, Ultra Low-ESR radial capacitors made by Nichicon, a reputable Japanese manufacturer. These low impedance capacitors are designed for the performance requirements of computer motherboards, and are also excellent for repair of video cards, televisions, LCD monitors, and power supplies.

Specifications:

Manufacturer: Nichicon
Series: HM(M)
Type: Radial
Mounting Method: Through Hole
Capacitance: 1000 µF
Rated Voltage: 10 VDC
Operating Temp-Max: 105 °C
Impedance (mΩ) MAX. @ 20˚C / 100kHz: 28
Rated ripple (mArms) @ 105˚C / 100kHz: 1490
Diameter: 8mm
Body Height: 15mm
Lead Spacing: 3.5mm
Lead Length: 22mm/25mm
Overall Length: 40mm
Quantity: 15
