2-PORT SATA-3 6GB/S PCI-e x1 CONTROLLER
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Description

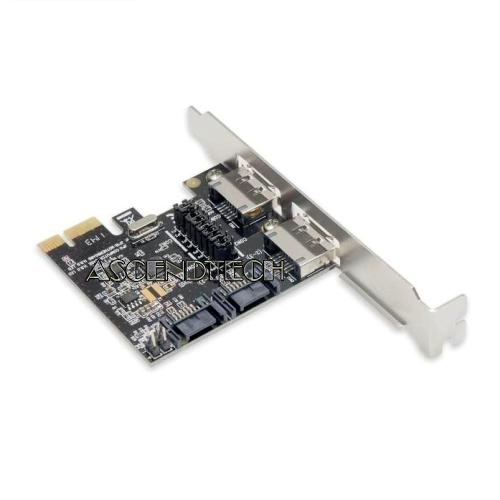

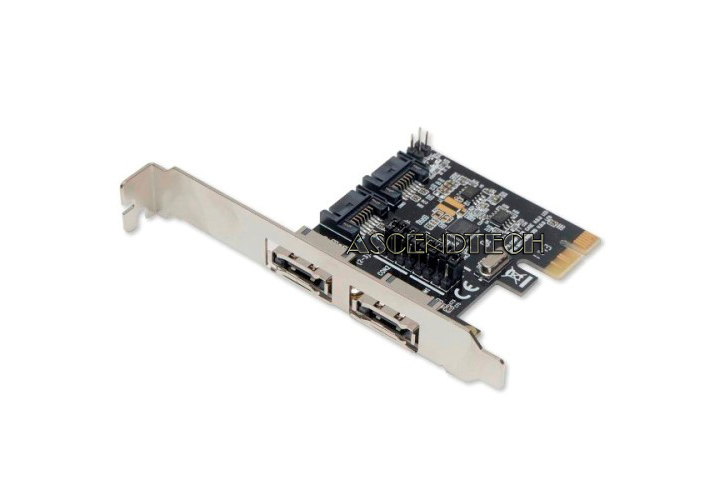

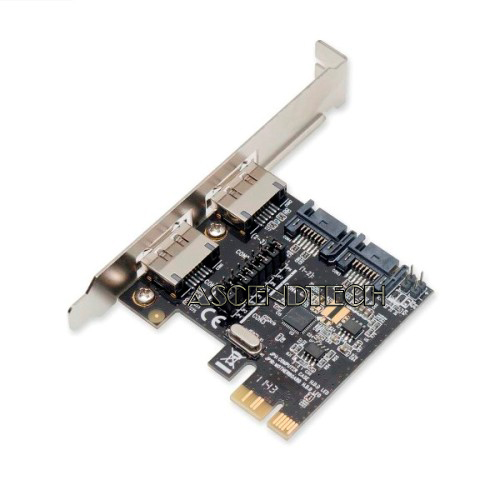

2-Port Sata III 6gbps PCI Express 2.0 x1 Controller Card. An innovation in design and concept, user configurable SATA connectors. 2 SATA channels can be set as Internal, External or combination with few jumpers.
Features:
• Based on ASMedia ASM1061 PCI-Express 2.0 SATA 6Gbps Controller
• 1-Lane PCI-Express 2.0 Interface Supports Communication Speed of 2.5Gbps and 5.0Gbps
• Compliant with PCI-Express 2.0 Base Specification
• Unique Hard Drive Activity LED Indicator Circuit Design. The LED Blinks for Read/Write Activity on Any One of the Hard Drive Connected to the Motherboard or to This Add-on Card
Specifications:
| Interface | PCI Express 2.0 x1 |
| Data Transfer Rate | 768 MBps |
| Interfaces | Serial ATA/600 |
| Drive Supported | 2 |
| Platform Supported | PC |
| Ports | 2 x 7-pin Serial ATA/600 - External SATA 7-pin Serial ATA/600 - Serial ATA Internal 2 x 7-pin Serial ATA/600 - Serial ATA Internal |
| Serial-ATA (SATA) Interface | SATA 6.0Gbps Ports (Internally, Externally or Their Combination) Compliant with Serial-ATA Specification 3.0 Supports Communication Speed of 6.0Gbps, 3.0Gbps, and 1.5Gbps Compatible with SATA-III (6Gbps), SATA-II (3Gbps), SATA-I (1.5Gbps) Hard Drives and SSD's Supports Gen1m and Gen2m SATA PHY Supports Native Command Queue (NCQ) Supports SATA Port Multiplier Supports SATA Port Hot-plug Supports IDE/AHCI Mode Supports Up to 3TB Hard Drives |
| System Requirements | Windows 7 Vista Windows XP Server 2003 Server 2008 |
