3 COM 8-Port Ethernet Hub 3C16701A
Description

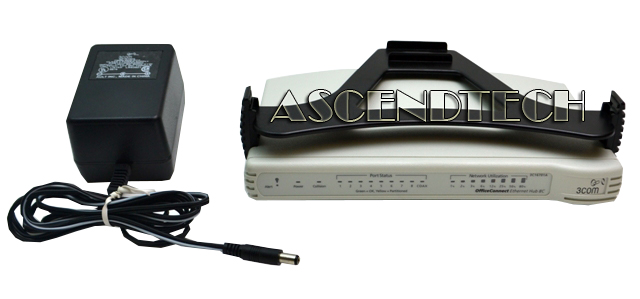

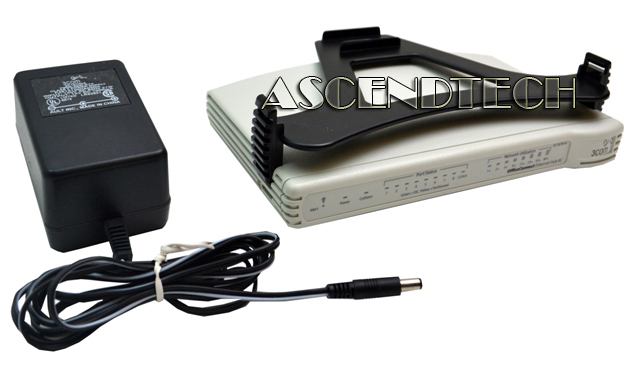

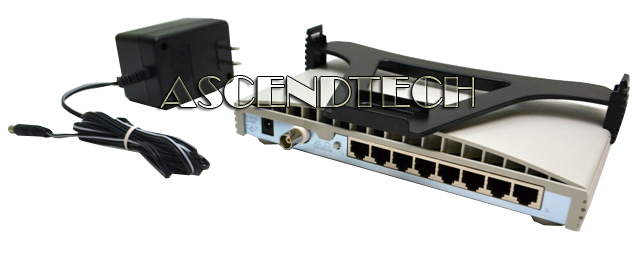

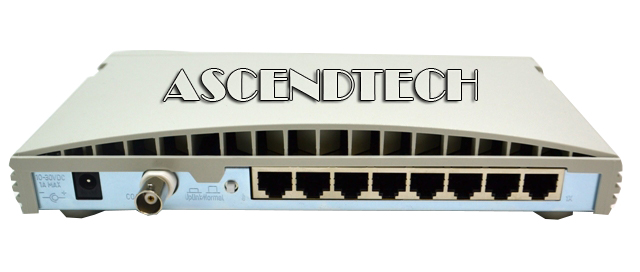

Genuine Original 3 COM Office Connect 8-Port Ethernet Hub with AC Power Adapter and Fastening Piece 8C 1670-110-050-3.00 3C16701A. The OfficeConnect series is a group of hubs that have been optimized and designed for small Ethernet workgroups. The OfficeConnect hub 8/TPC is an entry level model that includes enhanced diagnostics over its counterpart (8/TPO) for those who want simple yet powerful networking. It has eight, 10Base-T RJ-45 twisted-pair ports and also has a BNC 10Base2 Coaxial port to allow connection to other units, up to 30 hubs can be daisy-chained in this manner on a single segment. This allows for easy network expansion at a later date. There is also the standard MDI/MDIX switch to allow connection of either a workstation or another Ethernet hub for up to a maximum of 4 hubs in series. Cascading the hubs in this way will require the use of one of the RJ-45 ports, but allows for expansion and the addition of network functions such as print and fax services.
Part Number: 3C16701A
Compatible Numbers: 1670-110-050-3.00
AC Adapter Part Number: 3C16740A
Specifications:
| Subtype | Ethernet |
| Ports | 8 x 10Base-T + 1 x 10Base-2 |
| Status Indicators | Port status, collision status, power, alert, network utilization % |
| Cabling Type | Ethernet 10Base-2, Ethernet 10Base-T |
| Compliant Standards | IEEE 802.3 |
| Ports Qty | 8 |
| Voltage Required | AC 100/240 V |
| Voltage Required Margin | ± 10% |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 11 VA |
| Type | external power adapter |
| Gender | female |
| Connector Qty | 1, 8 |
| Interface | Ethernet 10Base-2 |
| Connector Type | BNC |
| Width | 8.7 in |
| Depth | 5.9 in |
| Height | 1.4 in |
