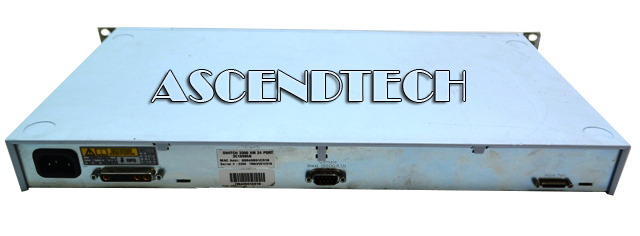

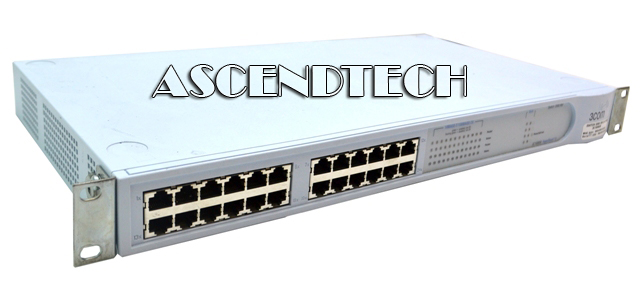

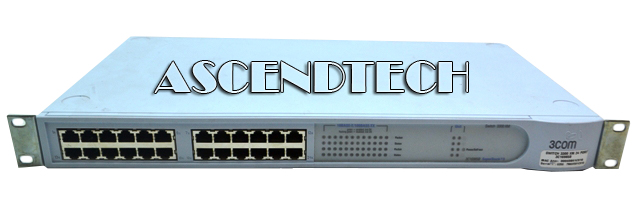

3 COM Super Stack III Switch 3C16985B
Description
Genuine Original 3 COM Super Stack III 10 Base-T/100 Base-TX 24-Port Managed Switch 3300XM 3C16985B. The 3Com SuperStack 3 Switch 3300 fixed configuration models are best suited for expansion of existing sites with other Switch 3300 or Switch 1100 models. SuperStack 3 Switch 3300 fixed configuration switches have a long history of highly reliable 10/1003switching. These units are best suited today for extending existing sites having other Switch 3300 or Switch 1100 models, or for sparing in existing installations. Choose from among four Switch 3300fixed configuration models—fully optimized and preconfigured—so you don't have to worry about specifying and configuring hardware and software. Just open the box, connect the power cable and port connections, and turn on the unit.
Model Number: 3300XM
Part Number: 3C16985B
Compatible Numbers: 1698-510-051-2.00
Specifications:
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 |
| Status Indicators | Port status, power, link/activity |
| Cabling Type | Ethernet 100Base-TX, Ethernet 10Base-T |
| Subcategory | network hubs and switches |
| Connectivity Technology | wired |
| Features | flow control, full duplex capability, manageable, modular design, stackable |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u |
| Ports Qty | 24 |
| Remote Management Protocol | RMON, SNMP |
| Communication Mode | full-duplex, half-duplex |
| Voltage Required | AC 110/220 V |
| Voltage Required Margin | ± 10% |
| Nominal Voltage | AC 120/230 V |
| Power Consumption Operational | 75 Watt |
| Gender | female, male |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 95% |
