3COM Super Stack 3 3300 Switch 3C16980A
Description

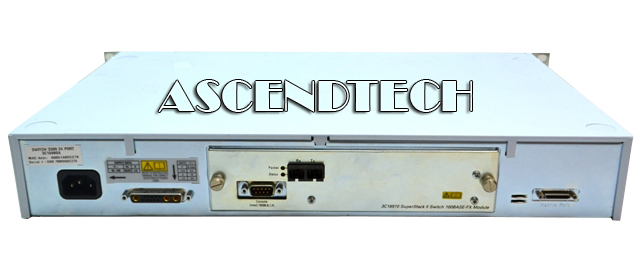

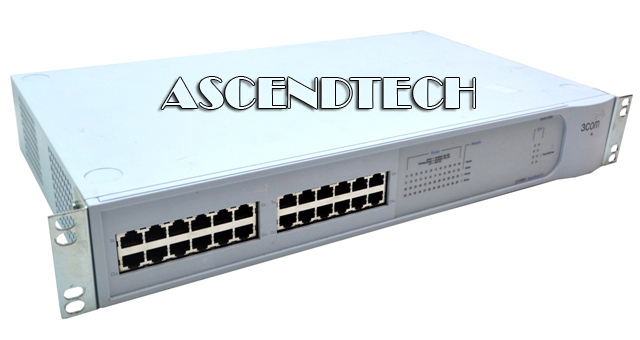

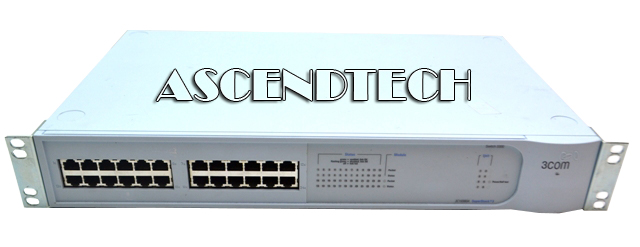

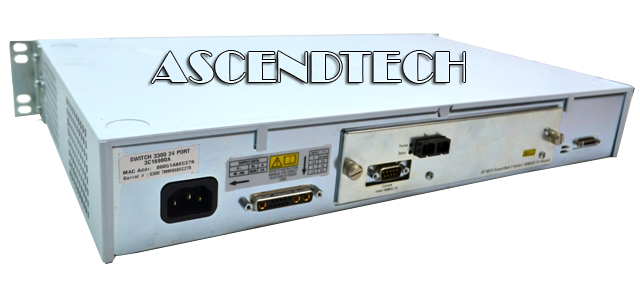

Genuine Original 3 COM Super Stack 3 3300 24-Port Managed Switch with 100 Base-FX Module Card 3C16970 1698-010-050-3.00 3C16980A. The 3Com SuperStack 3 Switch 3300 is a switch that provides the smoothest migration to Fast Ethernet with 10/100 autosensing on all ports to adjust automatically to the speed of the attached devices. The SuperStack 3 Switch 3300 also features an optional expansion slot. This allows you to easily add such features as Layer 3 switching and Gigabit Ethernet connectivity when needed. The SuperStack 3 Switch 3300 can be mixed and matched with the SuperStack II Switch 1100 and other members of the SuperStack 3 Switch 3300 family to achieve the perfect combination of cost and features for desktop, workgroup, and backbone aggregation. Built around a plug-and-play concept, this switch requires a minimal effort to set up.
Part Number: 3C16980A
Compatible Numbers: 1698-010-050-3.00
Also Included:
1 x 3C16970
Specifications:
| Device Type | Switch - 24 ports - managed - stackable |
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 |
| Status Indicators | Port status, collision status, power, link/activity |
| Cabling Type | Ethernet 100Base-TX, Ethernet 10Base-T |
| Features | flow control, full duplex capability, modular design, network monitoring, stackable |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
| Remote Management Protocol | RMON, SNMP |
| Communication Mode | full-duplex, half-duplex |
| Voltage Required | AC 110/220 V |
| Voltage Required Margin | ± 10% |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Type | internal power supply |
| Gender | female, male |
| Interface | Ethernet 10Base-T/100Base-TX, RS-232C |
| Connector Type | 9 pin D-Sub (DB-9), RJ-45 |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 122 °F |
| Min Operating Temperature | 32 °F |
