3COM Super Stack II Switch 3C16950
Description

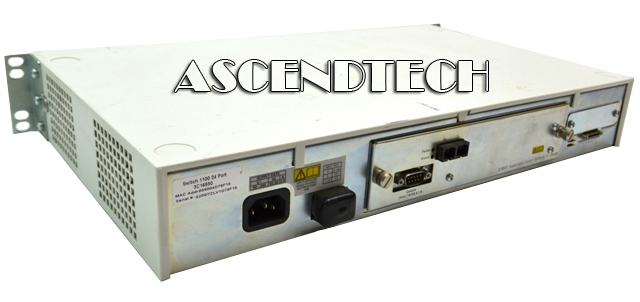

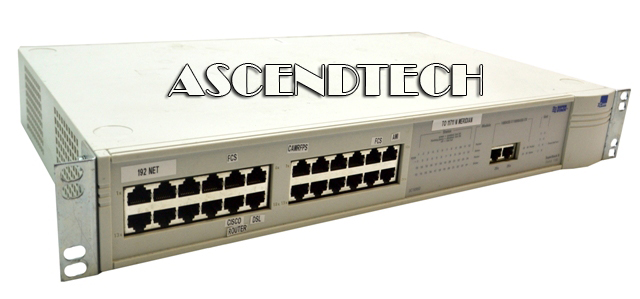

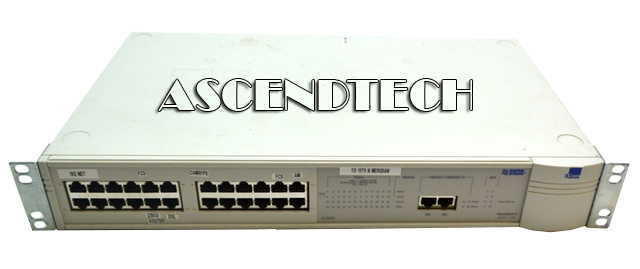

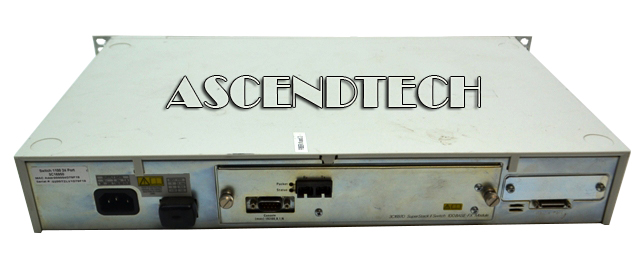

Genuine Original 3 COM Super Stack II 1100 24-Port Managed Switch with 100 Base-FX Module Card 3C16970 3C16950. The SuperStack II Switch 1100 is perfect for desktop connectivity, and its ability to scale to larger configurations makes it equally suited for handling hub aggregation. A single device can support up to 6,000 MAC addresses. Likewise, the SuperStack II Switch 3300 is suitable for handling desktop, hub, and switch aggregation in large networks. A single device can support up to 12,000 MAC addresses. The SuperStack II Switch 1100 is available in 12- and 24-port versions and features two built-in auto-sensing 10/100 Fast Ethernet ports; the SuperStack II Switch 3300 is available in a 24-port version. All models have a matrix port on the rear of the unit that enables high-speed connection to other SuperStack II Switch 1100 and Switch 3300 units.
Part Number: 3C16950
Also Included:
1 x 3C16970
Specifications:
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 |
| Status Indicators | Port status, power, link/activity |
| Cabling Type | Ethernet 100Base-TX, Ethernet 10Base-T |
| Features | stackable, switching |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Ports Qty | 24 |
| Manageable | Yes |
| Remote Management Protocol | RMON, SNMP |
| Communication Mode | full-duplex, half-duplex |
| Voltage Required | AC 110/220 V |
| Voltage Required Margin | ± 10% |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | 47/63 Hz |
| Power Consumption Operational | 135 Watt |
