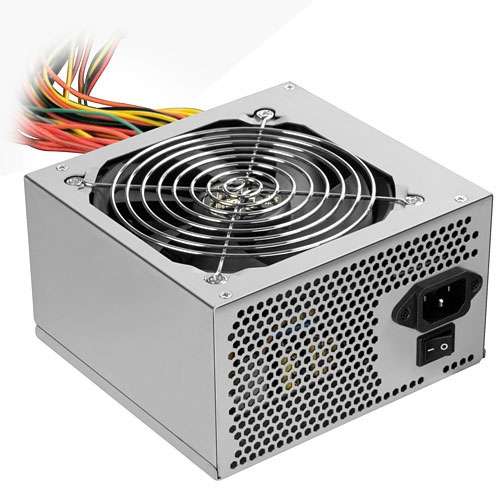

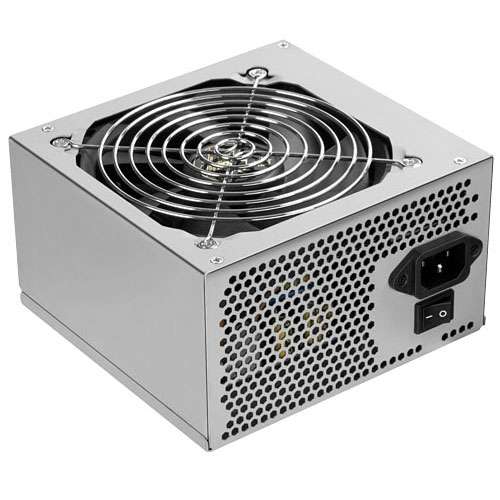

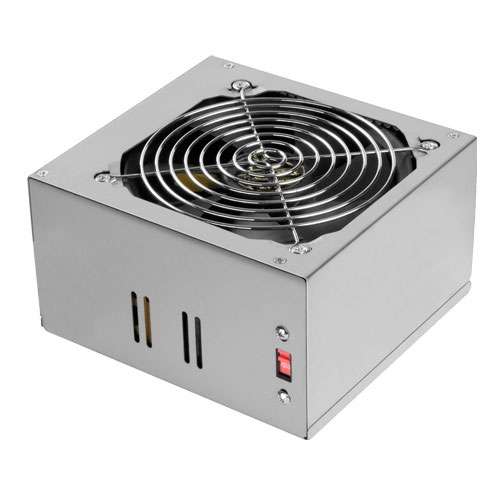

400 Watt ATX Power Supply For Case
Description
400Watt 12V Power Supply For Case. Ascendtech offers the highest possible value at incredible prices backed by award winning personal service. Get the Ultra Lifetime Series 400W Power Supply for an affordable, cost-efficient solution to operate your PC. With a 77% energy efficiency rating, it delivers 400W of power through connected interfaces, including a 20+4 Pin motherboard connector, a 6-pin PCI Express connector and a SATA power connector. It can keep up with long hours of continuous computer activities, thanks to its 120mm fan, and protects against short circuits and sudden electrical jolts. For efficient and reliable power operation, choose the Ultra Lifetime Series 400W Power Supply.
Features:
- 120mm Fan - Thermostatically controlled fans for low acoustic noise.
- Short Circuit Protection, In-Rush Current Protection,Thermal Overload Cutoff Protection, Over-Temperature, Over-Voltage, Over-Current, Under Voltage
- Meets ATX v2.2, V1.3 and ATX 12V v2.2 Specifications

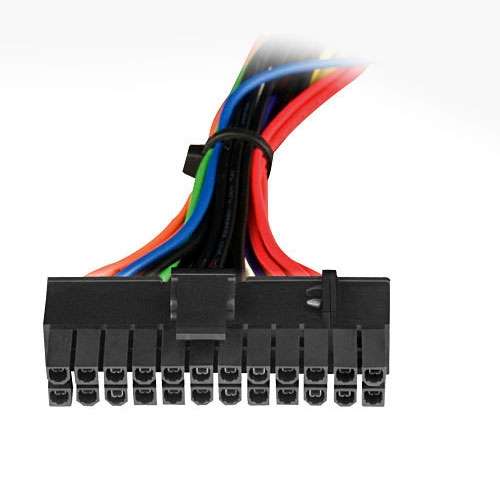

- 20/24 Pin Motherboard Connector, 2 SATA Connectors, PCI Express Connector
Specifications:
| Form Factor | ATX |
|---|---|
| Wattage | 400W |
| Modular Cabling | No |
| Energy Efficiency | 77% |
| Fan | 120 mm |
| Input Voltage | 115 ~ 230 |
| +3.3V | 18 A |
| +5V | 28 A |
| +12V 1 | 20 A |
| -12V | 0.6 A |
| +5VSB | 2.0 A |
| Dimensions | 3.34" (85mm) H x 5.90" (150mm) D x 5.51" (140mm) W |
| Motherboard Connector | 20+4 Pin |
|---|---|
| 4-Pin P4 | 1 |
| 4-Pin/8-Pin EPS Connector | 1 |
| 6-Pin PCI-Express Connector | 1 |
| 4-Pin Floppy Connector | 1 |
| 4-Pin Peripheral Connector | 4 |
| SATA Power Connector | 2 |
