56k V.92 Half-Height Pci Modem Gateway

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

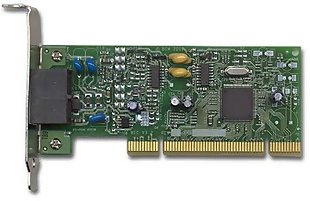

56K V.92 Half-Height Pci Modem Gateway. Model: 6002241 Low Profile
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MDIGW6002241
Brand Gateway
Model 6002241 Low Profile
Category Internal Modems

Description

56K V.92 HALF-HEIGHT PCI MODEM Gateway Palmer Part # 6002241 LOW Profile

  • Optimized V.92/V.90 connection performance over the full range of available circuit models.
  • Group III facsimile.
  • Full voice features, including Telephone Answering Device (TAD), full and half duplex speakerphone, and line status detection and reporting in all modes of operation.
  • Fully optimized worldwide Data Access Arrangement (DAA).
  • Compatibility with BVRP PhoneTools software.
    •
Specifications
Data modulation ITU-T V.92, V.90, V.34 Annex A (including SRC), V.32bis, V.32, V.22bis, V.22, V.21, Bell 212A and 103
Fax modulation ITU-T V.17, V.21, V.27ter, V.29, V.34 Half Duplex Controlled by Annex B/T.31
Fax standards Class 1 (TIA 578-A), Class 1.0 ITU T.31, Class 2.0 ITU T.32 (TIA 592)
Error correction ITU-T V.42, MNP Levels 2 - 4
Data compression ITU-T V.44, ITU-T V.42bis, MNP Level 5
Command set Hayes AT, V.250, V.251, V.253 (voice)
Synchronous protocols V.80
Adaptive connection/call control V.25ter, V.8, and V.8bis
Diagnostics V.54, &T, with local analog, remote digital, with and without self-test
Microsoft certification Compliant with WHQL 1.1 (PC99) and WHQL 2.0 (PC2001) standards
Operating Systems Microsoft Windows® 98 SE, Windows NT® 4.0, Windows Me, Windows 2000, Windows XP
Bus PCI, meets the PCI 2.2 specification
I/O connectors One RJ-11 connector to connect to the telephone line
One RJ-11 connector to connect to a telephone or other device
Operating environment
  • Temperature: 0 to 55° C
  • Altitude: 10,000 feet
  • Humidity: 5 to 85%, non-condensing
Non-operating environment
  • Temperature: –40 to 80° C
  • Altitude: 40,000 feet
  • Humidity: 15 to 98%, non-condensing
Mean time between failures Equal to or greater than 500,000
Power Management Supports the ACPI 1.0b power management standard and Wake on Ring
Emissions
  • US/Canada: FCC Part 15 Class B, IECS 003 (Latest Issue)
  • Europe: EN 55022: 1998 Class B/CISPR22:1997 (for test procedures only)
Safety UL 1950 3rd Edition, CAN/CSA C22.2 No.950
Telecommunication FCC Part 68, IC CS-03

Please click here to download drivers and software!
