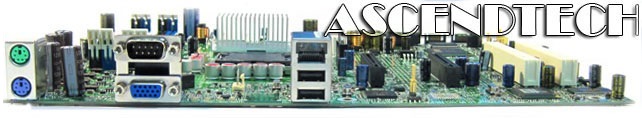

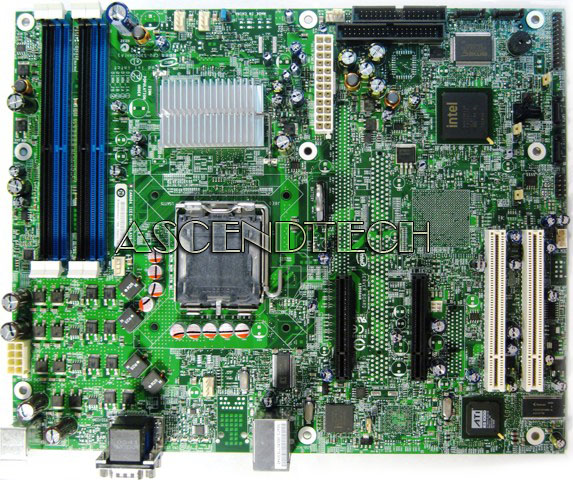

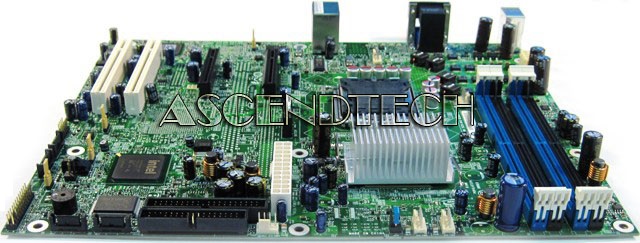

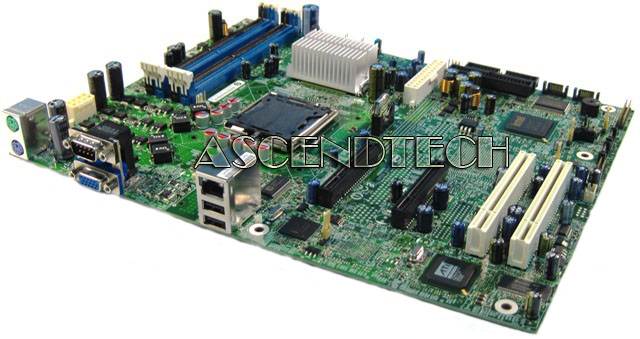

Acer Altos G330 MB.R2609.001 Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description
Acer Altos G330 Intel S3000AH MB.R2609.001 Server Motherboard meets the current and future demands of high performance, power embedded computing, making it ideal for business use.
Manufacturer: Acer
Manufacturer Part Numbers: D52072-208 MB.R2609.001 MBR2609001 S3000AHV
Compatible models: Acer Altos G330 servers
Specifications:
| Feature | Description |
|---|---|
| Processor/Cache | Single Dual-Core Intel® Xeon® 3000 sequence, Intel® Pentium® D, Intel® Pentium® 4, or Intel® Celeron® D processor Quad-core processors supported Front-side bus: 533/800/1066 MHz |
| Memory | Four Unbuffered DDR2 667 ECC DIMMs Supporting: Dual-channel memory bus 512 MB to 2 GB DIMMs for up to 8 GB of total system memory |
| Host Disk Controller | Integrated 4-port SATA software with RAID 0, 1, 10 and 5 support |
| Video | Integrated ATI ES1000 with 16 MB of VRAM |
| Network Interface Controller | Integrated single Gigabit Ethernet |
| Expansion Slots | One PCI Express® X8 slot (X8 throughput) One PCI Express® X8 slot (X4 throughput) Two 32-bit, 33 MHz (3.3 V) PCI slots |
| I/O Connections | Two PS/2 ports Four USB 2.0 ports (two front accessible) One serial port One Ethernet (RJ-45) port One VGA port |
| Supported Operating Systems | Microsoft® Windows® Server 2003 Enterprise R2 x64 Edition Microsoft® Windows® Server 2003 Enterprise R2 Edition Microsoft® Windows® Server 2003 Standard R2 x64 Edition Microsoft® Windows® Server 2003 Standard R2 Edition Microsoft® Windows® Small Business Server 2003 R2, Standard Edition Microsoft® Windows® Small Business Server 2003 R2, Premium Edition Red Hat® Enterprise Linux 4.0 (EM64T) Red Hat® Enterprise Linux 4.0 Novell® SUSE® Linux Enterprise Server 9 (EM64T) Novell® SUSE® Linux Enterprise Server 9 Novell® NetWare® 6.5 |
