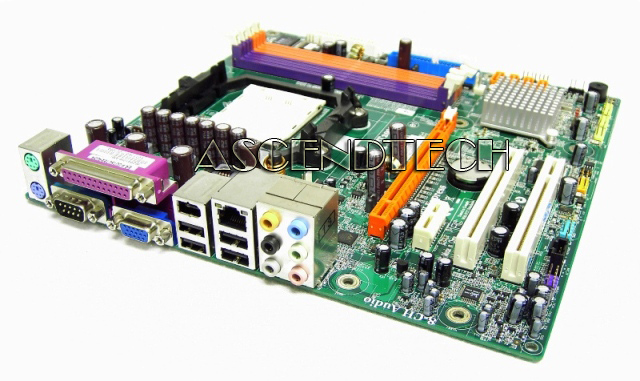

Acer ASE380 Motherboard MB.P3809.003

Acer ASE380 Motherboard MB.P3809.003. Acer motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Compatible Part Numbers: MB.P3809.003 MBP3809003 MB.P3807.001 MBP3807001
Compatible with Acer: T180 ASE380 E380

Specifications:

CPU:
Socket AM2

GRAPHICS:
On Chip (NVIDIA GeForce6150-based. 2D/3D graphic engine)
Share Memory: Maximum up to 256MB

MEMORY:
4 DDR2 Memory DIMMS
Dual-channel DDR2 memory architecture
Support DDR2 800/667/533/400 DDR2 SDRAM

EXPANSION SLOTS:
1 x PCI Express x16 slot (also runs in x8 mode)
1 x PCI Express x1 slot
2 x PCI slots

STORAGE:
Support by NVIDIA GeForce 6150
2 x Ultra DMA133/100/66 devices
4 x Serial ATA2 devices

AUDIO:
8-channel audio
Compliant with HD specification

LAN:
10/100/1000MBPS Gigabit Lan

REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Serial port (COM1)
1 x VGA port
1 x RJ45 LAN connector
4 x USB ports
1 x FireWire
1 x Audio port (Line-in, Line-out, Mic-in.......)

INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
1 x IDE connector
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x COM2 header (optional)
1 x Front panel switch
