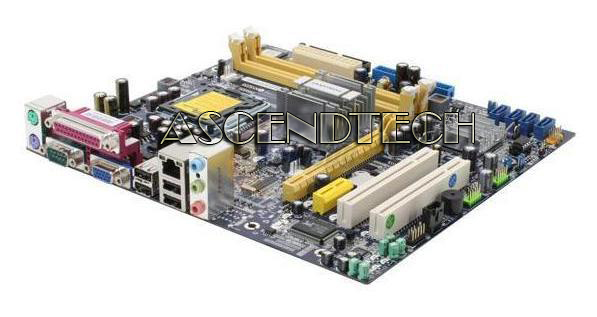

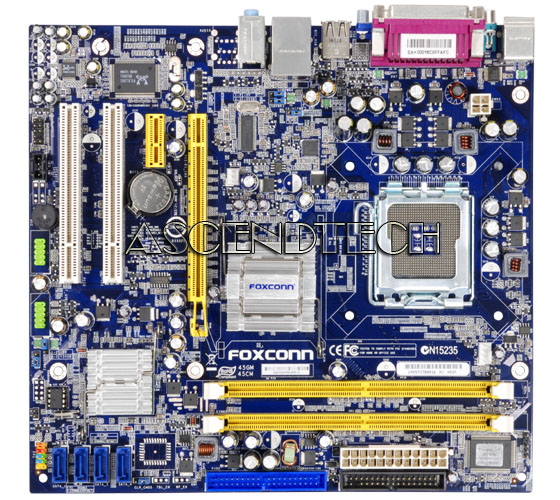

Acer Aspire M1620 MBSAA09002 Motherboard
Actual product may vary.
Description

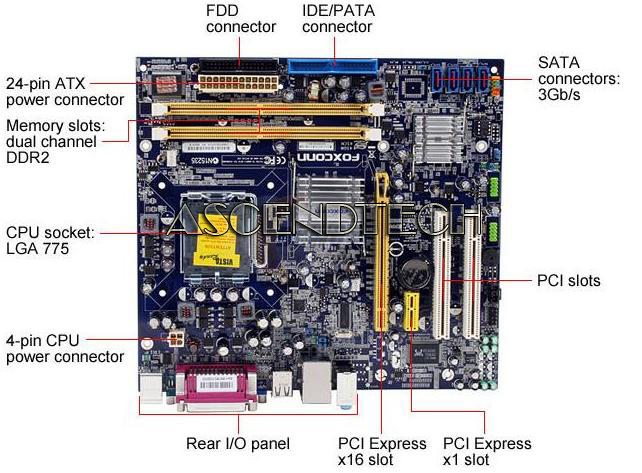

Acer Aspire M1620 Intel Socket LGA 775 45CM-S MB.SAA09.002 Motherboard. This micro-ATX motherboard is based around Intel's 945GC + ICH7 chipsets, it supports Intel LGA 775 socket Core 2 Duo and Dual-Core processors as well as Pentium D and Celeron D CPUs with a front side bus of 800 Mhz with 1066 Mhz speeds achievable through overclocking. A pair of 240-pin sockets allows you to install up to 4GB of DDR2 memory with dual channel support.
Manufacturer: Acer
Manufacturer part number: MB.SAA09.002 MBSAA09002 45CM-S
Compatible models: Acer Aspire M1620
Features:
- Intel® Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core, Pentium® D, Pentium® 4, Celeron® D, Celeron® processors, Socket T (LGA775)
- 1066(oc*)/800/533MHz (FSB)
- Dual Channel DDR2 400/533/667 x 2 DIMMs, Max. 4GB
- 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
- ATA x 1, SATA II x 4
- 5.1 channel Audio
- 10/100M LAN
- 8 USB 2.0 ports
Specifications:
Processor: Intel® Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core, Pentium® D, Pentium® 4, Celeron® D, Celeron® processors, Socket T (LGA775)
Chipset: Intel 945GC + ICH7
Front Side Bus: 1066(oc*) / 800 / 533 MHz FSB
Memory: Dual Channel DDR2 667/533/400 x 2 DIMMs, Max. 4GB
VGA on Die: Integrated
Expansion Slots: 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
IDE: ATA 100 x 1
Serial ATA(SATA)/RAID: SATAII x 4
Audio: 5.1 HD Audio with Realtek ALC883
LAN: 10/100M LAN, Realtek RTL8100C

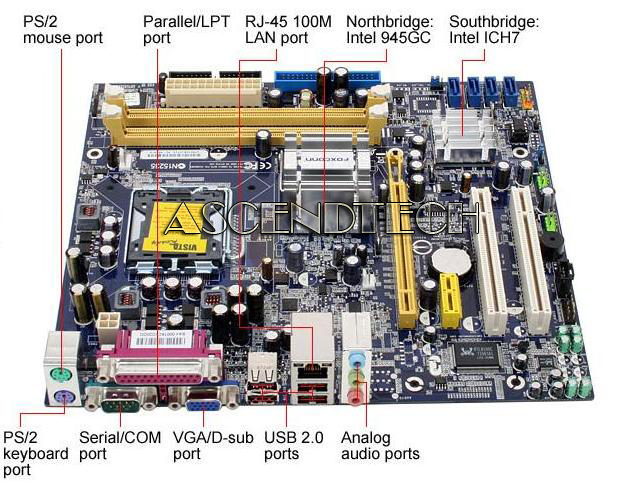

Back Panel I/O Ports:
1 set 5.1 channel Audio jacks (3 jacks)
1x Parallel port
1x VGA port
1x PS/2 keyboard port
1x PS/2 mouse port
4x USB 2.0 ports
1x RJ45 LAN jack
1x Serial port
Internal I/O Connectors:
24-Pin power connector
4-pin 12V power connector
CPU Fan / System Fan connectors
1x CD-in connector
1x IDE connector
1x IRDA
1x Buzzer
1x Front Panel connector
2x USB 2.0 connectors support additional 4 ports
1x Intel Azalia header
4x SATAII connectors
1x Speaker (Reserved)
1x S/PDIF Out header (Reserved)
1x Intruder header
1x Floppy connector
BIOS Features: 4Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Form Factor: Micro ATX (9.6” x 8.8”)
Click here for Acer 45CM-S MB.SAA09.002 Latest Available Drivers
CPU Support List
CPU Name | Core | Cpu No. | FSB (Mhz) | L2 Cache | Wattage |
Intel Celeron 1.6G | Conroe-L | 420 | 800 | 512KB | 35W |
Intel Celeron 1.8G | Conroe-L | 430 | 800 | 512KB | 35W |
Intel Celeron 2.0G | Conroe-L | 440 | 800 | 512KB | 35W |
Intel Celeron 2.2G | Conroe-L | 450 | 800 | 512KB | 35W |
Intel Celeron® D 2.53G | Prescott | 326 | 533 | 256KB | 84W |
Intel Celeron® D 2.66G | Prescott | 331 | 533 | 256KB | 84W |
Intel Celeron® D 2.8G | Prescott | 336 | 533 | 256KB | 84W |
Intel Celeron® D 2.93G | Prescott | 341 | 533 | 256KB | 84W |
Intel Celeron® D 3.06G | Prescott | 345J | 533 | 256KB | NA |
Intel Celeron® D 3.06G | Prescott | 346 | 533 | 256KB | 84W |
Intel Celeron® D 3.06G | Cedar Mill | 347 | 533 | 512KB | 65W |
Intel Celeron® D 3.06G | Cedar Mill | 347 | 533 | 512KB | 86W |
Intel Celeron® D 3.2G | Prescott | 351 | 533 | 256KB | 84W |
Intel Celeron® D 3.2G | Cedar Mill | 352 | 533 | 512KB | 65W |
Intel Celeron® D 3.33G | Prescott | 355 | 533 | 256KB | 73W |
Intel Celeron® D 3.33G | Cedar Mill | 356 | 533 | 512KB | 65W |
Intel Celeron® D 3.46G | Cedar Mill | 360 | 533 | 512KB | 65W |
Intel Celeron® D 3.6G | Cedar Mill | 365 | 533 | 512KB | 65W |
Intel Celeron® Dual-core 2.4G | Conroe | E1600 | 800 | 512KB | 65W |
Intel Core™2 Duo 1.8G | Conroe | E4300 | 800 | 2MB | 65W |
Intel Core™2 Duo 2.0G | Conroe | E4400 | 800 | 2MB | 65W |
Intel Core™2 Duo 2.2G | Conroe | E4500 | 800 | 2MB | 65W |
Intel Core™2 Duo 2.4G | Conroe | E4600 | 800 | 2MB | 65W |
Intel Core™2 Duo 2.6G | Conroe | E4700 | 800 | 2MB | 65W |
Intel Core™2 Duo 1.86G | Conroe | E6300 | 1066 | 2MB | 65W |
Intel Core™2 Duo 1.86G | Conroe | E6320 | 1066 | 4MB | 65W |
Intel Core™2 Duo 2.13G | Conroe | E6400 | 1066 | 2MB | 65W |
Intel Core™2 Duo 2.13G | Conroe | E6420 | 1066 | 4MB | 65W |
Intel Core™2 Duo 2.4G | Conroe | E6600 | 1066 | 4MB | 65W |
Intel Core™2 Duo 2.66G | Conroe | E6700 | 1066 | 4MB | 65W |
Intel Core™2 Extreme 2.93G | Conroe | X6800 | 1066 | 4MB | 75W |
Intel Pentium Dual-core 1.6G | Conroe | E2140 | 800 | 1MB | 65W |
Intel Pentium Dual-core 1.8G | Conroe | E2160 | 800 | 1MB | 65W |
Intel Pentium Dual-core 2.0G | Conroe | E2180 | 800 | 1MB | 65W |
Intel Pentium Dual-core 2.2G | Conroe | E2200 | 800 | 1MB | 65W |
Intel Pentium Dual-core 2.4G | Conroe | E2220 | 800 | 1MB | 65W |
Intel Pentium® 4 2.66G | Prescott | 505 | 533 | 1MB | 84W |
Intel Pentium® 4 2.8G | Prescott | 511 | 533 | 1MB | 84W |
Intel Pentium® 4 2.93G | Prescott | 515 | 533 | 1MB | NA |
Intel Pentium® 4 3.06G | Prescott | 524 | 533 | 1MB | 84W |
Intel Pentium® 4 3.4G | Prescott | 551 | 800 | 1MB | NA |
Intel Pentium® 4 3.0G | Prescott | 630 | 800 | 2MB | 84W |
Intel Pentium® 4 3.0G | Cedar Mill | 631 | 800 | 2MB | 65W |
Intel Pentium® 4 3.0G | Cedar Mill | 631 | 800 | 2MB | 86W |
Intel Pentium® 4 3.2G | Prescott | 640 | 800 | 2MB | 86W |
Intel Pentium® 4 3.2G | Cedar Mill | 641 | 800 | 2MB | NA |
Intel Pentium® 4 3.4G | Prescott | 650 | 800 | 2MB | 84W |
Intel Pentium® 4 3.4G | Cedar Mill | 651 | 800 | 2MB | 65W |
Intel Pentium® 4 3.4G | Cedar Mill | 651 | 800 | 2MB | NA |
Intel Pentium® 4 3.6G | Cedar Mill | 661 | 800 | 2MB | 86W |
Intel Pentium® D 2.66G | Smithfield | 805 | 533 | 1MB*2 | 95W |
Intel Pentium® D 2.8G | Smithfield | 820 | 800 | 1MB*2 | 95W |
Intel Pentium® D 2.8G | Presler | 915 | 800 | 2MB*2 | 95W |
Intel Pentium® D 2.8G | Presler | 920 | 800 | 2MB*2 | 95W |
Intel Pentium® D 3.0G | Presler | 925 | 800 | 2MB*2 | 95W |
Intel Pentium® D 3.0G | Presler | 930 | 800 | 2MB*2 | 95W |
Intel Pentium® D 3.0G | Presler | 930 | 800 | 2MB*2 | NA |
Intel Pentium® D 3.2G | Presler | 935 | 800 | 2MB*2 | 95W |
Intel Pentium® D 3.2G | Presler | 940 | 800 | 2MB*2 | 95W |
Intel Pentium® D 3.4G | Presler | 945 | 800 | 2MB*2 | 95W |
Intel Pentium® D 3.4G | Presler | 945 | 800 | 2MB*2 | NA |
Intel Pentium® D 3.4G | Presler | 950 | 800 | 2MB*2 | 95W |
Intel Pentium® D 3.6G | Presler | 960 | 800 | 2MB*2 | NA |
