Acer Aspire M3203 MB.SAQ09.005 M Board

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

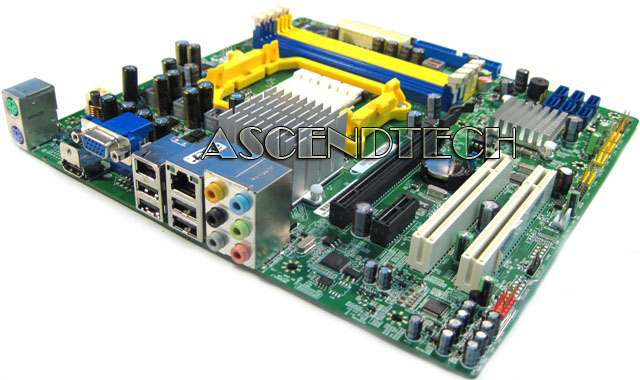

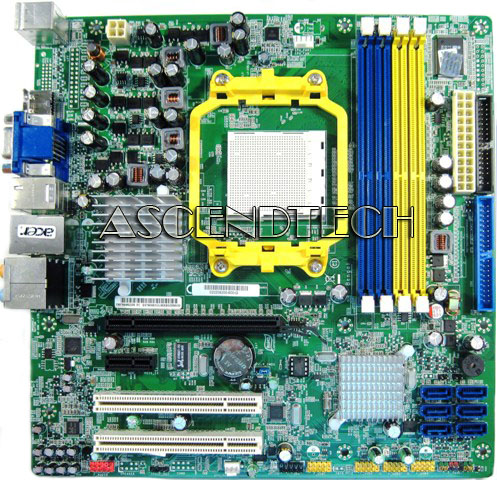

Acer Aspire M3203 Mb.Saq09.005 M Board. Model: Rs780m03a1-8Eksmh
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64AMBSAQ09005
Brand Acer
Model RS780M03A1-8EKSMH
Category Amd Socket Am2+ Am3 Motherboards

Description

Acer Aspire M3203 Desktop PC Systems MB.SAQ09.005 Motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Manufacturer: Foxconn (for Acer)
Manufacturer Part Numbers: MB.SAQ09.005 RS780M03A1-8EKSMH MBSAQ09005
Compatible Model Numbers: Acer Aspire M3203 Desktop PC Systems


Specifications:

Form FactorMicroATX 244 mm × 244 mm
Processor SupportSupports AMD® Socket AM2 (940 pin), AMD Phenom™ (95 W), Athlon™ 64 X2, Athlon 64, and Sempron™ processors
Chipset
  • Northbridge: RS780
  • Southbridge: SB700
    • System Bus SupportHT3 / HT1
    Memory SupportFour DDR2 800/667 MHz slots support up to 8 GB system memory
    VideoIntegrated video

    AudioIntegrated ALC888S HD codec 7.1
    Network SupportIntegrated Marvell 8071 / 8075 10/100/1000 Mbps LAN
    Add-In Card Slots
  • One PCI Express ×16
  • One PCI Express ×1
  • Two PCI conventional

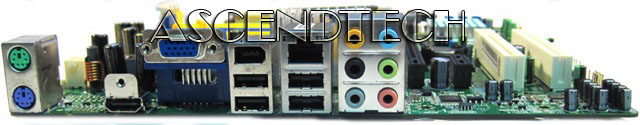

    • Rear Panel I/O Ports
  • One PS/2 keyboard port
  • One PS/2 mouse port
  • One HDMI port (option with DVI-D)
  • One VGA monitor port
  • One IEEE 1394 port
  • Four USB 2.0 ports
  • One RJ-45 LAN port
  • Six audio jacks
    • Internal Connecters
  • Six serial ATA II connectors
  • One floppy disk drive connector
  • One primary IDE connector
  • One 24-Pin power connector with full ridge
  • One 4-Pin power connector
  • One IEEE 1394 connector (2 × 5)
  • Four 2-port USB 2.0 connectors (2 × 5)
  • One SPDIF out connector (1 × 4)
  • One front audio connector (2 × 5)
  • One front panel connector (2 × 7)
  • One TPM connector (2 × 10)
  • One parallel port connector (2 × 13)
  • One 3-pin smart fan CPU fan connector
  • One 3-pin smart fan with linear circuit system fan connector
  • Clear CMOS jumper

    •
