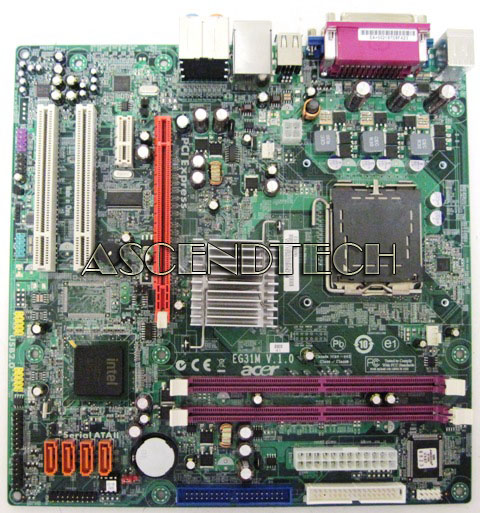

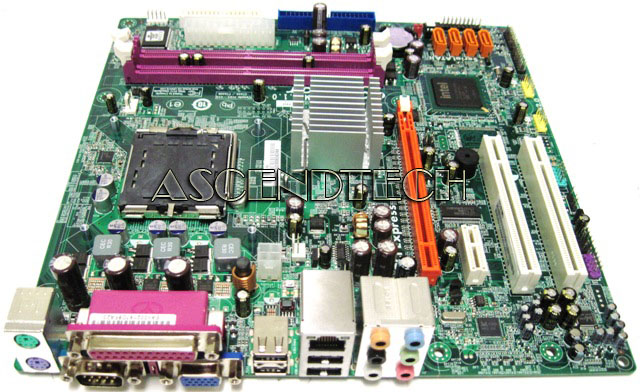

Acer Aspire M5630 MBSA509009 Motherboard

Acer Aspire M5630 EG31M MB.SA509.009 MBSA509009 Motherboard. Acer motherboard meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Manufacturer: Acer
Part Numbers: MB.SA509.009 MBSA509009 EG31M

Specifications:

Chipset Model: G31 Express
Total Processor Support: 1
Processor Socket: Socket T LGA-775
Processor Support: Core 2 Duo
Front Side Bus: 800 MHz, 1333 MHz, 1066 MHz
Number of Memory Slots: 2
Maximum Memory: 4 GB
Memory Technology: DDR2 SDRAM
Number of Total Expansion Slots: 4
Number of PCI Slots: 2
Total Number of PCI Express Slots: 2
Number of IDE Interfaces: 1
Number of SATA Interfaces: 4
Total Number of USB Ports: 4
Network: RJ-45
Total Number of Onboard USB Ports: 2
Form Factor: Micro ATX
Width: 9.61"
Depth: 8.27"
Green Compliance: Yes
Green Compliance Certificate/Authority: RoHS

Compatible Models: Acer Aspire 6930 Series
