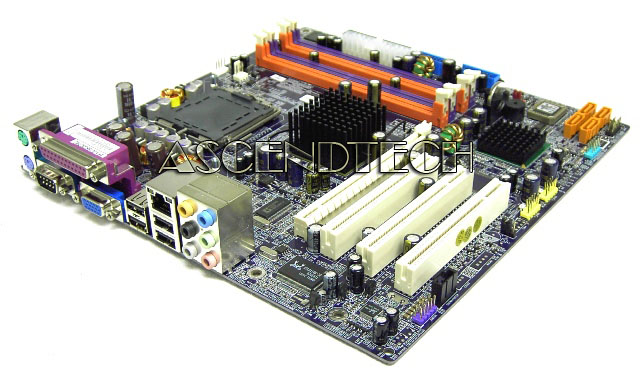

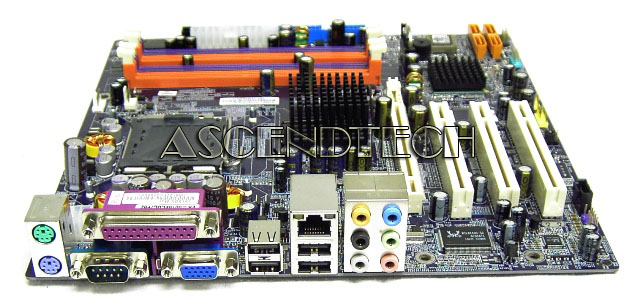

Acer Aspire T680 SK30 MB.P2809.002 Board

Acer Aspire T680 Acerpower SK30 MB.P2809.002 MBP2809002 915GV-M3 System Motherboard. Acer motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Acer Part Number: MB.P2809.002 MBP2809002
Compatible Part Numbers: 89-380-H88122 89-380-H88127
Manufacturer's Model Number: 915GV-M3
Compatible Models: Acer Aspire T680  Acerpower SK30

Specifications:

CPU
• Supports Intel Pentium 4 LGA775
• Supports 533/800MHz FSB
• Supports Intel Celeron D in LGA 775
• Supports 2005 FMA CPU VR Design
• Supports 4 pin CPU Fan Pin-Header with Fan Speed Control
Chipset
Intel® Grantsdale 915GV Chipset
• Supports FSB 800MHz
• Support Dual channel DDRII 400/533 memory interface upto 2GB
• Support PCI Express 16X interface
• Integrated Graphics Controller
Intel® ICH6 Chipset
• Integrated Hi-Speed USB 2.0 controller, 480Mb/sec, 8 ports
• 4 Serial ATA/150 ports
• 1 channel Ultra ATA 100 bus Master IDE controller
• PCI Master v 2.3, I/O ACPI 2.0 Compliant
• Integrated AHCI controller
FSB
• Support 800/533MHz FSB
Main Memory
• Supports 2 unbuffered DIMM of 1.8 Volt DDR II SDRAM without ECC
• Supports up to 2GB memory size
• Support Dual Channel DDRII 400/533MHz
Slots
• One PCI Express Liteslot
• Three PCI 2.2 32-bit Master PCI Bus slots. (support 3.3v/5v PCI bus interface)
On-Board IDE
One Ultra DMA 66/100 IDE controller integrated in ICH6
• Supports PIO, Bus Master operation modes
• Can connect up to 2 Ultra ATA drives
Serial ATA 150 controller integrated in ICH6
• Up to 150MB/s transfer speed
• Can connect up to 4 Serial ATA drives
• Supports ACHI controller
• Supports SATA hot plug
On-Board Peripherals
• 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
• 1 Serial port (COM A)
• 1 VGA port
• 1 parallel port supports SPP/EPP/ECP mode
• 8 USB 2.0 ports (Rear x 4/** Front x 4)(** Frotn USB ports are supported by pin-out)
• 1 Line-In/Line-Out / Mic-In / Rear speaker out / center-subwoofer speaker out / SPDIF out audio port
• 2 PS/2 connectors
• 1 LAN RJ45 connector
Audio
• AC97 link controller integrated in ICH6
• Realtek ALC850 8 channels audio codec
- Meet PC2001 audio performance requirement
- Compliance with AC97 v2.3 spec.
LAN
Realtek RTL 8110C
• Integrated Fasted Ethernet MAC and PHY in one chip
• Supports 10/100 Mb/s
• Compliance with PCI 2.2
• Supports ACPI Power Management
BIOS
• 4Mb FWH
• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically
• The mainboard provides a Desktop management Interface (DMI) function which records your mainboard specifications.
Dimensions
8.46 in. (L) x 9.65 in.(W) Micro-ATX Form Factor
