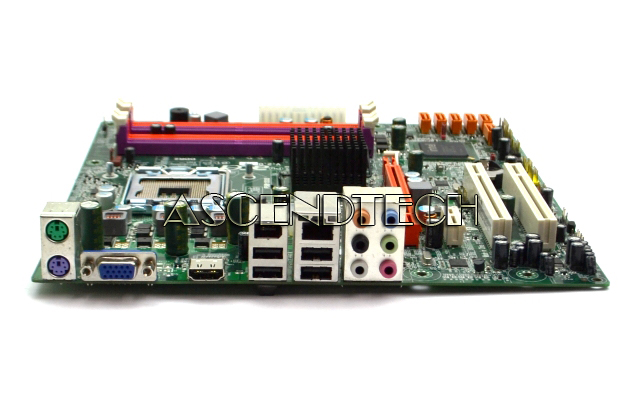

Acer ECS G43T-AM V:2.0 Mboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBACRMBSCQ07002
Brand Acer
Model MB.SCQ07.002 G43T-AM
Category Intel Lga775 Motherboards
Condition Like New Grade A
Condition Description Please note, Motherboard only! No I/O Shield also known as a Backplate or any other accessories!
Description
Acer Aspire M3802 M5800 Series ECS G43T-AM V:2.0 Intel Chipset G43 Socket LGA775 DDR2 Micro ATX Motherboard MB.SCQ07.002 15-V76-012000.
ECS Model Number: G43T-AM V:2.0
Acer Part Number: MB.SCQ07.002 MBSCQ07002
Compatible Part Numbers: 15-V76-012000
Compatible Models: Acer Aspire M3802 M5800 Series
Specifications:
Supported CPU
CPU Socket Type LGA775
CPU Type Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron 4xx processor
FSB 1333/1066/800 MHz
Chipsets
Chipset Intel G43
South Bridge Intel ICH10
Onboard Video
Onboard Video Chipset Intel GMA X4500
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR2 800/667
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x16 None
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
Onboard Audio
Audio Chipset Realtek ALC888S
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Atheros AR8121-L1E GigaLAN controller
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
Video Ports D-Sub
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
