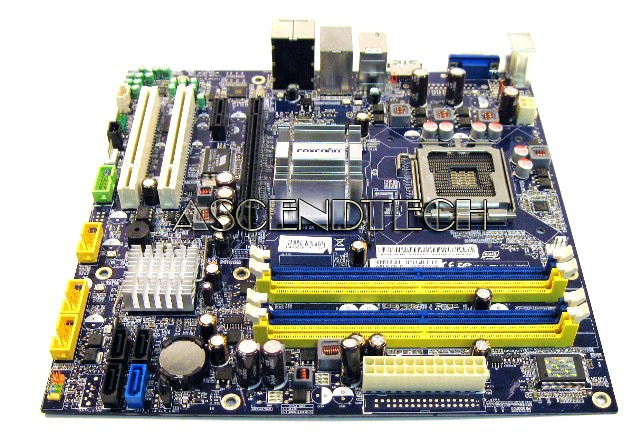

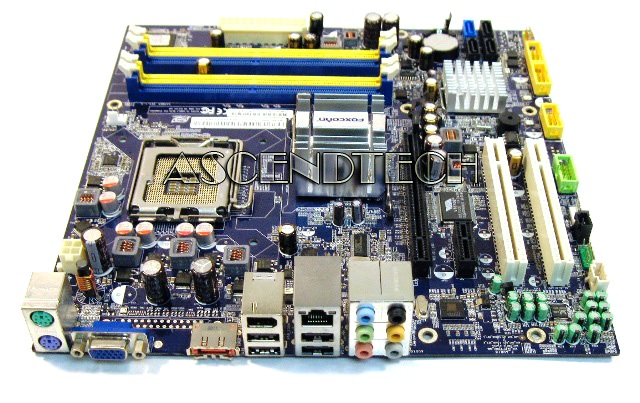

Acer G33 MB.G3209.001 Motherboard

Acer MB.G3209.001 Motherboard meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Manufacturer: Acer
Manufacturer Part Numbers: MB.G3209.001 MBG3209001 G33M0E3-8EKSOD
Compatible part numbers: 4006259R MB.G2709.002 MBG2709002 G33M05G1-8EKS G33M05G1-8EKSO G33M05G1-8EKSOD
Compatible models: Gateway LX4710 FX4710 DX4710 GT5689j DX2710 Desktop systems

Specifications:

CPU Support:
Intel E6xxx, E4xxx, Q6xxx Core™2 dual and quad core processors
Chipset Intel G33 + ICH9DH
Front Side Bus (FSB): 1333/1066/800 MHz
Memory Support:
Four DDR2 800/667/533 MHz DIMM slots
Support up to 8 GB of dual channel memory
Video:
Integrated Intel GMA 3100 graphics with 256 MB shared memory
Audio Integrated 8-Channel (7.1) High Definition Audio
Network Integrated 10/100/1000 Mbps Ethernet LAN
Add-in Card Slots:
One PCI Express ×16 (graphics interface)
One PCI Express ×1
Two PCI conventional
Internal Connectors:
One 24-pin ATX interface
One 4-pin ATX interface
Four SATA
One 4-pin AUX-in
One 4-pin speaker
Two 10-pin USB (2 × 5 pins)
One 10-pin 1394 (2 × 5 pins)
One 10-pin front audio (2 × 5 pins)
One 10-pin front panel (2 × 5 pins)
One 4-pin CPU Fan
One 4-pin SYS Fan
One 3-pin CLEAR CMOS
Rear I/O Ports:
One PS/2 keyboard port
One PS/2 mouse port
One VGA port
Four USB 2.0 ports
One RJ45 LAN port
One IEEE 1394 port
One eSATA
Six high definition 7.1 channel audio jacks
Form Factor Micro ATX
Board Size 9.6 × 9.6 inches
