Adtran NIM Interface Module 1202862L1

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

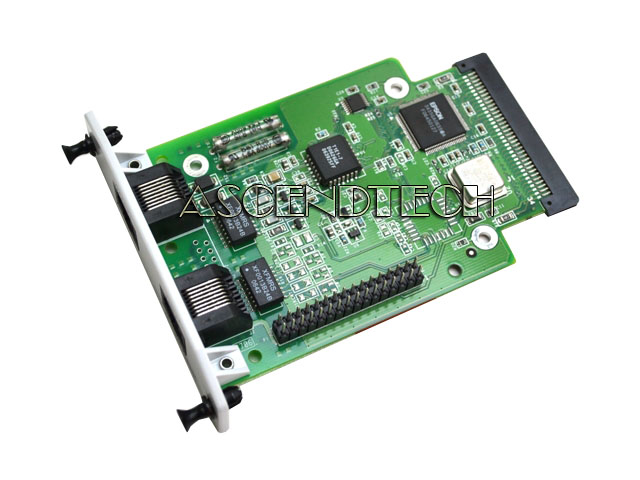

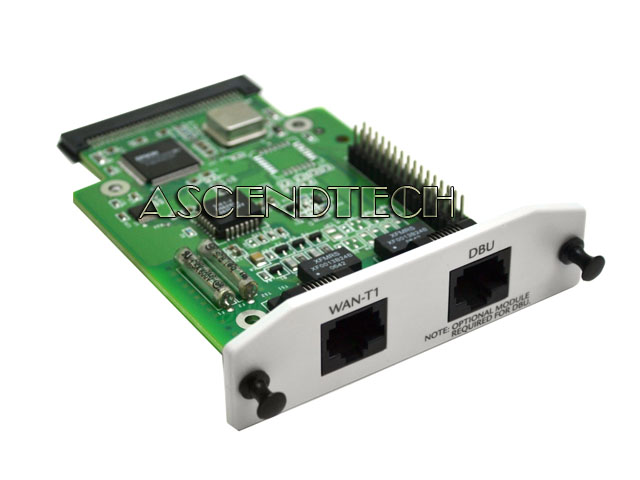

Adtran Nim Interface Module 1202862L1. Model: 5202862-1B 5202863-1C
  Enlarge
Adtran Nim Interface Module 1202862L1. Model: 5202862-1B 5202863-1C
Adtran Nim Interface Module 1202862L1. Model: 5202862-1B 5202863-1C
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code NETMDAD1202862L
Brand Adtran Netvanta
Model 5202862-1B 5202863-1C
Category Network Ethernet / Lan Cards
Condition Like New Grade A

Description

Adtran NetVanta T1/FT1 2-Port WAN-T1 DBU NIM Network Interface Module 1202862L1.

Adtran Part Number: 1202862L1
Product Line: NetVanta
Compatible Part Numbers: 5202862-1B 5202863-1C

Features:

- Integrated DSU/CSU for circuit protection
- A single RJ-48C connector for T1 connectivity
- A single RJ-45 connector activated when an optional Dial Backup Interface Module (DIM) is installed







Specifications:

Connector: RJ-48C
T1 Line Rate: 1.544 Mbps
FT1 Line Rate: DS0 Channelized (multiple of 64k)
Line Code: AMI or B8ZS
Framing: D4 (SF) or ESF
Input Signal: 0 to -36 dB (DS-1)
Line-Build-Out: 0, 7.5, 15, 22.5 dB, Auto
Timing derived from WAN or internal
