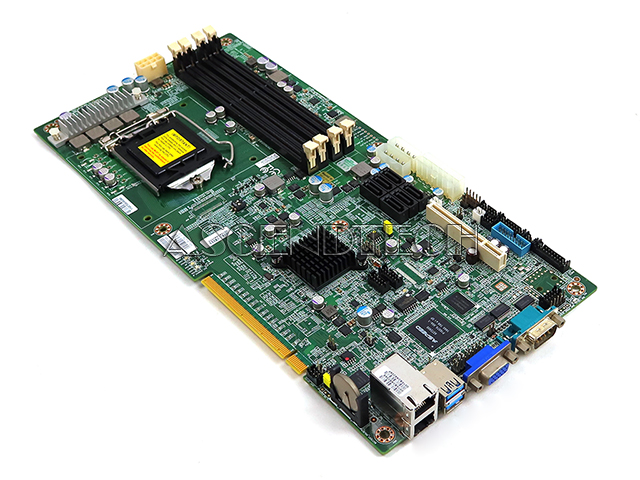

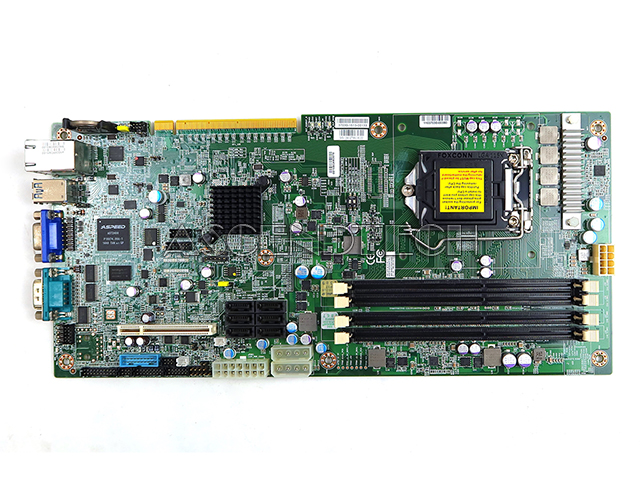

AIC Intel IPC-MB-ARA Server Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBSEAAUPC226101
Brand Aic Inc.
Model IPC-MB-ARA
Part Number PSG-M-AAUPC226-101
Series/Family Ara
Compatible Part Numbers B48-STI2F03G00C01A BPC-B48STI20XXC00A 505-15012700110133 37030-1513-00133 47G0121-091L
Category Intel Lga1150 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not come with rear I/O shield also known as back-plate cover or any other accessories.
Description
AIC IPC-MB-ARA Intel Chipset C226 Socket LGA1150 DDR3 SDRAM RTX Server Motherboard PSG-M-AAUPC226-101.
Chipset: Intel C226
Socket: LGA1150
Compatible/Supported CPU: Intel Xeon Processor E3-1200 v3/v4 Product Family, 4th Generation Intel Core i3 Processor, or Intel Pentium or Celeron Processor
Max Supported Memory: Up to 32GB
Number of Memory Slots: 4
Memory Type: DDR3 1866/1600/1333 MHz Unbuffer ECC/non-ECC
Speed: 5 GT/s
Bus Type: DMI
Video Chipset/GPU Model: Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
Maximum Resolution: 1920x1200
Network/Communications: Intel Ethernet Controller I210-AT, single port GbE, PCIe v2.1; Intel Ethernet Connection I217-LM, single port, 1Gbps
Connectors: 6x Internal SATA3; 1x USB internal pin-header to support 2x USB 3.0/USB 2.0

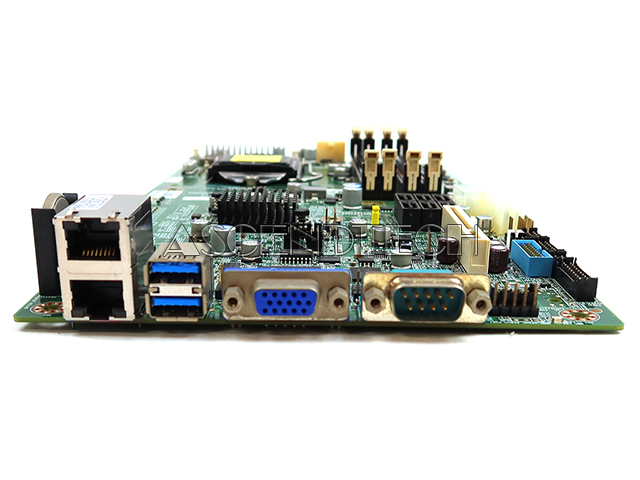

Input/Output Ports: 2x RJ-45 GigaLAN double-stack; 2x USB 3.0 double-stack Type A; 1x External VGA (DB-15); 1x Serial (DB-9)
Expansion Slots: 1x PCI-E x16 Gen 3 Gold-finger; 1x PCI-E x8 onboard slot (x4 Gen 2 mode)
Form Factor: RTX
Type: Server Motherboard
