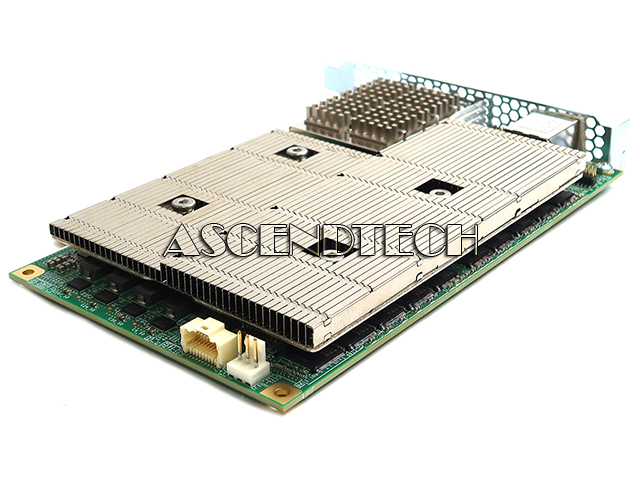

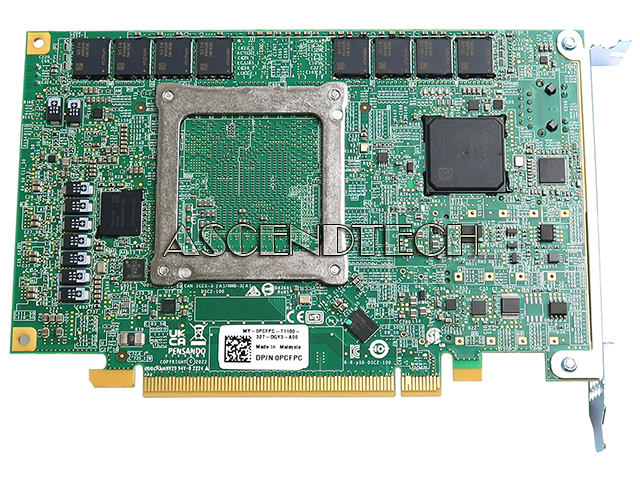

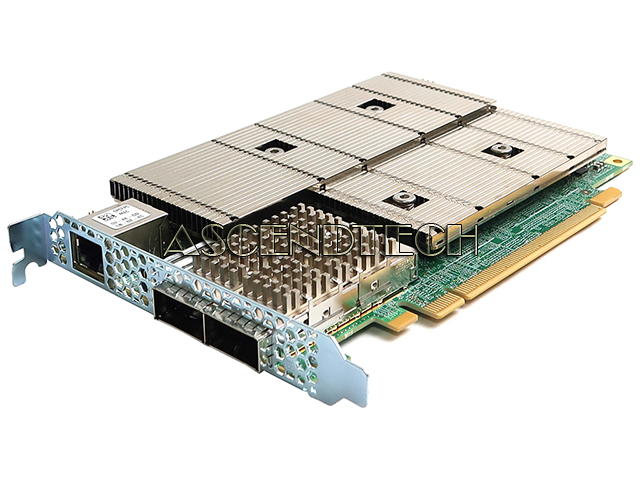

AMD Pensando DSC2-100G QSFP28 DPU PCFPC

  Enlarge
Amd Pensando Dsc2-100G Qsfp28 Dpu Pcfpc
Amd Pensando Dsc2-100G Qsfp28 Dpu Pcfpc
Amd Pensando Dsc2-100G Qsfp28 Dpu Pcfpc
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item CodeNTCRAMDDSC2100N
BrandPensando Systems Inc.
ModelDSC2-100G
Part NumberPCFPC 0PCFPC MY-0PCFPC
CategoryNetwork Ethernet / Lan Cards
ConditionBrand New

Description

Dell AMD Pensando DSC2-100G Dual Port QSFP28 100Gbps PCI-Express Gen 4 x16 Full Height Bracket DPU Data Processing Unit PCFPC 0PCFPC MY-0PCFPC.

Processor/CPU: Elba Arm A72 (08-0010-01)
Processor/CPU Speed: 3.00GHz
Number of Cores: 16
Memory Type: DDR4 SDRAM (SEC 225 K4AAG08 5WA BWCE)
Speed: 3200MHz
Error Correction (ECC): Yes
Storage Capacity: 256MB (2Gbit) QSPI flash; 64GB eMMC flash (pSLC)
Data Transfer Rate: 100Gbps
Storage Interface: QSPI; eMMC
Input/Output Ports: 2x QSFP28 (supports QSFP56 up to 100GbE); 1x RJ45
Interface: PCI-Express Gen 4 x16
Bracket/Profile Type: Full Height Bracket
Type: Data Processing Unit
