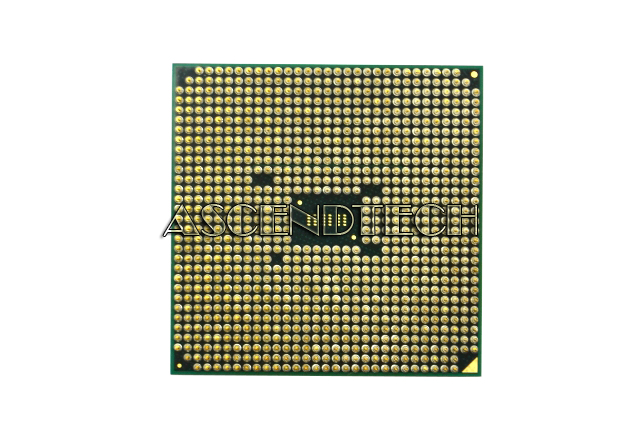

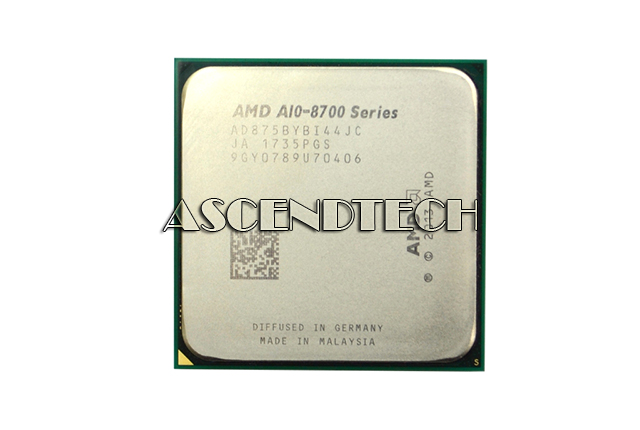

AMD PRO A10-8750B FM2+ CPU AD875BYBI44JC
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code CPUAD875BYBI44J
Model PRO A10-8750B
Part Number AD875BYBI44JC
Series/Family A10-8700 Series
Category Amd Fm2+ A-Series Apu Gpu Cpu
Condition Like New Grade A
Condition Description Please note, these units were removed from brand new desktop PCs and may show minor signs from the removal process, but are fully operational & function as intended!
Description
AMD A10-8700 Series PRO A10-8750B 3.60GHz (4.00GHz Max) 4-Core 4MB L2 Cache Socket FM2+ CPU Processor AD875BYBI44JC.
Socket: AMD Socket FM2+
Processor/CPU: AMD PRO A10-8750B
Processor/CPU Speed: 3600 MHz (4000 MHz Max Turbo)
Number of Cores: 4
L2/L3 Cache: 2 x 2 MB shared caches L2
Height: 1.57" / 4cm
Width: 1.57" / 4cm
Type: CPU / Microprocessor
Features: Business class processor; The processor can be configured to run at 45 Watt TDP; The CPU is compatible with DirectX 12 and Vulkan APIs; The graphics unit has the following software features enabled: AMD Radeon Dual Graphics and Switchable Graphics.
Additional Specifications:
| General information | |
| Market segment | Desktop |
| Package | 906-pin lidded micro-PGA package |
| Architecture / Microarchitecture | |
| Microarchitecture | Steamroller |
| Processor core | Godavari PRO |
| Core stepping | A1 |
| Manufacturing process | 0.028 micron |
| Data width | 64 bit |
| The number of threads | 4 |
| Floating Point Unit | Integrated |
| Level 1 cache size | 2 x 96 KB shared instruction caches 4 x 16 KB data caches |
| Multiprocessing | Uniprocessor |
| Extensions and Technologies |
|
| Low power features |
|
| Integrated peripherals / components | |
| Display controller | DisplayPort 1.2 / DVI / HDMI 1.4a |
| Integrated graphics | GPU Type: Radeon R7 series Shader cores: 512 Base frequency (MHz): 757 |
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-2133 Maximum memory bandwidth (GB/s): 34.1 |
| Other peripherals |
|
| Electrical / Thermal parameters | |
| Maximum operating temperature | 71.3°C |
| Thermal Design Power | 65 Watt |
