AMD SOCKET AM2 ATX SERVER MOTHERBOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

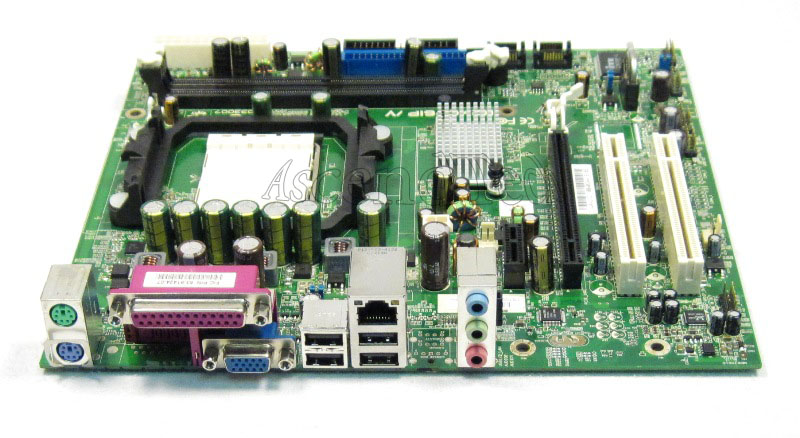

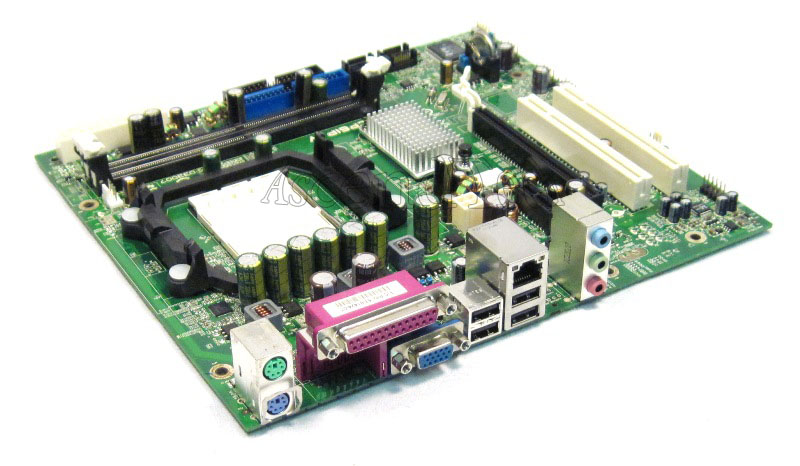

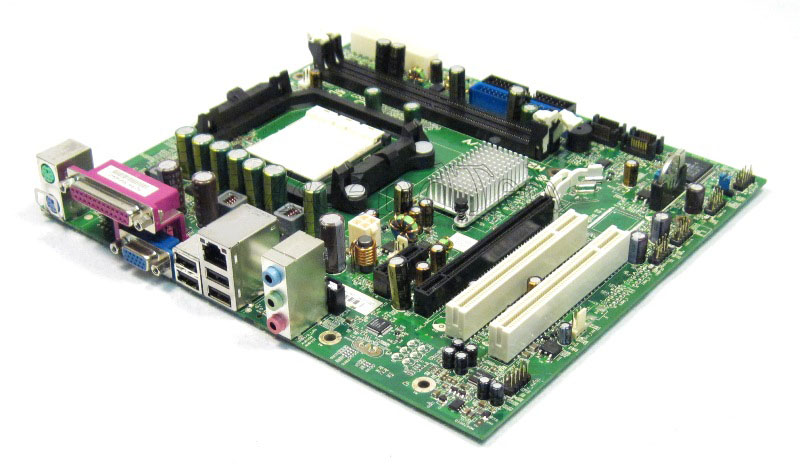

Amd Socket Am2 Atx Server Motherboard
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBAPWUNVITMSAM2
Brand House Brand
Model SOCKET AM2
Category Amd Socket Am2+ Am3 Motherboards

Description

AMD Socket AM2 Server Motherboard DDR2-800 SATA-300 PCI-Express X16 For Selected Gateway Server Models Only! Made By FIC For Gateway.

Features:

*Please Note: This Model Does Not Include Rear I/O Shield / Back-Plate Cover For Case.

  • Supports HyperTransport™ up to 2000 MT/s
  • Chipset: MCP61P
  • Two 240-pin DDR2 DIMM slots
  • Four add-in card slots:
    • One PCI Express ×16
    • One PCI Express ×1
    • Two PCI conventional
  • Integrated NVIDIA® GeForce® 6150SE nForce 430 graphics
  • Integrated Realtek High Definition Audio using the Realtek ALC 888 audio codec
  • Integrated 10/100 Ethernet LAN
  • Four Serial ATA (SATA) connectors
  • Four external USB 2.0 ports with three additional internal headers providing 10 possible USB 2.0 ports

Download Drivers Here

Specifications:

Packaging:OEM / Bulk - Motherboard Only
Form FactoruATX 9.6 inches × 8.6 inches
System Bus SupportUp to 2000 Mhz
Memory SupportTwo DDR2 400/533/667/800 MHz SDRAM slots
Support up to 2 GB system memory
VideoIntegrated NVIDIA® GeForce® 6150SE nForce 430 graphics

AudioIntegrated Realtek High Definition Audio using the Realtek ALC 888 audio codec
Network SupportIntegrated 10/100 MB LAN
Add-In Card Slots
  • One PCI Express ×16
  • One PCI-E ×1
  • Two PCI Conventional
    • Rear Panel I/O Ports
  • PS/2 keyboard port
  • PS/2 mouse port
  • Four USB 2.0 ports
  • One parallel port
  • One VGA monitor port
  • One RJ-45 LAN port
  • Three audio jacks
    • Internal Headers
  • Three 2-port USB 2.0 headers (2 × 5)
  • One Front panel audio header (mic / headphone)
  • One front panel header (2 × 5 supports power LED, power switch, hard drive LED, and reset switch)
  • One Floppy disk drive connector
  • One Primary IDE connector
  • Four Serial ATA II connectors (3 GB/s)
  • One Clear CMOS jumper
  • One Main Power Connector 24-pin (2 × 12)
  • One 12V CPU power connector 4-pin
  • One 4-pin CPU fan connector
  • One 3-pin system fan connector
  • One 3-pin power fan connector
  • One CD-In connector

    •
