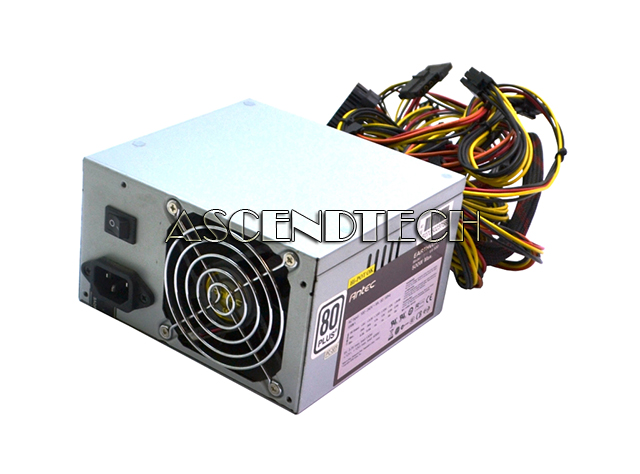

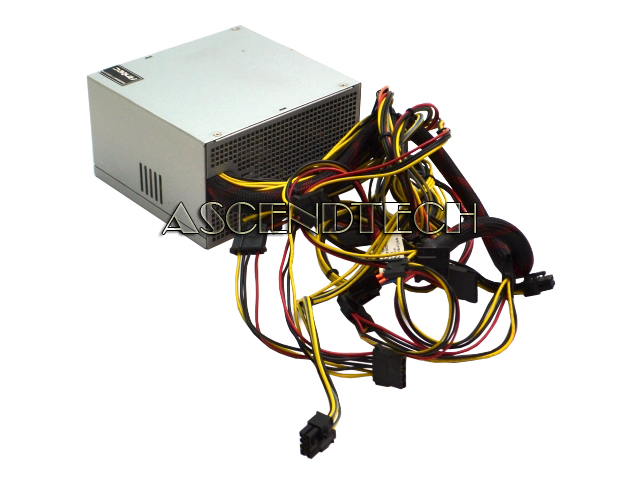

Antec Earthwatts EA-500 500W PSU
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code PWRSPLYANTEA500
Brand Antec
Model Earthwatts EA-500
Category Antec Power Supplies
Condition Like New Grade A
Condition Description Please note, this unit was removed from a brand new PC, it has minor scuffs and scratches from the removal process, but is fully operational & functions as intended!
Description
Antec Earthwatts EA-500 500W 100-240V 9A 60/50Hz 80 Plus PSU Switching Power Supply.
Model Number: Earthwatts EA-500
Features:
- 80 PLUS® certified: reduces operating costs and protects the environment
- 80 mm low noise cooling fan
- Dual 12V outputs
- Industrial grade protection: OVP (Over Voltage Protection), UVP (Under Current Protection), SCP (Short Circuit Protection), and OPP (Over Power Protection)
- Accurate power rating allows EarthWatts to deliver its full rated power
- 4 SATA connectors
- PCI-E connector: one for 380W and 430W, two for 500W
- Safety approvals: UL, cUL, FCC, TÜV, CE, CB, C-tick, CCC, BSMI
- Universal Input mdash; works on any 100V - 240V grid
- Active Power Factor Correction (PFC)
- PF value up to 99%
- Meets ErP Lot 6: 2010 requirement: 5Vsb < 1W
- Dimensions:
- 3.4" (H) x 5.9" (W) x 5.5" (D)
- 86 mm (H) x 150 mm (W) x 140 mm (D)
- Net weight:
- 3.5 lbs / 1.6 kg
Model Number: Earthwatts EA-500
Features:
- 80 PLUS® certified: reduces operating costs and protects the environment
- 80 mm low noise cooling fan
- Dual 12V outputs
- Industrial grade protection: OVP (Over Voltage Protection), UVP (Under Current Protection), SCP (Short Circuit Protection), and OPP (Over Power Protection)
- Accurate power rating allows EarthWatts to deliver its full rated power
- 4 SATA connectors
- PCI-E connector: one for 380W and 430W, two for 500W
- Safety approvals: UL, cUL, FCC, TÜV, CE, CB, C-tick, CCC, BSMI
- Universal Input mdash; works on any 100V - 240V grid
- Active Power Factor Correction (PFC)
- PF value up to 99%
- Meets ErP Lot 6: 2010 requirement: 5Vsb < 1W
- Dimensions:
- 3.4" (H) x 5.9" (W) x 5.5" (D)
- 86 mm (H) x 150 mm (W) x 140 mm (D)
- Net weight:
- 3.5 lbs / 1.6 kg
OUTPUT | ||||
Output Voltage | Range MAX | Reg. | OCP Set Point | Ripple & Noise |
+5V | 24.0A | ± 5% | 36A | 50 |
+12V1 | 22.0A | ± 5% | 25A | 120 |
+12V2 | 22.0A | ± 5% | 25A | 120 |
-12V | 0.8A | ± 10% |
| 120 |
+5VSB | 2.5A | ± 5% |
| 50 |
+3.3V | 25.0A | ± 5% | 36A | 50 |
