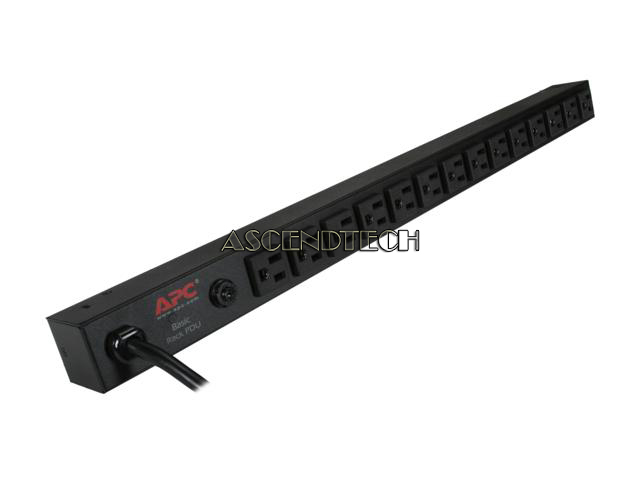

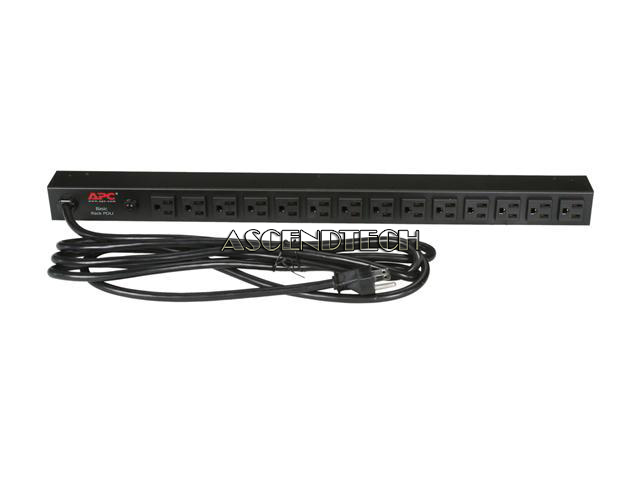

APC 14-Outlet Power Distribution Unit

APC AP9567 Rack Power Distribution Unit. APC offers a wide variety of basic rack-mount power distribution units (PDUs) that allow users to distribute power throughout a rack or enclosure. Whether the rack or enclosure is located in a large datacenter or in a small branch office, power must be distributed to equipment. APC's PDUs offer both vertically and horizontally mounted power strips, as well as a range of amperage and voltage options.

This is a new unit. It includes: Rackmount Brackets, Screw, CD and Manual.





Features:

• Nominal Output Voltage 100V,120V Maximum Total Current Draw per Phase 15A Output Connections (14) NEMA 5-15R
• Overload Protection
• Nominal Input Voltage 100V,120V Input Frequency 50/60 Hz Regulatory Derated Input Current (North America) 12A Input Connections NEMA 5-15P
• Cord Length 3.66 meters Number of Power Cords 1 Acceptable Input Voltage 100-125 VAC Maximum Input Current per phase 15A Load Capacity 1800 VA
• Rackmount power distribution unit
• 14 NEMA 5-15R output receptacles accept common NEMA 5-15 equipment plugs
• 15-Amp circuit breaker
• Slim design takes up 0U of rack space
• 12-foot cord





Specifications:

Brand: APC
Model: AP9567
Nominal Output Voltage 100V , 120V
Overload Protection Yes
Maximum Total Current Draw 15
Output Connections (14) NEMA 5­15R (Battery Backup)
Nominal Input Voltage 100V , 120V
Input frequency 50/60 Hz
Input Connections NEMA 5­15P
Cord Length 12ft ( 3.66meters )
Acceptable Input Voltage 100­125VAC
Number of Power Cords 1
Load Capacity 1800VA
Maximum Input Current 15A
Regulatory Derated Input Current 12A
Maximum Height 24.0inches ( 610mm , 61.0cm )
Maximum Width 1.76inches ( 44mm , 4.4cm )
Maximum Depth 1.76inches ( 44mm , 4.4cm )
Color Black
Includes:
Rackmount Brackets
Screw
CD
Manual

This is a new unit. It includes: Rackmount Brackets, Screw, CD and Manual.
