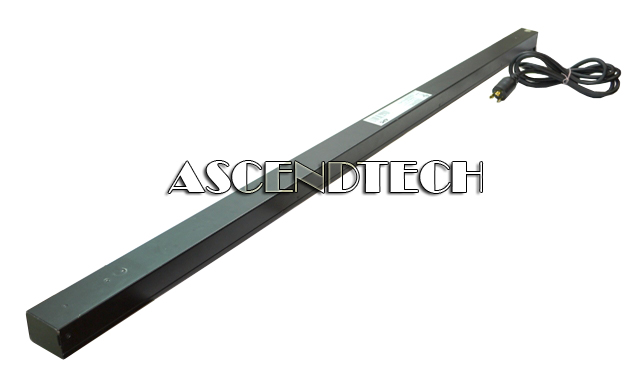

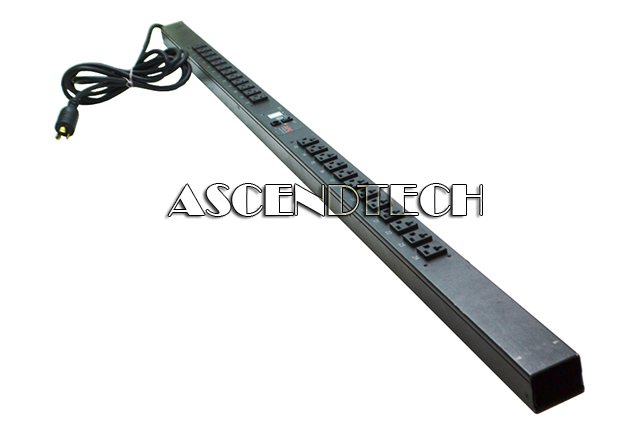

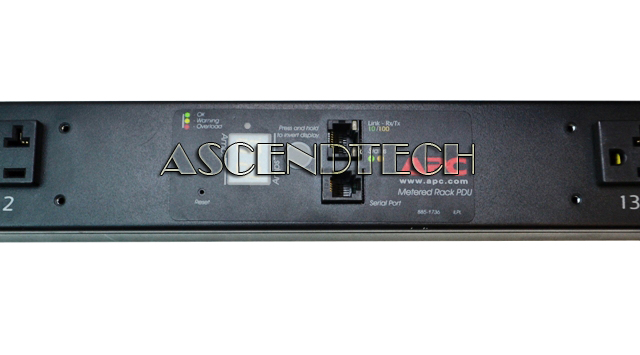

APC AP7830 Power Distribution Unit
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code PWDUMRAPCAP7830
Model AP7830
Category Power Distribution Units
Condition Pre-Owned Grade B
Condition Description Please note, this unit is used and has minor scuffs and scratches, but the item is fully tested, completely operational and functions as intended.
Description
APC AP7830 100-120VAC 50-60Hz 16A PDU 24-Outlet Metered Rack Power Distribution Unit. Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
APC Model Number: AP7830
Features:
Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Specifications:
Output
Nominal Output Voltage - 120V
Maximum Total Current Draw - 16
Output Connections - (24) NEMA 5-20R
Overload Protection - No
Input
Nominal Input Voltage - 100V, 120V
Input frequency - 50/60Hz
Input Connections - NEMA L5-20P
Cord Length - 10ft (3.05meters)
Number of Power Cords - 1
Load Capacity - 1920VA
Maximum Input Current - 20A
Regulatory Derated Input Current - 16A
Physical
Maximum Height: 63.75inches (1619mm, 161.9CM)
Maximum Width: 2.19inches (56mm, 5.6CM)
Maximum Depth: 1.73inches (44mm, 4.4CM)
Color: Black
