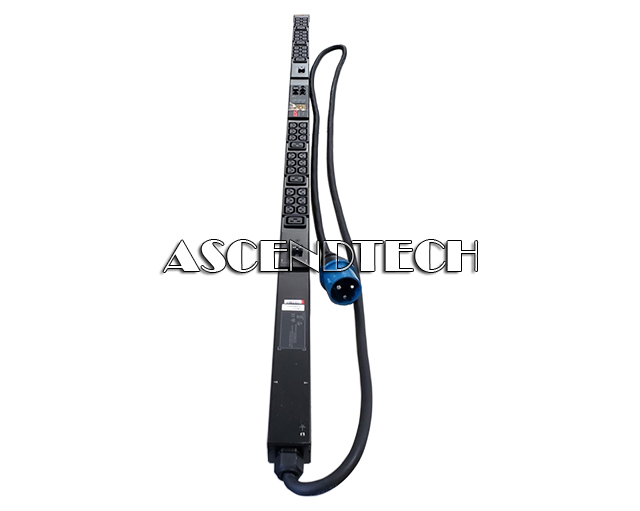

APC AP8853 Power Distribution Unit

APC AP8853 2G ZeroU 230V 32A 36xC13 6xC19 Metered Rack PDU Power Distribution Unit.

APC Model Number: AP8853

Includes:
1x Owner Manual
1x Mount Kit (No Screws)
1x DB9 Female to RJ12 Interface cable







Features:

- Status available to customers both in the data center and remotely

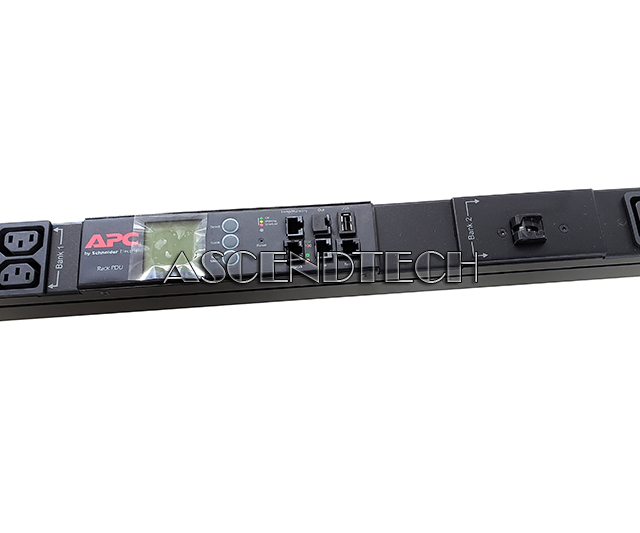

- The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
- Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
- Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
- Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Specifications:

Output:
Nominal Output Voltage: ,230V
Overload Protection: Yes
Maximum Total Current Draw: 32

Output Connections:
36x IEC 320 C13 (Battery Backup)
6x IEC 320 C19 (Battery Backup)

Input
Nominal Input Voltage: 200V, 208V, 230V
Input frequency: 50/60 Hz
Input Connections: IEC 309 32A 2P+E
Cord Length: 3meters
Acceptable Input Voltage: 220-240VAC
Number of Power Cords: 1
Load Capacity: 7400VA
Maximum Input Current: 32A
Maximum Line Current: 32A

Maximum Height: 1791MM, 179.1CM
Maximum Width: 56MM, 5.6CM
Maximum Depth: 44MM, 4.4CM
Net Weight: 6.93KG
Color: Black

Operating Temperature: -5 - 45 °C
Operating Relative Humidity: 5 - 95 %
Operating Elevation: 0-3000meters
Storage Temperature: -25 - 65 °C
Storage Relative Humidity: 5 - 95 %
Storage Elevation: 0-15000meters

Approvals: IEC 60950, VDE

RoHS: Compliant
REACH: Contains No SVHCs
Battery Directive: Compliant
