Apple iMac 21.5" TFT LCD Screen 661-5799

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

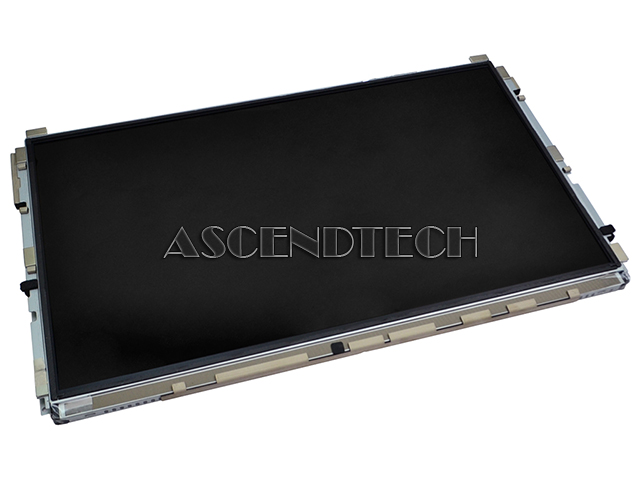

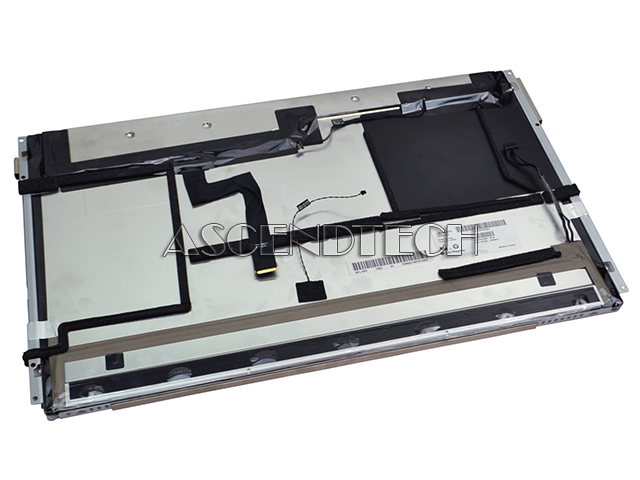

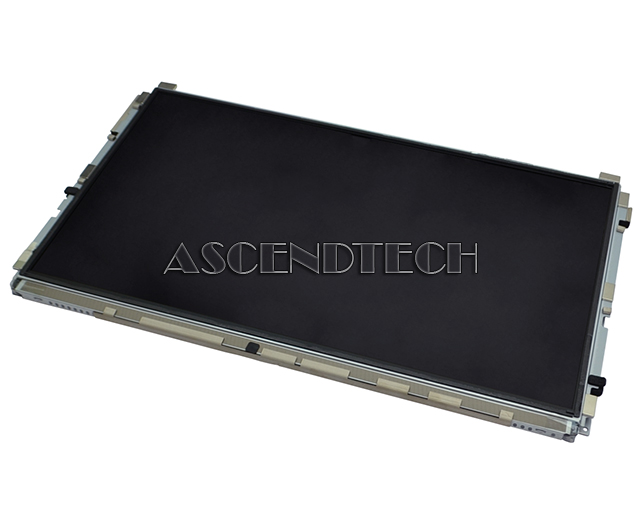

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code LCDMACLG6615799

Brand Apple

Model 661-5799 LM215WF3(SD)(A1)

Category Aio / All In One Lcd Display Panels

Condition Like New Grade A

Condition Description Please note, this screen was pulled out a working desktop iMac and is in excellent cosmetic condition with no scratches on the LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! Includes LCD Display Cable, Temp Sensor Cable, V-Sync Cable, and LED Backlight Cable.

Description

Apple iMac A1311 21.5" 1920x1080 TFT-LCD Widescreen Display Panel 661-5799 LM215WF3(SD)(A1).

Apple Part Number: 661-5799
LG Model Number: LM215WF3
LG Part Number: LM215WF3(SD)(A1) LM215WF3-SDA1
Compatible Part Numbers: 6091L-1049D
Compatible Models: Apple iMac A1311 (MC508LL/A)

Specifications:

Panel Size 21.5 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080 , FHD
Pixel Format RGB Vertical Stripe
Display Area 475.2(W)×267.3(H)mm
Bezel Opening 479.84(W)×272.32(H)mm
Outline Size 495.6(W)×305.25(H) ×16.3(D)mm
Surface Glare (Haze 0%), Hard coating (2H), Antireflection
Brightness 365 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)(TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Display Mode IPS, Normally Black, Transmissive
Response Time 6.5/7.5 (Typ.)(Tr/Td)
Display Colors 16.7M Lamp Type 3 strings WLED
Frequency 60Hz
Signal Interface eDP (4 Lanes) , 30 pins , Connector

Included:

- 593-1280 Eathtek LCD Display Cable
- 593-1229-A Tempurature Sensor Cable
- 593-1237 V-Sync Cable
- LED Backlight Cable
- LG LM215WF3 (SD)(A1) display panel
