Apple iMac 27" LG LCD Screen 661-5527

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
Apple Imac 27" Lg Lcd Screen 661-5527
Apple Imac 27" Lg Lcd Screen 661-5527
Apple Imac 27" Lg Lcd Screen 661-5527

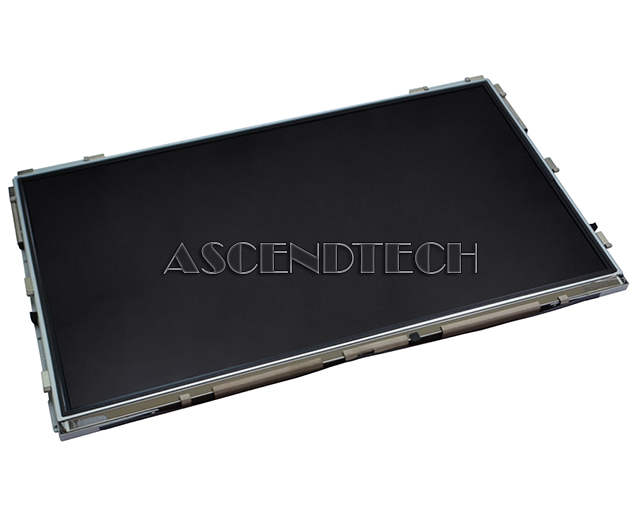

*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeLCDMACLG6615527
BrandApple
Model661-5527 LM270WQ1(SD)(A2)
Category27" - 32" Lcd / Led Display Monitors
ConditionLike New Grade A
Condition DescriptionPlease note, this screen was pulled out of brand new iMac and is in excellent cosmetic condition with no scratches on the LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! Includes LCD LVDS Display Cable, Temp Sensor Cable , V-Sync Cable , and LED Backlight Cable. Please see our images.

Description

Apple iMac A1312 27" 2560x1440 Quad-HD TFT-LCD Widescreen Display Panel 661-5527 LM270WQ1 (SD)(A2).

Apple Part Number: 661-5527
LG Model Number: LM270WQ1
LG Part Number: LM270WQ1 (SD)(A2) LM270WQ1-SDA2
Compatible Part Numbers: 6091L-1050A
Compatible Models: Apple iMac A1312 (MB952LL/A)







Specifications:

Diagonal Size 27.0 inch
Type a-Si TFT-LCD, LCM
Resolution 2560×1440 (RGB) [Quad-HD]
Configuration RGB Vertical Stripe
Active Area 596.736(H)×335.664(V)mm
Outline Dim. 630(H)×376.13(V) ×22.3(D)mm
Bezel Area 601.7(H)×340.7(V)mm
Treatment Glare (Haze 0%), Hard coating (2H), Antireflection
Luminance 380 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)(TM)
Response Time 6.5/7.5ms (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode H-IPS, Normally Black, Transmissive
Color Support 16.7M (sRGB)
Light Source WLED [6 strings]
Frame Rate 60Hz
Interface Type 30 pins eDP (4 Lanes) , Connector

Included:

- 593-1209-A Tempurature Sensor Cable
- 593-1028-A Eathtek LCD LVDS Video Cable
- 593-1049A Eathtek V-Sync Cable
- LED Backlight Cable
- LM270WQ1 (SD)(A2) display panel
