Apple iMac 27" LG LCD Screen 661-5568

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
Apple Imac 27" Lg Lcd Screen 661-5568
Apple Imac 27" Lg Lcd Screen 661-5568
Apple Imac 27" Lg Lcd Screen 661-5568
Apple Imac 27" Lg Lcd Screen 661-5568

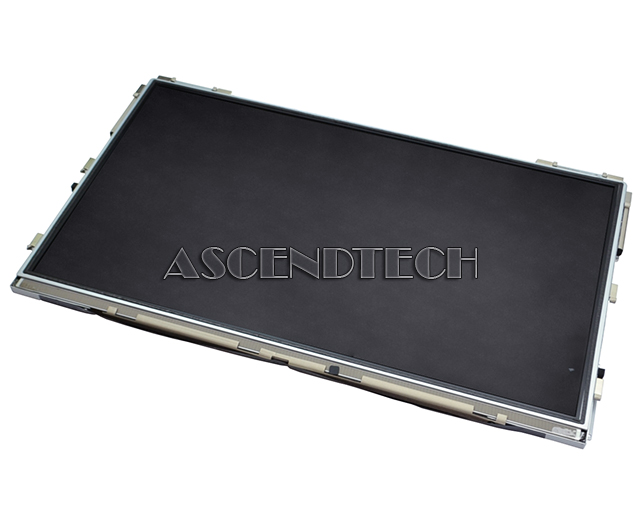

*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeLCDMACLG6615568
BrandApple
Model661-5568 LM270WQ1(SD)(C1)
ConditionPre-Owned Grade B

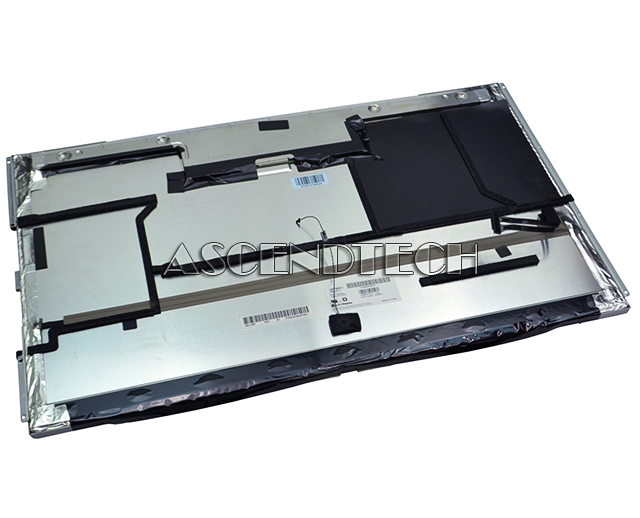

Condition DescriptionPlease note, this unit has been pulled from a display model iMac desktop, but has a small scratch on the bottom right corner of the screen from the disassembly process. This display assembly includes a temperature sensor cable and LED backlight cable. Does not include any other cables & accessories. Please see our images.

Description

Apple iMac A1312 27" 2560x1440 Quad-HD TFT-LCD Widescreen Display Panel 661-5568 LM270WQ1 (SD)(C1).

Apple Part Number: 661-5568
LG Model Number:
LM270WQ1
LG Part Number:
LM270WQ1 (SD)(C1) LM270WQ1-SDC1
Compatible Part Numbers: 6091L-1050F
Compatible Models: Apple iMac A1312 (MC510LL/A)







Specifications:

Diagonal Size
27.0 inch
Type a-Si TFT-LCD, LCM
Resolution 2560(RGB)×1440 [Quad-HD]
Configuration RGB Vertical Stripe
Active Area 596.736(H)×335.664(V)mm
Outline Dim. 630(H)×376.13(V) ×22.3(D)mm
Bezel Area 601.7(H)×340.7(V)mm
Treatment Glare (Haze 0%), Hard coating (2H), Antireflection
Luminance 420 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)(TM)
Response Time 6.5/7.5ms (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode H-IPS, Normally Black, Transmissive
Color Support 1.07B (sRGB)
Light Source WLED [6 strings]
Frame Rate 60Hz
Interface Type 30 pins eDP (4 Lanes) , Connector

Included:

- 593-1209-A Tempurature Sensor Cable
- LED Backlight Cable
- LM270WQ1 (SD)(C1) display panel

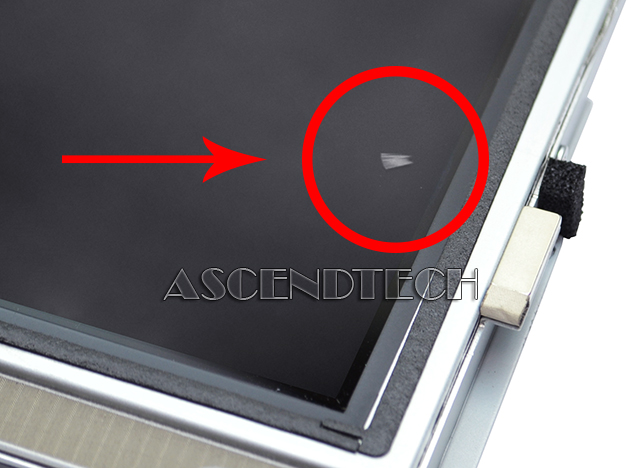

Bottom right side of the screen has small scuffs and scratches, but the LCD has been tested and functions as intended.
