661-6615 LM270WQ1(SD)(E3) | Apple Imac 27" Lg Lcd Screen 661-6615

Apple iMac 27" LG LCD Screen 661-6615

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code LCDMACLG6616615

Brand Apple

Model 661-6615 LM270WQ1(SD)(E3)

Category Aio / All In One Lcd Display Panels

Condition Like New Grade A

Condition Description Please note, this screen was pulled out of brand new iMac and is in excellent cosmetic condition with no scratches on the LCD itself. Minor scuffs and scratches on the back of the unit from disassembly process. Item was fully tested, its completely operational and functions as intended! Includes LCD LED Display Cable, LCD LVDS Display Cable, Temp Sensor Cable , V-Sync Cable , and LED Backlight Cable. Please see our images.

Description

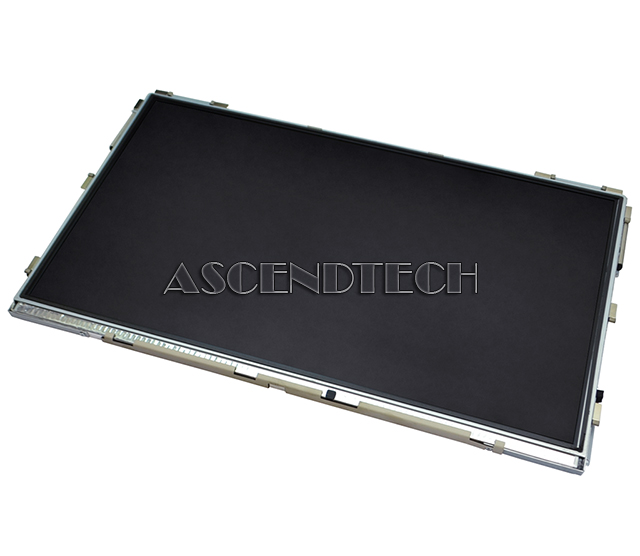

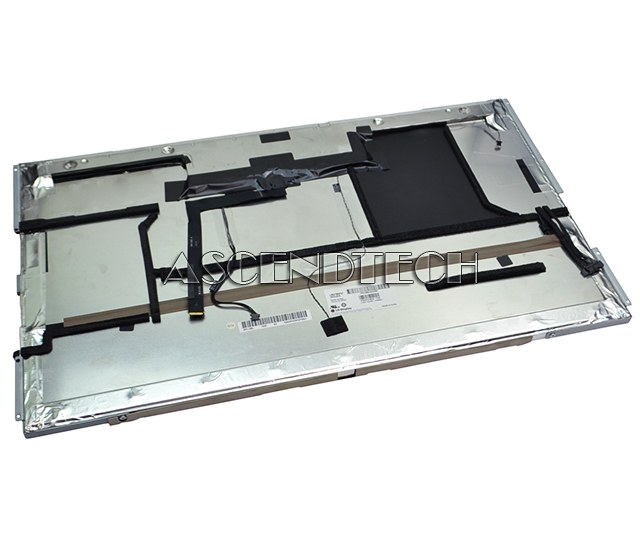

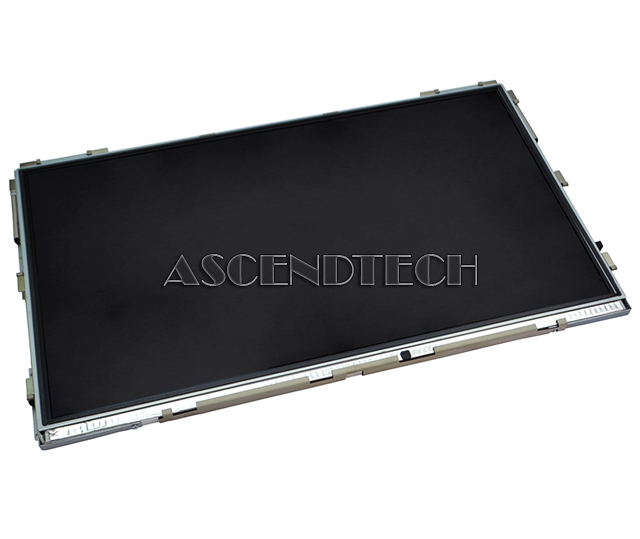

Apple iMac A1312 27" 2560x1440 Quad-HD TFT-LCD Widescreen Screen Display Panel 661-6615 LM270WQ1 (SD)(E3).

Apple Part Number: 661-6615
LG Model Number: LM270WQ1
LG Part Number: LM270WQ1 (SD)(E3) LM270WQ1-SDE3
Compatible Part Numbers: 6091L-1050J
Compatible Models: Apple iMac A1312 (MC813LL/A)

Specifications:

Diagonal Size 27.0 inch
Type a-Si TFT-LCD, LCM
Resolution 2560×1440 (RGB) [Quad-HD]
Configuration RGB Vertical Stripe
Active Area 596.736(H)×335.664(V)mm
Outline Dim. 630(H)×376.13(V) ×22.3(D)mm
Bezel Area 601.7(H)×340.7(V)mm
Treatment Glare (Haze 0%), Hard coating (2H)
Luminance 420 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)(TM)
Response Time 6.5/7.5ms (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode H-IPS, Normally Black, Transmissive
Color Support 16.7M (sRGB)
Light Source WLED [6 strings]
Frame Rate 60Hz
Interface Type 36 pins, eDP (4 Lanes) , Connector

Included:

- 593-1353-A LCD LED Display Screen Power Cable
- 593-1028-A Eathtek LCD LVDS Screen Display Flex Cable
- 593-1385-A V-Sync / Temperature Sensor Cable
- LED Backlight Cable
- LM270WQ1 (SD)(E3) display panel
