Areca ARC-1883X x8 SAS SATA RAID 6GB/s

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

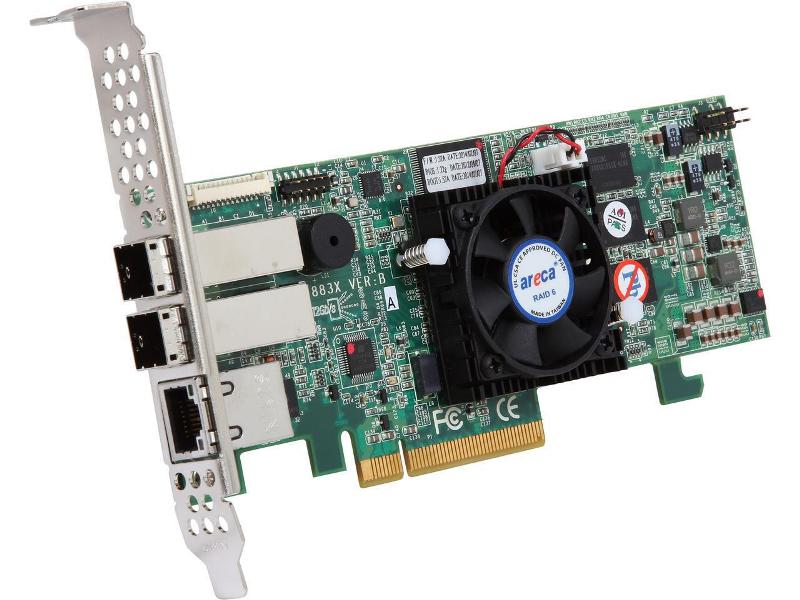

Areca Arc-1883X X8 Sas Sata Raid 6Gb/S. Model: Arc-1883X Pcie 2.0

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code CNTARC1883XX8SA

Brand Areca

Model ARC-1883X PCIe 2.0

Category Sata & Sas Raid Controller Cards

Description

New Page 2areca ARC-1883X PCI-Express 3.0 x8 SAS RAID Adapter

Learn more about the Areca ARC-1883X

Model

Brand: areca

Model: ARC-1883X

Details

Type: SAS

External Connectors: 2 x SFF-8644 mini-SAS HD

Interface: PCI-Express 3.0 x8

Cache Memory: 2GB on-board DDR3-1866 SDRAM

RAID: 0, 1,1E, 3, 5, 6, 10, 30, 50, 60 or JBOD

Operating Systems Supported: Windows 8/Server2012/7/2008/Vista/Server 2003/XP
Linux
FreeBSD
VMware (only driver package available w/o management utility)
Solaris 10/11 x86/x86_64
Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x/10.8.x/10.9.x

Dimensions: 169.5mm x 64.4mm

Features

Features: Dual Core RAID-on-Chip 1.2 GHz

Write-through or write-back cache support

Multi-adapter support for large storage requirements

Supports up to 256 SATA or SAS devices using SAS expanders

12Gb/s throughput at each drive ports

Boot support for the uEFI host BIOS

NVRAM for RAID event & transaction log

Redundant flash image for controller availability

Group

Internal Ports: N/A

Embedded hardware RAID: Yes

Package: Kit
