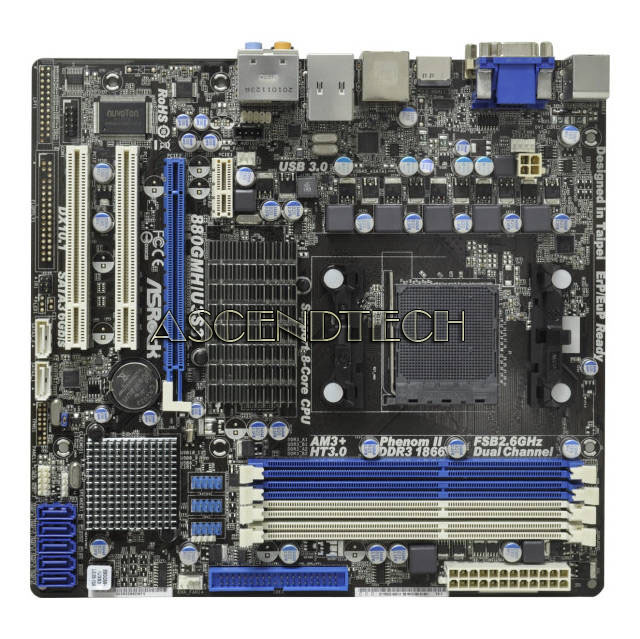

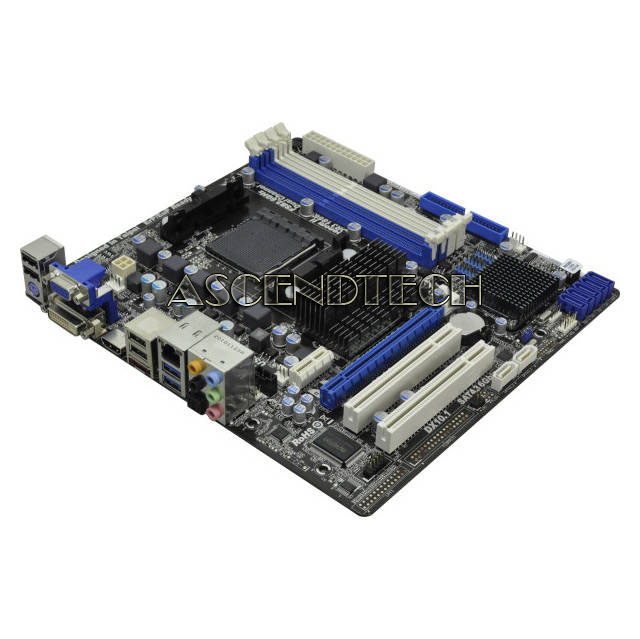

ASRock 880GMH/U3S3 AM3+ 880GMH HD4250 MB

ASRock 880GMH/U3S3 Socket AM3+/ AMD 880G/ Hybrid CrossFireX/ SATA3&USB 3.0/ A&V&GbE/ MATX Motherboard is designed to build up the most powerful system and delivers the most demanding technology for users nowadays.

Specifications:

Mfr Part Number: 880GMH/U3S3
CPU: Socket AM3+/AM3 Support AMD Phenom II X6/X4/ X3/ X2 (except 920 /940) /Athlon II X4 /X3 /X2 / Sempron processors; Supports 8-Core CPU; Supports CPU up to 140W; Supports AMD's Cool 'n' Quiet Technology; Supports Hyper-Transport 3.0 Technology; FSB 5.2 GT/s
Chipset: AMD 880G & SB710
Memory: 4x 240pin DDR3-2000(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800 DIMMs, Dual Channel, Non-ECC/Un-buffered, Max Capacity Up to 32GB
Slots: 1x PCI-Express 2.0 x16 Slot(Supports Hybrid CrossFireX); 1x PCI-Express 2.0 x1 Slot; 2x PCI SlotsIDE/SATA: 1x ATA133 Channel; 5x SATA2 Ports, Support RAID 0/ 1/ 10/ JBOD; 2x SATA3 Ports; 1x eSATA2 Port
Audio: Realtek ALC892 7.1-Channel Audio CODEC, Supports Premium Blu-ray audio
Video: AMD Radeon HD4250 Graphics Controller, w/ 512MB shared memory
LAN: Atheros AR8151 PCI-Express x1 Gigabit Ethernet Controller, Supports Wake-On-LAN

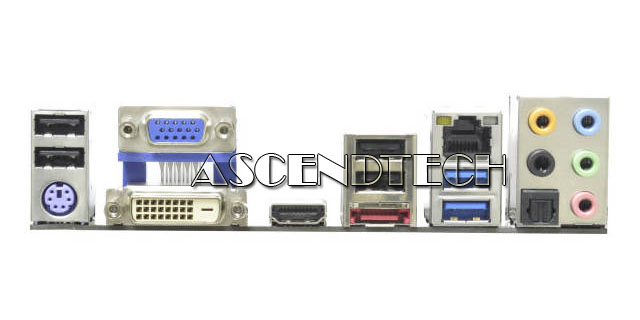

Ports: 10x USB 2.0 Ports (4 rear, 6 by headers); 2x USB 3.0 ports; 1x eSATA2 Port; 1x PS/2 Port; 1x VGA Port; 1x DVI Port; 1x HDMI Port; 1x Optical SPDIF-Out; 1x RJ45 LAN Port; Audio I/O Jacks
Power Connector: 1x 24pin main power, 1x 4pin CPU power
Form Factor: Micro ATX, 9.6 x 9.0 inch / 24.4 x 22.9 cm
