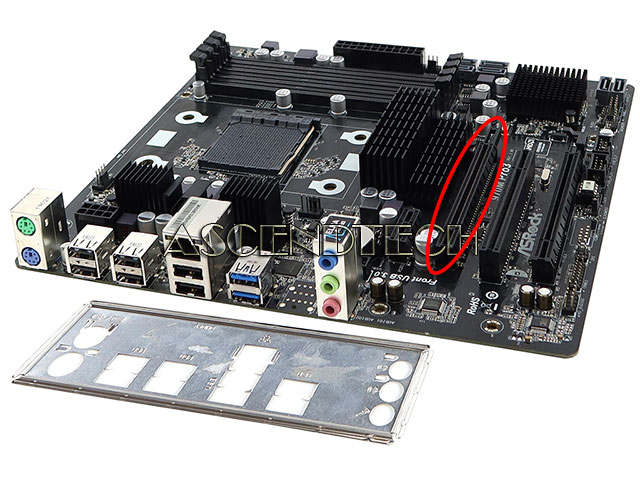

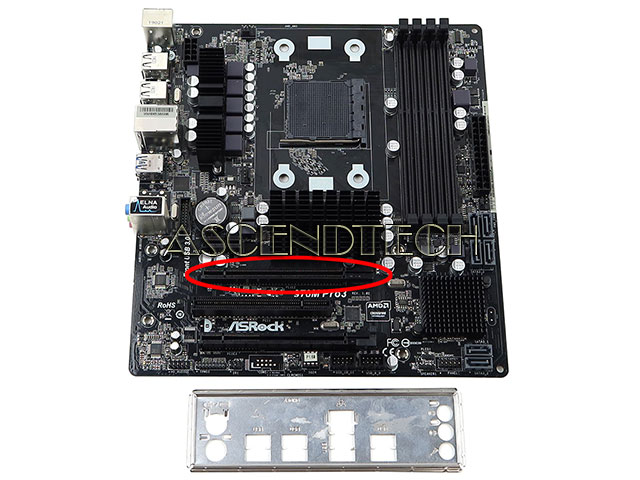

ASRock 970M Pro3 Mboard 80-MXGXE0-A1A02

Chipset: AMD 970/SB950

Socket: AMD AM3/AM3+

Compatible/Supported CPU: Support for AMD AM3+ processor; AM3 AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR3 SDRAM

Speed: 2400MHz(O.C.)/2100MHz(O.C.)/1866MHz(O.C.)/1800MHz(O.C.)/1600MHz(O.C.)/1333MHz/1066MHz

Storage Interface: SATA 6Gb/s

RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10

Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s

Audio: Realtek ALC892 Codec

Connectors: 1x IR Header; 1x TPM Header; 1x Power LED Header; 1x CPU Fan Connector (4-pin); 1x Chassis Fan Connector (4-pin); 1x Power Fan Connector (3-pin); 1x 24 pin ATX Power Connector; 1x 8 pin 12V Power Connector; 1x Front Panel Audio Connector; 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); 1x USB 3.1 Gen1 Header by Etron EJ188H (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Input/Output Ports: 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 6x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)), 2x USB 3.1 Gen1 Ports (Etron EJ188H) (Supports ESD Protection (ASRock Full Spike Protection)), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone

Expansion Slots: 2x PCI Express 2.0 x16 Slots (PCIE2: x16 mode, PCIE3: x4 mode), 1x PCI Express 2.0 x1 Slot, 1x PCI Slot, Supports AMD Quad CrossFireX and CrossFireX

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Microsoft Windows 10 64-bit; 8.1 32-bit/64-bit; 8 32-bit/64-bit; 7 32-bit/64-bit; Vista 32-bit/64-bit; XP 32-bit/64-bit.

Features: Support for Socket AM3+ / AM3 Processors; Solid Capacitor design; Supports Dual Channel DDR3 2400+(OC); 2 PCIe 2.0 x16, 1 PCIe 2.0 x1, 1 PCI; 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps; 6 SATA3; 4 USB 3.1 Gen1 (2 Front, 2 Rear), 10 USB 2.0 (4 Front, 6 Rear); 1 TPM Header, 1 IR Header; Supports ASRock Full Spike Protection, X-Boost, APP Shop, High Density Glass Fabric PCB
