ASRock A320M-HDV Desktop Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

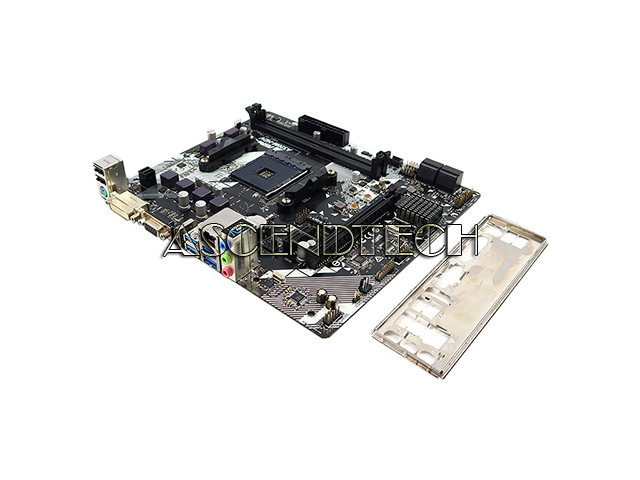

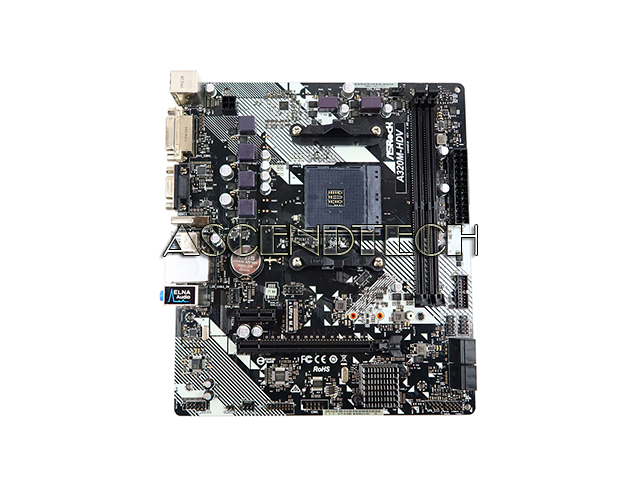

Asrock A320m-Hdv Desktop Motherboard
Asrock A320m-Hdv Desktop Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMB80MXB9L0A1A01
BrandAsrock
ModelA320M-HDV
Part Number80-MXB9L0-A1A01
CategoryAmd Socket Am4 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard comes with I/O Shield only! No cables or any other accessories!

Description

ASRock A320M-HDV AMD Chipset A320 Socket AM4 DDR4 HDMI DVI-D D-Sub USB SATA 6Gb/s Micro ATX Desktop Motherboard 80-MXB9L0-A1A01.

Chipset: AMD A320
Socket: AMD AM4
Compatible/Supported CPU: AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 10
Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC887 Audio Codec
Connectors: 1x Print Port Header; 1x COM Port Header; 1x TPM Header; 1x Chassis Intrusion and Speaker Header; 1x CPU Fan Connector (4-pin); 2x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin); 1x 24 pin ATX Power Connector; 1x 4 pin 12V Power Connector; 1x Front Panel Audio Connector; 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection).
Input/Output Ports: 1x PS/2 Mouse/Keyboard Port; 1x D-Sub Port; 1x DVI-D Port; 1x HDMI Port; 2x USB 2.0 Ports (Supports ESD Protection); 4x USB 3.1 Gen1 Ports (Supports ESD Protection); 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.
Expansion Slots: AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge): 1x PCI Express 3.0 x16 Slot (PCIE2: x16 mode); AMD 7th A-Series APUs / Raven Ridge CPUs: 1x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); AMD Ryzen series CPUs (Picasso, Raven Ridge): 1x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); AMD Athlon series CPUs: 1x PCI Express 3.0 x16 Slot (PCIE2: x4 mode); 1x PCI Express 2.0 x1 Slot.
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit
Features: ASRock Super Alloy; Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge & Raven Ridge); Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU); 1 PCIe 3.0 x16, 1 PCIe 2.0 x1; Graphics Output: HDMI, DVI-D, D-Sub; 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps; 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3); 6 USB 3.1 Gen1 (2 Front, 4 Rear); Realtek Gigabit LAN.

Additional Specifications:

Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
- Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- Integrated AMD Radeon R-Series Graphics in A-series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) 24Hz / (3840x2160) 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

CPU Support:

Socket AM4

FamilyModelPowerCoreFrequencyCacheCPU Rev.Since BIOS
Ryzen 93900 (100-000000070)65WMatisse3.1GHz6MBB0P6.00
Ryzen 73700X (100-000000071)65WMatisse3.6GHz4MBB0P5.90
Ryzen 7PRO 2700 (YD270BBBM88AF)65WPinnacle Ridge3.2GHz4MBB2P4.70
Ryzen 72700 (YD2700BBM88AF)65WPinnacle Ridge3.2GHz4MBB2P4.70
Ryzen 72700E (YD270EBHM88AF)45WPinnacle Ridge2.8GHz4MBB2P4.80
Ryzen 7PRO 1700 (YD170BBBM88AE)65WSummit Ridge3.0GHz4MBB1All
Ryzen 71700 (YD1700BBM88AE)65WSummit Ridge3.0GHz4MBB1All
Ryzen 5PRO 3600 (100-000000029)65WMatisse3.6GHz3MBB0P5.90
Ryzen 53600 (100-000000031)65WMatisse3.6GHz3MBB0P5.90
Ryzen 53500X (100-000000158)65WMatisse3.6GHz3MBB0P6.00
Ryzen 53500 (100-000000050)65WMatisse3.6GHz3MBB0P6.00
Ryzen 5PRO 3400G (YD340BC5M4MFH)65WPicasso3.7GHz2MBB1P5.90
Ryzen 5PRO 3400GE (YD340BC6M4MFH)35WPicasso3.3GHz2MBB1P5.90
Ryzen 53400G (YD340GC5M4MFH)65WPicasso3.7GHz2MBB1P6.00
Ryzen 53400G (YD3400C5M4MFH)65WPicasso3.7GHz2MBB1P5.90
Ryzen 53400GE (YD3400C6M4MFH)35WPicasso3.3GHz2MBB1P5.90
Ryzen 5PRO 2600 (YD260BBBM6IAF)65WPinnacle Ridge3.4GHz3MBB2P4.80
Ryzen 52600 (YD2600BBM6IAF)65WPinnacle Ridge3.4GHz3MBB2P4.70
Ryzen 52600E (YD260EBHM6IAF)45WPinnacle Ridge3.1GHz3MBB2P4.80
Ryzen 52500X (YD250XBBM4KAF)65WPinnacle Ridge3.6GHz2MBB2P4.80
Ryzen 5PRO 2400G (YD240BC5M4MFB)65WRaven Ridge3.6GHz2MBB0P4.40
Ryzen 5PRO 2400GE (YD240BC6M4MFB)35WRaven Ridge3.2GHz2MBB0P2.30
Ryzen 52400G (YD2400C5M4MFB)65WRaven Ridge3.6GHz2MBB0P4.40
Ryzen 52400GE (YD2400C6M4MFB)35WRaven Ridge3.2GHz2MBB0P4.40
Ryzen 5PRO 1600 (YD160BBBM6IAE)65WSummit Ridge3.2GHz3MBB1P2.50
Ryzen 51600(YD1600BBM6IAF)65WPinnacle Ridge3.2GHz3MBB2P6.10
Ryzen 51600 (YD1600BBM6IAE)65WSummit Ridge3.2GHz3MBB1All
Ryzen 5PRO 1500 (YD150BBBM4GAE)65WSummit Ridge3.5GHz2MBB1P2.00
Ryzen 51500X (YD150XBBM4GAE)65WSummit Ridge3.5GHz2MBB1P2.00
Ryzen 51400 (YD1400BBM4KAE)65WSummit Ridge3.2GHz2MBB1All
Ryzen 33300X (100-000000159)65WMatisse3.8GHz2MBB0P6.10
Ryzen 3PRO 3200G (YD320BC5M4MFH)65WPicasso3.6GHz2MBB1P5.90
Ryzen 3PRO 3200GE (YD320BC6M4MFH)35WPicasso3.3GHz2MBB1P5.90
Ryzen 33200G (YD320GC5M4MFH)65WPicasso3.6GHz2MBB1P6.00
Ryzen 33200G (YD3200C5M4MFH)65WPicasso3.6GHz2MBB1P5.90
Ryzen 33200GE (YD3200C6M4MFH)35WPicasso3.3GHz2MBB1P5.90
Ryzen 33100 (100-000000284)65WMatisse3.6GHz2MBB0P6.10
Ryzen 32300X (YD230XBBM4KAF)65WPinnacle Ridge3.5GHz2MBB2P4.80
Ryzen 3PRO 2200G (YD220BC5M4MFB)65WRaven Ridge3.5GHz2MBB0P4.40
Ryzen 3PRO 2200GE (YD220BC6M4MFB)35WRaven Ridge3.2GHz2MBB0P2.30
Ryzen 32200G (YD2200C5M4MFB)65WRaven Ridge3.5GHz2MBB0P4.40
Ryzen 32200GE (YD2200C6M4MFB)35WRaven Ridge3.2GHz2MBB0P4.40
Ryzen 3PRO 1300 (YD130BBBM4KAE)65WSummit Ridge3.4GHz2MBB1P2.50
Ryzen 31300X (YD130XBBM4KAE)65WSummit Ridge3.4GHz2MBB1P2.50
Ryzen 3PRO 1200 (YD120BBBM4KAE)65WSummit Ridge3.1GHz2MBB1P2.00
Ryzen 31200 (YD1200BBM4KAE)65WSummit Ridge3.1GHz2MBB1All
Ryzen 31200 (YD1200BBM4KAF)65WPinnacle Ridge3.1GHz2MBB2P6.10
A12A12-9800 (AD9800AUM44AB)65WBristol Ridge3.8GHz2MBA1All
A12A12-9800E (AD9800AHM44AB)35WBristol Ridge3.1GHz2MBA1All
A10A10-9700 (AD9700AGM44AB)65WBristol Ridge3.5GHz2MBA1All
A10A10-9700E (AD9700AHM44AB)35WBristol Ridge3.0GHz2MBA1All
A8A8-9600 (AD9600AGM44AB)65WBristol Ridge3.1GHz2MBA1All
A6A6-9550 (AD9550AGM23AB)65WBristol Ridge3.8GHz1MBA1P3.10
A6A6-9500 (AD9500AGM23AB)65WBristol Ridge3.5GHz1MBA1All
A6A6-9500E (AD9500AHM23AB)35WBristol Ridge3.0GHz1MBA1All
A6A6-9400 (AD9400AGM23AB)65WBristol Ridge3.4GHz1MBA1P5.10
Athlon3000G (YD3000C6M2OFH)35WPicasso3.5GHz1MBB1P6.00
AthlonAthlon 240GE (YD240GC6M2OFB)35WRaven Ridge3.5GHz1MBB0P5.10
AthlonAthlon 220GE (YD220GC6M2OFB)35WRaven Ridge3.4GHz1MBB0P5.10
AthlonAthlon PRO 200GE (YD200BC6M2OFB)35WRaven Ridge3.2GHz1MBB0P2.30
AthlonAthlon 200GE (YD200GC6M2OFB)35WRaven Ridge3.2GHz1MBB0P5.10
AthlonAthlon 200GE(YD20GGC6M2OFB)35WRaven Ridge3.2GHz1MBB0P5.10
Athlon X4Athlon X4 970 (AD970XAUM44AB)65WBristol Ridge3.8GHz2MBA1P3.10
Athlon X4Athlon X4 950 (AD950XAGM44AB)65WBristol Ridge3.5GHz2MBA1All
Athlon X4Athlon X4 940 (AD940XAGM44AB)65WBristol Ridge3.2GHz2MBA1P3.10
