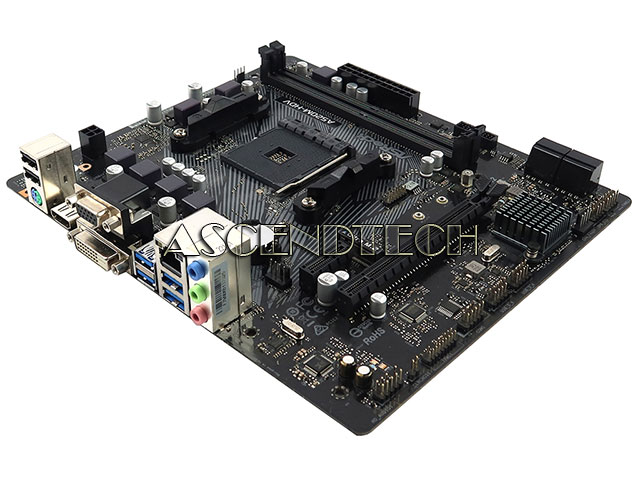

ASRock A520M-HDV AM4 DDR4 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item CodeMBDSKA520MHDVUA

BrandAsrock

ModelA520M-HDV

Part Number80-MXBE50-A1A01

CategoryAmd Socket Am4 Motherboard

ConditionLike New Grade A

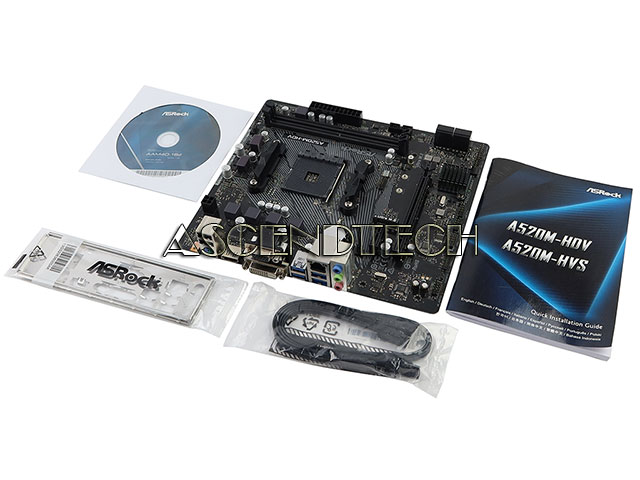

Condition DescriptionPlease note, this motherboard comes with I/O Shiled, Fan Backplate, Fan Bracket, Manual, CD and SATA Cable. No other accessories.

Description

ASRock A520M-HDV AMD Chipset A520 Socket AM4 DDR4 HDMI DVI-D VGA SATA 6Gb/s Micro-ATX Desktop Motherboard 80-MXBE50-A1A01.

Chipset: AMD A520

Socket: AMD AM4

Compatible/Supported CPU: Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Max Supported Memory: 64GB

Number of Memory Slots: 2

Memory Type: DDR4 SDRAM

Speed: 4733MHz(O.C.)/4666MHz(O.C.)/4600MHz(O.C.)/4533MHz(O.C.)/4466MHz(O.C.)/4400MHz(O.C.)/4333MHz(O.C.)/4266MHz(O.C.)/4200MHz(O.C.)/4133MHz(O.C.)/ 4000MHz(O.C.)/3866MHz(O.C.)/3800MHz(O.C.)/3733MHz(O.C.)/3600MHz(O.C.)/3466MHz(O.C.)/3200MHz/2666MHz/2400MHz/2133MHz

Storage Interface: SATA 6Gb/s, NVMe

RAID Support: 0, 1, 5, 10

Network/Communications: Realtek RTL8111H Gigabit LAN

Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

Connectors: 1x SPI TPM Header, 1x COM Port Header, 1x Chassis Intrusion and Speaker Header, 1x CPU Fan Connector (4-pin), 2x Chassis Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 2x USB 2.0 Headers, 1x USB 3.2 Gen1 Header

Input/Output Ports: 1x PS/2 Mouse/Keyboard Port, 1x D-Sub Port, 1x DVI-D Port, 1x HDMI Port, 2x USB 2.0 Ports, 4x USB 3.2 Gen1 Ports, 1x RJ-45 LAN Port, 3x Audio Jacks

Expansion Slots: 1x PCI Express 3.0 x16 Slot, 1x PCI Express 3.0 x1, 1x Ultra M.2 Socket, 4x SATA3 6.0 Gb/s

Form Factor: Micro-ATX

Type: Desktop Motherboard

Supported Operating System: Microsoft Windows 10 64-bit / 11 64-bit

Features: SATA Cable P/N: 14G00010107VAK, CD P/N: 15G09X37300BAK, Manual P/N: 15G062243011AK

Additional Specifications:

Hardware Monitor
- Temperature Sensing: CPU, Chassis
- Fan Tachometer: CPU, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
- Fan Multi-Speed Control: CPU, Chassis Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft PlayReady
