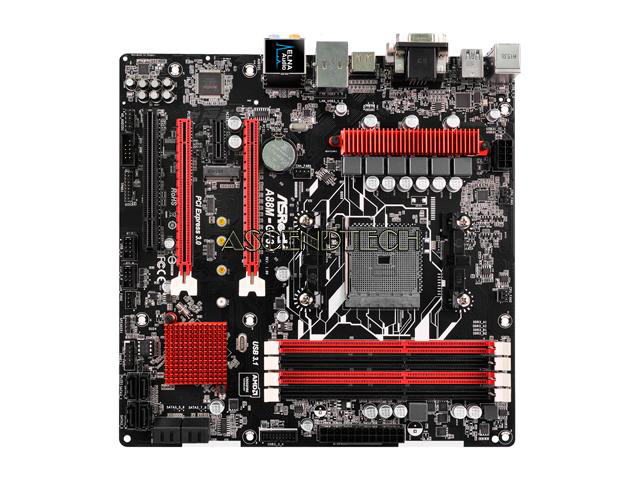

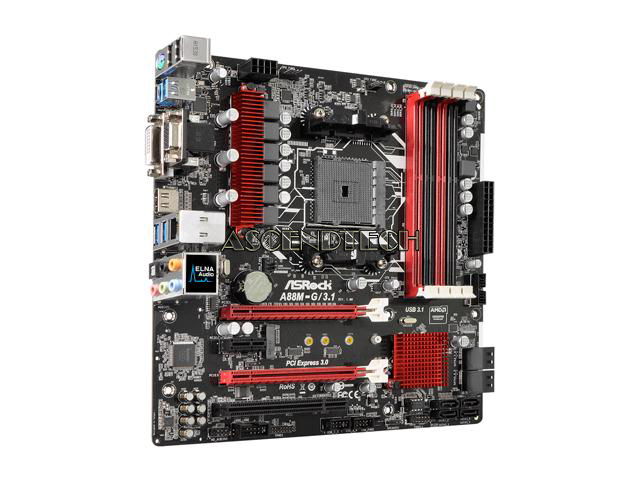

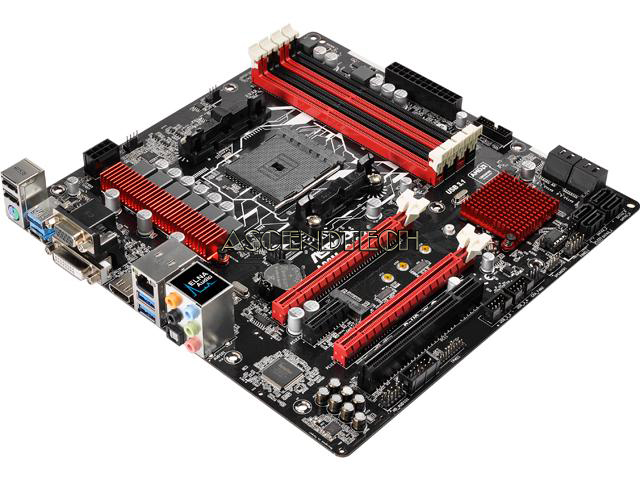

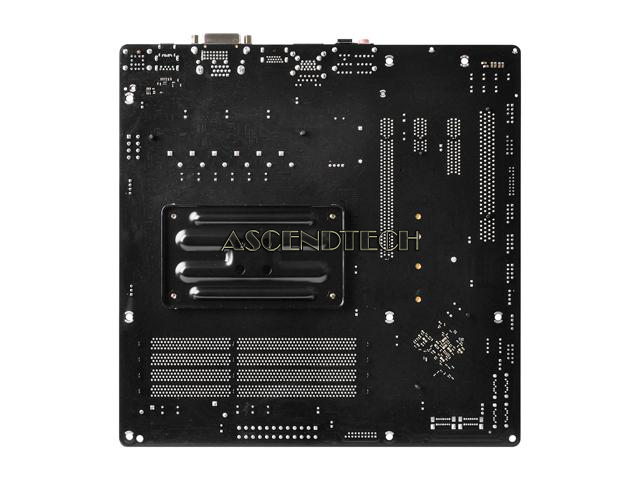

ASRock A88M-G/3.1 AMD FM2/FM2+ mATX MB

ASRock A88M-G/3.1 FM2+ / FM2 A88X (Bolton D4) Micro ATX Motherboard. A great foundation for you to build a FM2+/FM2 APU-based system, the ASRock A88M-G/3.1 Motherboard delivers performance, features, and quality at a great price. It's based on an AMD A88X (Bolton D4) chipset and supports an FM2+ 95W/FM2 100W processor.

Features:

• AMD A88X (Bolton D4)
• FM2+ 95W / FM2 100W processors
• DDR3 2400+(OC) / 2133 / 1866 / 1600 / 1333 / 1066

Specification:

Brand: ASRock
Model: A88M-G/3.1
CPU Socket: FM2+ / FM2
Supported CPU Type: FM2+ 95W / FM2 100W processors
Chipset: AMD A88X (Bolton D4)
Number of Memory Slots: 4×240pin
Memory Standard: DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066
Maximum Memory Supported: 64GB
Channel Supported: Dual Channel
Expansion Slots:
1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
* PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
1 x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode)
1 x PCI Express 2.0 x1 Slot
1 x PCI Slot
Storage Devices:
8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
1 x M.2_SSD (NGFF) Socket 3, supports type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20 Gb/s)
* If PCIE3 is occupied, M2_1 will be disabled.
* Supports ASRock U.2 Kit.
0/1/10 SATA RAID
Onboard Video Chipset: By CPU model
Integrated AMD Radeon R7/R5 Series Graphics in A-series APU
DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
Max. shared memory 2GB
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K × 2K (4096x2160) @ 24Hz
* Only FM2+ APU can support up to 4096x2160 resolution display via HDMI port
Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports Blu-ray Stereoscopic 3D with HDMI Port
Supports AMD Steady Video 2.0: New video post processing capability for automatic jitter reduction on home/online video
Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Onboard Audio Chipset: Realtek ALC1150
Audio Channels: 7.1 Channels
Onboard LAN Chipset: Realtek 8111-GR
Max LAN Speed: 10/100/1000Mbps
Rear Panel Ports:
1 x PS/2 keyboard/mouse port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x USB 3.1 Type-A Port (10Gb/s) (ASMedia ASM1143) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.1 Type-C Port (10Gb/s) (ASMedia ASM1143) (Supports ESD Protection (ASRock Full Spike Protection))
2 x USB 3.0 Ports (AMD A88X (Bolton-D4)) (Supports ESD Protection (ASRock Full Spike Protection))
2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
1 x Optical S/PDIF Out
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O Connectors:
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x COM Port Header
1 x TPM Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan Connectors (2 x 4-pin)
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
1 x Front Panel Audio Connector
Form Factor: Micro ATX
