ASRock B250M-HDV Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

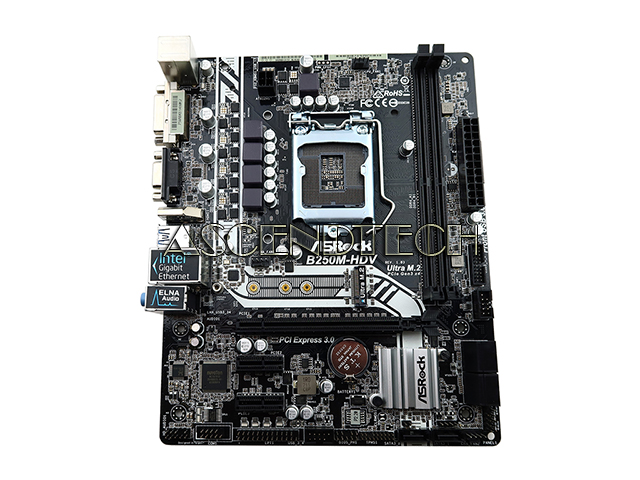

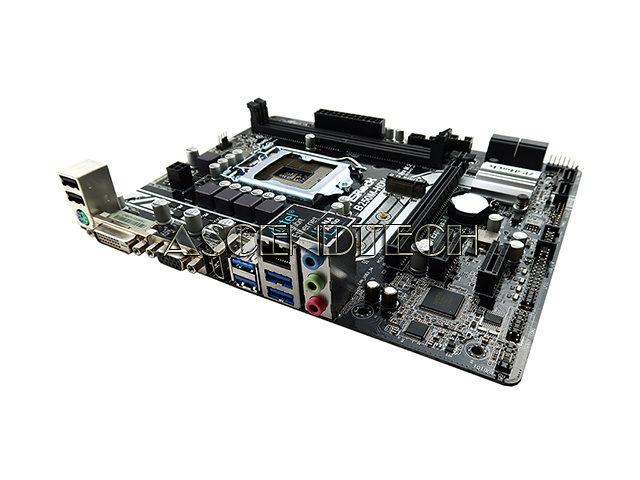

Asrock B250m-Hdv Motherboard No I/O. Part Number: 80-Mxb3j0-A1b02
  Enlarge
Asrock B250m-Hdv Motherboard No I/O. Part Number: 80-Mxb3j0-A1b02
Asrock B250m-Hdv Motherboard No I/O. Part Number: 80-Mxb3j0-A1b02
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKARB250MHDV
Brand Asrock
Model B250M-HDV
Part Number 80-MXB3J0-A1B02
Compatible Part Numbers 80-MXB3J0-A1B01
Category Intel Lga1151 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, or any other accessories!

Description

ASRock B250M-HDV Intel Chipset B250 Socket LGA1151 DDR4 HDMI D-Sub DVI-D USB SATA 6Gb/s Micro ATX Desktop Motherboard 80-MXB3J0-A1B02.

Chipset: Intel B250
Socket: Intel LGA1151
Compatible/Supported CPU: 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRA
Storage Interface: SATA 6Gb/s
Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC887 Audio Codec
Connectors: 1x Print Port Header; 1x COM Port Header; 1x TPM Header; 1x Chassis Intrusion Header; 1x CPU Fan Connector (4-pin); 2x Chassis Fan Connectors (4-pin); 1x 24 pin ATX Power Connector; 1x 4 pin 12V Power Connector; 1x Front Panel Audio Connector; 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)).
Input/Output Ports: 1x PS/2 Mouse/Keyboard Port; 1x D-Sub Port; 1x DVI-D Port; 1x HDMI Port; 2x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)); 4x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)); 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.
Expansion Slots: 1x PCI Express 3.0 x16 Slot (PCIE1: x16 mode); 2x PCI Express 3.0 x1 Slots (Flexible PCIe).
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit (For 7th Gen Intel CPU); Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel CPU)
Features: Micro ATX; ASRock Super Alloy; Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151); 8th Gen Intel Core desktop processors are supported with Intel 300 Series chipset motherboards only; Supports DDR4 2400 (Intel 7th Gen CPUs) / 2133 (Intel 6th Gen CPUs); 1 PCIe 3.0 x16, 2 PCIe 3.0 x1; Graphics Output Options: HDMI, DVI-D, D-Sub; Supports Triple Monitor; 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps; 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3); 6 USB 3.1 Gen1 (2 Front, 4 Rear); Intel Gigabit LAN; Intel Optane Memory Ready.

Additional Specifications:

Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, PCH 1.0V Voltage Multi-adjustment

Graphics
- Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics
- Gen9 LP, DX11.3, DX12
- HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU)
- HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel CPU)
- Max. shared memory 1024MB
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) 24Hz / (3840x2160) 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

CPU Support

Socket LGA 1151

FamilyModelCoreFrequencyCachePowerSince BIOS
Core i7i7-7700K(B0)Kaby Lake4.2GHz8MB91WAll
Core i7i7-7700(B0)Kaby Lake3.6GHz8MB65WAll
Core i7i7-7700T(B0)Kaby Lake2.9GHz8MB35WAll
Core i7i7-6700K(R0)Skylake S4.0GHz8MB91WAll
Core i7i7-6700(R0)Skylake S3.4GHz8MB65WAll
Core i7i7-6700T(R0)Skylake S2.8GHz8MB35WAll
Core i5i5-7600K(B0)Kaby Lake3.8GHz6MB91WAll
Core i5i5-7600(B0)Kaby Lake3.5GHz6MB65WAll
Core i5i5-7600T(B0)Kaby Lake2.8GHz6MB35WAll
Core i5i5-7500(B0)Kaby Lake3.4GHz6MB65WAll
Core i5i5-7500T(B0)Kaby Lake2.7GHz6MB35WAll
Core i5i5-7400(B0)Kaby Lake3.0GHz6MB65WAll
Core i5i5-7400T(B0)Kaby Lake2.4GHz6MB35WAll
Core i5i5-6600K(R0)Skylake S3.5GHz6MB91WAll
Core i5i5-6600(R0)Skylake S3.3GHz6MB65WAll
Core i5i5-6600T(R0)Skylake S2.7GHz6MB35WAll
Core i5i5-6500(R0)Skylake S3.2GHz6MB65WAll
Core i5i5-6500T(R0)Skylake S2.5GHz6MB35WAll
Core i5i5-6402P (R0)Skylake S2.8GHz6MB65WAll
Core i5i5-6400(R0)Skylake S2.7GHz6MB65WAll
Core i5i5-6400T(R0)Skylake S2.2GHz6MB35WAll
Core i3i3-7350K(S0)Kaby Lake4.2GHz4MB60WAll
Core i3i3-7320(S0)Kaby Lake4.1GHz4MB51WAll
Core i3i3-7300(S0)Kaby Lake4.0GHz4MB51WAll
Core i3i3-7300T(S0)Kaby Lake3.5GHz4MB35WAll
Core i3i3-7100(S0)Kaby Lake3.9GHz3MB51WAll
Core i3i3-7100T(S0)Kaby Lake3.4GHz3MB35WAll
Core i3i3-6320(S0)Skylake S3.9GHz4MB51WAll
Core i3i3-6300(S0)Skylake S3.8GHz4MB51WAll
Core i3i3-6300T(S0)Skylake S3.3GHz4MB35WAll
Core i3i3-6100(S0)Skylake S3.7GHz3MB51WAll
Core i3i3-6100T(S0)Skylake S3.2GHz3MB35WAll
Core i3i3-6098P (R0)Skylake S3.6GHz3MB54WAll
PentiumG4600T(S0)Kaby Lake3.0GHz3MB35WAll
PentiumG4560(B0)Kaby Lake3.5GHz3MB54WAll
PentiumG4560T(S0)Kaby Lake2.9GHz3MB35WAll
PentiumG4620(S0)Kaby Lake3.7GHz3MB51WAll
PentiumG4600(S0)Kaby Lake3.6GHz3MB51WAll
PentiumG4520(S0)Skylake S3.6GHz3MB47WAll
PentiumG4500(S0)Skylake S3.5GHz3MB47WAll
PentiumG4500T(S0)Skylake S3.0GHz3MB35WAll
PentiumG4400(S0)Skylake S3.3GHz3MB47WAll
PentiumG4400T(S0)Skylake S2.9GHz3MB35WAll
CeleronG3950(S0)Kaby Lake3.0GHz2MB51WAll
CeleronG3930(S0)Kaby Lake2.9GHz2MB51WAll
CeleronG3930T(S0)Kaby Lake2.7GHz2MB35WAll
CeleronG3920(S0)Skylake S2.9GHz2MB47WAll
CeleronG3900(S0)Skylake S2.8GHz2MB47WAll
CeleronG3900T(S0)Skylake S2.6GHz2MB35WAll
