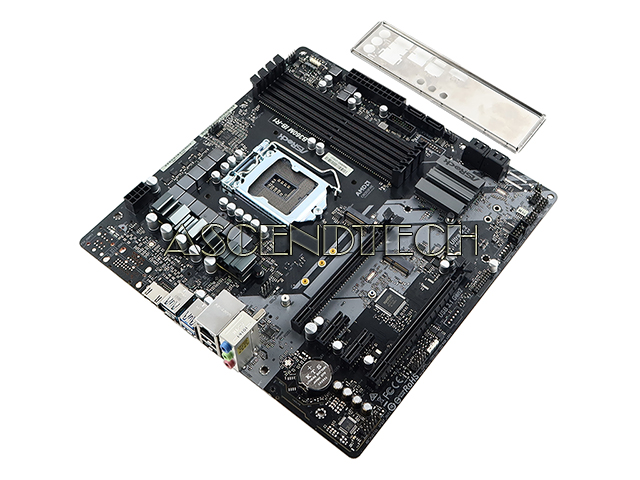

B360M IB-R1 80-MXB9F0-A1A02 | Asrock B360m Ib-R1 Mboard Mxb9f0-A1a02

ASRock iBuyPower B360M IB-R1 Intel Chipset B360 Socket LGA1151 DDR4 HDMI USB SATA 6GB/s Micro ATX Desktop Motherboard 80-MXB9F0-A1A02.

Chipset: Intel B360

Socket: Intel LGA1151

Compatible/Supported CPU: 8th and 9th Generation Intel Core Processors

Max Supported Memory: Up to 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s

Audio: Realtek ALC892 Codec

Input/Output Ports: 1 x HDMI Port; 2 x USB 2.0 Ports (Supports ESD Protection); 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); 2 x USB 3.1 Gen1 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.

Expansion Slots: 2x PCI-Express 3.0 x16 Slots; 2x PCI-Express 3.0 x1 Slots.

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Microsoft Windows 10 64-bit

Additional Specifications:

Hardware Monitor
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V

BIOS
- AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment

Graphics
- Intel UHD Graphics Built-in Visuals can be supported only with processors which are GPU integrated.
- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTruTM 3D, Intel Clear Video HD Technology, Intel InsiderTM, Intel UHD Graphics
- DirectX 12
- HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30H
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports 4K Ultra HD (UHD) playback with HDMI Port

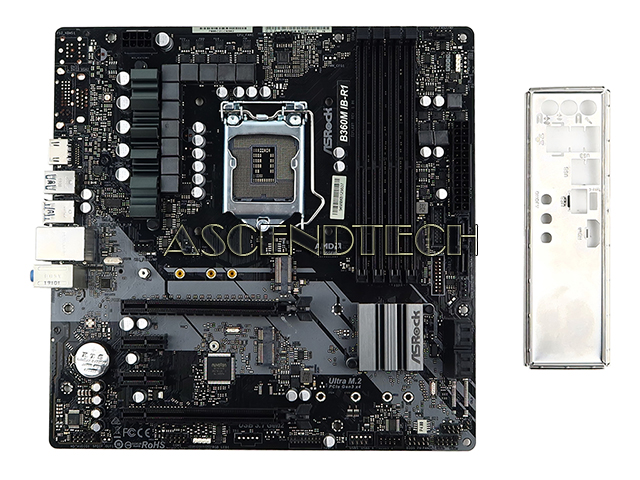

ASRock B360M IB-R1 Mboard MXB9F0-A1A02
