ASRock B360M IB-R1 Motherboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBDSK80MXB9FUD1
Brand Asrock
Model B360M IB-R1
Part Number 80-MXB9F0-A1A02
Category Intel Lga1151 Motherboard
Condition Pre-Owned Grade D

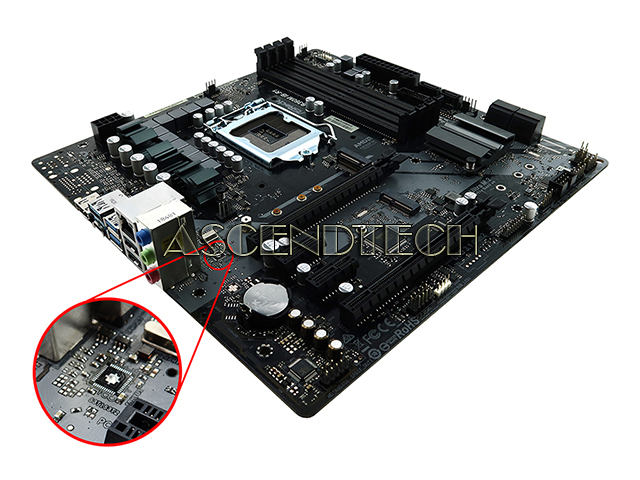

Condition Description Please note, LAN doesn't work, the LAN chip is missing. Please see the images! Otherwise, it is fully operational and functions as intended. This motherboard does not include an I/O Shield, cables, or any other accessories!
Description

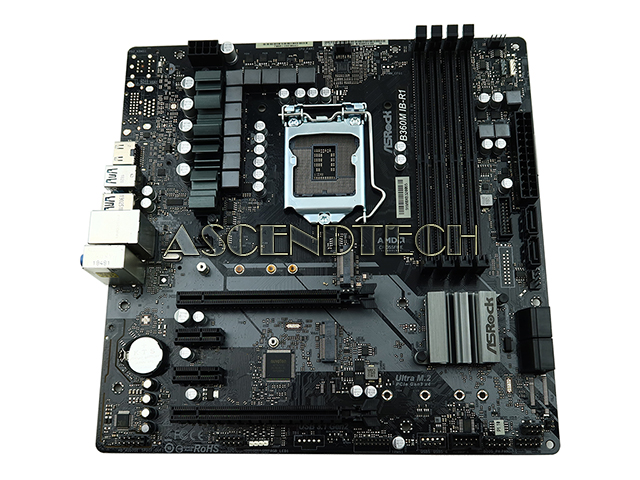

ASRock iBuyPower B360M IB-R1 Intel Chipset B360 Socket LGA1151 DDR4 HDMI USB SATA 6GB/s Micro ATX Desktop Motherboard 80-MXB9F0-A1A02.
Chipset: Intel B360
Socket: Intel LGA1151
Compatible/Supported CPU: 8th and 9th Generation Intel Core Processors
Max Supported Memory: Up to 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC892 Codec
Input/Output Ports: 1 x HDMI Port; 2 x USB 2.0 Ports (Supports ESD Protection); 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); 2 x USB 3.1 Gen1 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.
Expansion Slots: 2x PCI-Express 3.0 x16 Slots; 2x PCI-Express 3.0 x1 Slots.
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit
