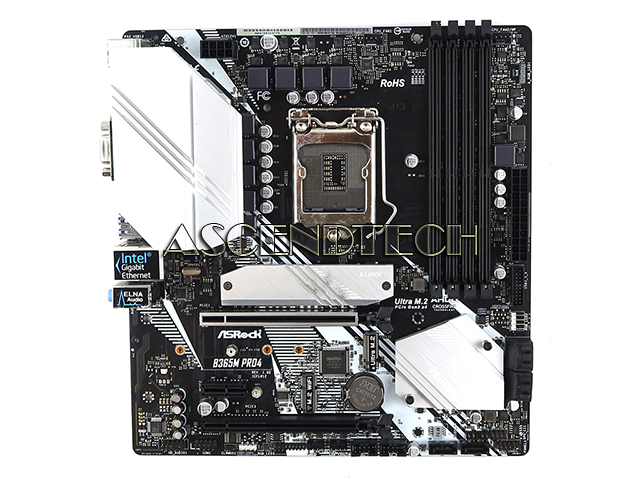

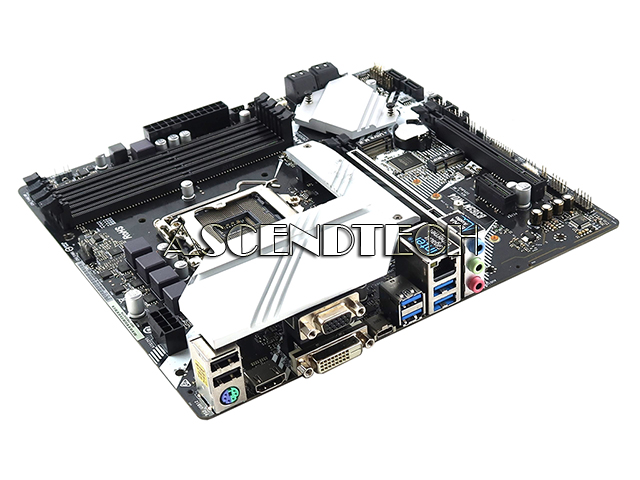

B365M PRO4 80-MXB9T0-A1B01 | Asrock B365m Pro4 Motherboard No I/O

ASRock B365M PRO4 Intel Chipset B365 Socket LGA1151 DDR4 SATA 6Gb/s HDMI DVI-D D-Sub Micro ATX Desktop Motherboard 80-MXB9T0-A1B01.

Chipset: Intel B365

Socket: Intel LGA1151

Compatible/Supported CPU: Supports 9th and 8th Gen Intel Core Processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 2666 / 2400 / 2133MHz

Storage Interface: SATA 6Gb/s

RAID Support: 0, 1, 5, 10

Network/Communications: Intel I219V, Gigabit LAN 10/100/1000Mb/s

Audio: Realtek ALC892 Audio Codec, 7.1 CH HD Audio

Connectors: 1x COM Port Header, 1x TPM Header, 1x Chassis Intrusion and Speaker Header, 2x RGB LED Headers, 1x Addressable LED Header, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x Front Panel Audio Connector 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Input/Output Ports: 1x PS/2 Mouse/Keyboard Port, 1x D-Sub Port, 1x DVI-D Port, 1x HDMI Port, 2x USB 2.0 Ports, 1x USB 3.1 Gen1 Type-C Port (Supports ESD Protection), 4x USB 3.1 Gen1 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone

Expansion Slots: 2x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)), 1x PCI Express 3.0 x1 Slot (Flexible PCIe), 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, 6x SATA3 6Gb/s, 2x Ultra M.2 Sockets

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Hardware Monitor
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCSA, VCCST

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment

Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Software and UEFI
Software
- ASRock A-Tuning
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash

Graphics
- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

CPU Support

Socket LGA1151
Vendor	CPU Model	Frequency	Wattage	L3 Cache	Family
Intel	i9-9900KF(P0)	3.6GHz	95W	16MB	Core i9
Intel	i9-9900K(P0)	3.6GHz	95W	16MB	Core i9
Intel	i9-9900KF(R0)	3.6GHz	95W	16MB	Core i9
Intel	i9-9900K(R0)	3.6GHz	95W	16MB	Core i9
Intel	i9-9900(R0)	3.1GHz	65W	16MB	Core i9
Intel	i9-9900T(R0)	2.1GHz	35W	16MB	Core i9
Intel	i7-9700K(R0)	3.6GHz	95W	12MB	Core i7
Intel	i7-9700T(R0)	2.0GHz	32W	12MB	Core i7
Intel	i7-9700(R0)	3.0GHz	65W	12MB	Core i7
Intel	i7-9700KF(R0)	3.6GHz	95W	12MB	Core i7
Intel	i7-9700KF(P0)	3.6GHz	95W	12MB	Core i7
Intel	i7-9700F(R0)	3.0GHz	65W	12MB	Core i7
Intel	i7-9700K(P0)	3.6GHz	95W	12MB	Core i7
Intel	i7-8700K(U0)	3.7GHz	95W	12MB	Core i7
Intel	i7-8700(U0)	3.2GHz	65W	12MB	Core i7
Intel	i7-8700T(U0)	2.4GHz	35W	12MB	Core i7
Intel	i7-8086K	4.0GHz	95W	12MB	Core i7
Intel	i5-9600KF(P0)	3.7GHz	95W	9MB	Core i5
Intel	i5-9600K(P0)	3.7GHz	95W	9MB	Core i5
Intel	i5-9400F(U0)	2.9GHz	65W	9MB	Core i5
Intel	i5-9400T(R0)	1.8GHz	35W	9MB	Core i5
Intel	i5-9600T(U0)	2.3GHz	35W	9MB	Core i5
Intel	i5-9600(U0)	3.1GHz	65W	9MB	Core i5
Intel	i5-9500(U0)	3.0GHz	65W	9MB	Core i5
Intel	i5-9500T(U0)	2.2GHz	35W	9MB	Core i5
Intel	i5-9400(U0)	2.9GHz	65W	9MB	Core i5
Intel	i5-9400F(P0)	2.9GHz	65W	9MB	Core i5
Intel	i5-9400T(U0)	1.8GHz	35W	9MB	Core i5
Intel	i5-9400(R0)	2.9GHz	65W	9MB	Core i5
Intel	i5-9500F(U0)	3.0GHz	65W	9MB	Core i5
Intel	i5-9600K(R0)	3.7GHz	95W	9MB	Core i5
Intel	i5-9600KF(R0)	3.7GHz	95W	9MB	Core i5
Intel	i5-9400F(R0)	2.9GHz	65W	9MB	Core i5
Intel	i5-8600K(U0)	3.6GHz	95W	9MB	Core i5
Intel	i5-8600(U0)	3.1GHz	65W	9MB	Core i5
Intel	i5-8600T(U0)	2.3GHz	35W	9MB	Core i5
Intel	i5-8500(U0)	3GHz	65W	9MB	Core i5
Intel	i5-8500T(U0)	2.1GHz	35W	9MB	Core i5
Intel	i5-8400(U0)	2.8GHz	65W	9MB	Core i5
Intel	i5-8400T(U0)	1.7GHz	35W	9MB	Core i5
Intel	i3-8350K(B0)	4.0GHz	91W	8MB	Core i3
Intel	i3-9350KF(B0)	4GHz	91W	8MB	Core i3
Intel	I3-9100F(B0)	3.6GHz	65W	6MB	Core i3
Intel	i3-9100F(U0)	3.6GHz	65W	6MB	Core i3
Intel	i3-9300(B0)	3.7GHz	62W	8MB	Core i3
Intel	i3-9100T(B0)	3.1GHz	35W	6MB	Core i3
Intel	i3-9300T(B0)	3.2GHz	35W	8MB	Core i3
Intel	i3-9350K(B0)	4.0GHz	91W	8MB	Core i3
Intel	i3-9100(B0)	3.6GHz	65W	6MB	Core i3
Intel	i3-8300(B0)	3.7GHz	62W	8MB	Core i3
Intel	i3-8300T(B0)	3.2GHz	35W	8MB	Core i3
Intel	i3-8100(B0)	3.6GHz	65W	6MB	Core i3
Intel	i3-8100(U0)	3.6GHz	65W	6MB	Core i3
Intel	i3-8100T(B0)	3.1GHz	35W	6MB	Core i3
Intel	G5600T(B0)	3.3GHz	35W	4MB	Pentium Gold
Intel	G5420T(B0)	3.2GHz	35W	4MB	Pentium Gold
Intel	G5600F(B0)	3.9GHz	54W	4MB	Pentium Gold
Intel	G5420(U0)	3.8GHz	58W	4MB	Pentium Gold
Intel	G5420T(U0)	3.2GHz	35W	4MB	Pentium Gold
Intel	G5420(B0)	3.8GHz	54W	4MB	Pentium Gold
Intel	G5620(B0)	4.0GHz	54W	4MB	Pentium Gold
Intel	G5600(B0)	3.9GHz	54W	4MB	Pentium Gold
Intel	G5500(B0)	3.8GHz	54W	4MB	Pentium Gold
Intel	G5500T(B0)	3.2GHz	35W	4MB	Pentium Gold
Intel	G5400(U0)	3.7GHz	58W	4MB	Pentium Gold
Intel	G5400T(U0)	3.1GHz	35W	4MB	Pentium Gold
Intel	G5400T(B0)	3.1GHz	35W	4MB	Pentium Gold
Intel	G5400(B0)	3.7GHz	54W	4MB	Pentium Gold
Intel	G4920(B0)	3.2GHz	54W	2MB	Celeron
Intel	G4930T(B0)	3.0GHz	35W	2MB	Celeron
Intel	G4950(B0)	3.3GHz	54W	2MB	Celeron
Intel	G4930(B0)	3.2GHz	54W	2MB	Celeron
Intel	G4900(B0)	3.1GHz	54W	2MB	Celeron
Intel	G4900T(B0)	2.9GHz	35W	2MB	Celeron
