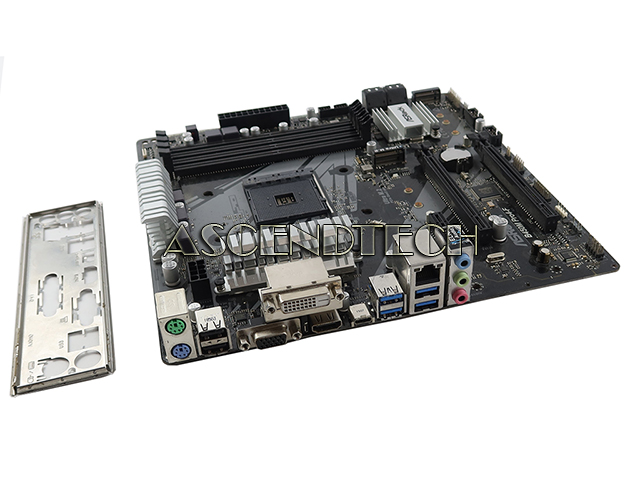

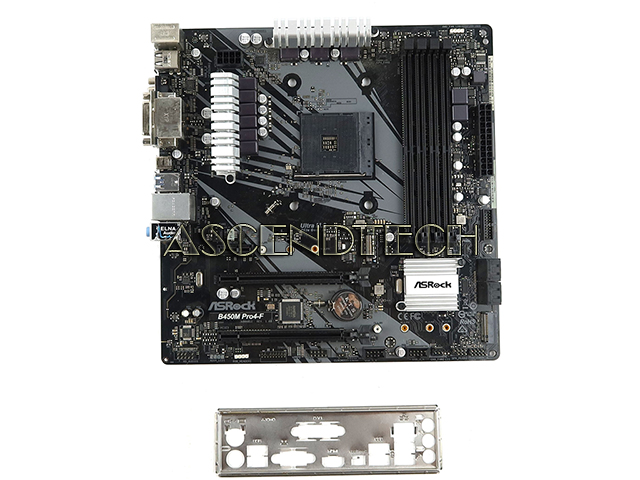

ASRock B450M PRO4-F Desktop Motherboard
Qty:
Item CodeMBDSKB450MPROPA
BrandAsrock
ModelB450M PRO4-F
Part Number80-MXBAB0-A1A01
CategoryAmd Socket Am4 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard comes with I/O Shield only! No cables, fan’s mounting backplate, fan’s bracket, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
ASRock B450M PRO4-F AMD Chipset B450 Socket AM4 DDR4 HDMI DVI-D D-Sub USB SATA 6Gb/s Micro ATX Desktop Motherboard 80-MXBAB0-A1A01.
Chipset: AMD B450
Socket: AMD AM4
Compatible/Supported CPU: Ryzen 2000, 3000 and 5000 Series Desktop Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 3200 / 2933 / 2667 / 2400 / 2133MHz
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 10
Wireless Lan Support: PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC892 Audio Codec
Connectors: 1x COM Port Header; 1x TPM Header; 1x Power LED and Speaker Header; 1x RGB LED Header; 1x Addressable LED Header; 1x AMD Fan LED Header; 1x CPU Fan Connector (4-pin); 1x Chassis Fan Connector (4-pin) (Smart Fan Speed Control); 1x Chassis Fan Connector (3-pin); 1x 24 pin ATX Power Connector; 1x 8 pin 12V Power Connector; 1x Front Panel Audio Connector; 1x AMD LED Fan USB Header; 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection).
Input/Output Ports: 1x PS/2 Mouse Port; 1x PS/2 Keyboard Port; 1x D-Sub Port; 1x DVI-D Port; 1x HDMI Port; 2x USB 2.0 Ports (Supports ESD Protection); 1x USB 3.1 Gen1 Type-C Port (Supports ESD Protection); 4x USB 3.1 Gen1 Ports (Supports ESD Protection); 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.
Expansion Slots: AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge): 1x PCI Express 3.0 x16 Slot (PCIE2: x16 mode); 1x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Ryzen series CPUs (Picasso, Raven Ridge): 1x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); 1x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Athlon series CPUs: 1x PCI Express 3.0 x16 Slot (PCIE2: x4 mode); 1x PCI Express 2.0 x16 Slot (PCIE3: x4 mode). 1x PCI Express 2.0 x1 Slot; Supports AMD Quad CrossFireX and CrossFireX.
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit
Features: Supports AMD AM4 Socket Ryzen 2000, 3000 and 5000 Series Desktop Processors; Supports DDR4 3200+ (OC); 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1; AMD Quad CrossFireX; Graphics Output: HDMI, DVI-D, D-Sub; 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps; 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3); 7x USB 3.1 Gen1 (1 x Type-C, 2 Front, 4 Rear); Realtek Gigabit LAN; ASRock Polychrome SYNC.
Additional Specifications:
Unique Feature
ASRock Super Alloy
- Premium 42A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) 24Hz / (3840x2160) 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports
CPU Support
| Socket AM4 | |||||||
|---|---|---|---|---|---|---|---|
| Family | Model | Power | Core | Frequency | Cache | CPU Rev. | Since BIOS |
| Ryzen 9 | 5950X (100-000000059-00) | 105W | Vermeer | 3.4GHz | 8MB | P2.40 | |
| Ryzen 9 | 5900X (100-000000061-00) | 105W | Vermeer | 3.7GHz | 6MB | P2.40 | |
| Ryzen 7 | 5800X (100-000000063-00) | 105W | Vermeer | 3.8GHz | 4MB | P2.40 | |
| Ryzen 5 | 5600X (100-000000065-00) | 65W | Vermeer | 3.7GHz | 3MB | P2.40 | |
| Ryzen 9 | 3950X (100-000000051) | 105W | Matisse | 3.5GHz | 8MB | B0 | P1.60 |
| Ryzen 9 | PRO 3900 (100-000000072) | 65W | Matisse | 3.1GHz | 6MB | B0 | P1.60 |
| Ryzen 9 | 3900XT(100-000000277) | 105W | Matisse 2 | 4.1GHz | P2.10 | ||
| Ryzen 9 | 3900X (100-000000023) | 105W | Matisse | 3.8GHz | 6MB | B0 | P1.40 |
| Ryzen 9 | 3900 (100-000000070) | 65W | Matisse | 3.1GHz | 6MB | B0 | P1.60 |
| Ryzen 7 | 3800XT(100-000000279) | 105W | Matisse 2 | 4.2GHz | P2.10 | ||
| Ryzen 7 | 3800X (100-000000025) | 105W | Matisse | 3.9GHz | 4MB | B0 | P1.40 |
| Ryzen 7 | PRO 3700 (100-000000073) | 65W | Matisse | 3.6GHz | 4MB | B0 | P1.60 |
| Ryzen 7 | 3700X (100-000000071) | 65W | Matisse | 3.6GHz | 4MB | B0 | P1.40 |
| Ryzen 7 | PRO 2700X (YD27BXBAM88AF) | 95W | Pinnacle Ridge | 3.6GHz | 4MB | B2 | All |
| Ryzen 7 | PRO 2700 (YD270BBBM88AF) | 65W | Pinnacle Ridge | 3.2GHz | 4MB | B2 | All |
| Ryzen 7 | 2700X (YD270XBGM88AF) | 105W | Pinnacle Ridge | 3.7GHz | 4MB | B2 | All |
| Ryzen 7 | 2700 (YD2700BBM88AF) | 65W | Pinnacle Ridge | 3.2GHz | 4MB | B2 | All |
| Ryzen 7 | 2700E (YD270EBHM88AF) | 45W | Pinnacle Ridge | 2.8GHz | 4MB | B2 | All |
| Ryzen 7 | 1800X (YD180XBCM88AE) | 95W | Summit Ridge | 3.6GHz | 4MB | B1 | All |
| Ryzen 7 | PRO 1700X (YD17XBBAM88AE) | 95W | Summit Ridge | 3.4GHz | 4MB | B1 | All |
| Ryzen 7 | PRO 1700 (YD170BBBM88AE) | 65W | Summit Ridge | 3.0GHz | 4MB | B1 | All |
| Ryzen 7 | 1700X (YD170XBCM88AE) | 95W | Summit Ridge | 3.4GHz | 4MB | B1 | All |
| Ryzen 7 | 1700 (YD1700BBM88AE) | 65W | Summit Ridge | 3.0GHz | 4MB | B1 | All |
| Ryzen 5 | PRO 3600 (100-000000029) | 65W | Matisse | 3.6GHz | 3MB | B0 | P1.40 |
| Ryzen 5 | 3600XT(100-000000281) | 95W | Matisse 2 | 4.0GHz | P2.10 | ||
| Ryzen 5 | 3600X (100-000000022) | 95W | Matisse | 3.8GHz | 3MB | B0 | P1.40 |
| Ryzen 5 | 3600 (100-000000031) | 65W | Matisse | 3.6GHz | 3MB | B0 | P1.40 |
| Ryzen 5 | 3500X (100-000000158) | 65W | Matisse | 3.6GHz | 3MB | B0 | P1.60 |
| Ryzen 5 | 3500 (100-000000050) | 65W | Matisse | 3.6GHz | 3MB | B0 | P1.60 |
| Ryzen 5 | PRO 3400G (YD340BC5M4MFH) | 65W | Picasso | 3.7GHz | 2MB | B1 | P1.40 |
| Ryzen 5 | PRO 3400GE (YD340BC6M4MFH) | 35W | Picasso | 3.3GHz | 2MB | B1 | P1.40 |
| Ryzen 5 | 3400G (YD340GC5M4MFH) | 65W | Picasso | 3.7GHz | 2MB | B1 | P1.60 |
| Ryzen 5 | 3400G (YD3400C5M4MFH) | 65W | Picasso | 3.7GHz | 2MB | B1 | P1.40 |
| Ryzen 5 | 3400GE (YD3400C6M4MFH) | 35W | Picasso | 3.3GHz | 2MB | B1 | P1.40 |
| Ryzen 5 | 3350G(YD3350C5M4MFH) | 65W | Picasso | 3.6GHz | 2MB | B1 | P2.40 |
| Ryzen 5 | PRO 2600 (YD260BBBM6IAF) | 65W | Pinnacle Ridge | 3.4GHz | 3MB | B2 | All |
| Ryzen 5 | 2600X (YD260XBCM6IAF) | 95W | Pinnacle Ridge | 3.6GHz | 3MB | B2 | All |
| Ryzen 5 | 2600 (YD2600BBM6IAF) | 65W | Pinnacle Ridge | 3.4GHz | 3MB | B2 | All |
| Ryzen 5 | 2600E (YD260EBHM6IAF) | 45W | Pinnacle Ridge | 3.1GHz | 3MB | B2 | All |
| Ryzen 5 | 2500X (YD250XBBM4KAF) | 65W | Pinnacle Ridge | 3.6GHz | 2MB | B2 | All |
| Ryzen 5 | PRO 2400G (YD240BC5M4MFB) | 65W | Raven Ridge | 3.6GHz | 2MB | B0 | All |
| Ryzen 5 | PRO 2400GE (YD240BC6M4MFB) | 35W | Raven Ridge | 3.2GHz | 2MB | B0 | All |
| Ryzen 5 | 2400G (YD2400C5M4MFB) | 65W | Raven Ridge | 3.6GHz | 2MB | B0 | All |
| Ryzen 5 | 2400GE (YD2400C6M4MFB) | 35W | Raven Ridge | 3.2GHz | 2MB | B0 | All |
| Ryzen 5 | PRO 1600 (YD160BBBM6IAE) | 65W | Summit Ridge | 3.2GHz | 3MB | B1 | All |
| Ryzen 5 | 1600X (YD160XBCM6IAE) | 95W | Summit Ridge | 3.6GHz | 3MB | B1 | All |
| Ryzen 5 | 1600(YD1600BBM6IAF) | 65W | Pinnacle Ridge | 3.2GHz | 3MB | B2 | P2.00 |
| Ryzen 5 | 1600 (YD1600BBM6IAE) | 65W | Summit Ridge | 3.2GHz | 3MB | B1 | All |
| Ryzen 5 | PRO 1500 (YD150BBBM4GAE) | 65W | Summit Ridge | 3.5GHz | 2MB | B1 | All |
| Ryzen 5 | 1500X (YD150XBBM4GAE) | 65W | Summit Ridge | 3.5GHz | 2MB | B1 | All |
| Ryzen 5 | 1400 (YD1400BBM4KAE) | 65W | Summit Ridge | 3.2GHz | 2MB | B1 | All |
| Ryzen 3 | 3300X (100-000000159) | 65W | Matisse | 3.8GHz | 2MB | B0 | P2.00 |
| Ryzen 3 | PRO 3200G (YD320BC5M4MFH) | 65W | Picasso | 3.6GHz | 2MB | B1 | P1.40 |
| Ryzen 3 | PRO 3200GE (YD320BC6M4MFH) | 35W | Picasso | 3.3GHz | 2MB | B1 | P1.40 |
| Ryzen 3 | 3200G (YD320GC5M4MFH) | 65W | Picasso | 3.6GHz | 2MB | B1 | P1.60 |
| Ryzen 3 | 3200G (YD3200C5M4MFH) | 65W | Picasso | 3.6GHz | 2MB | B1 | P1.40 |
| Ryzen 3 | 3200GE (YD3200C6M4MFH) | 35W | Picasso | 3.3GHz | 2MB | B1 | P1.40 |
| Ryzen 3 | 3100 (100-000000284) | 65W | Matisse | 3.6GHz | 2MB | B0 | P2.00 |
| Ryzen 3 | 2300X (YD230XBBM4KAF) | 65W | Pinnacle Ridge | 3.5GHz | 2MB | B2 | All |
| Ryzen 3 | PRO 2200G (YD220BC5M4MFB) | 65W | Raven Ridge | 3.5GHz | 2MB | B0 | All |
| Ryzen 3 | PRO 2200GE (YD220BC6M4MFB) | 35W | Raven Ridge | 3.2GHz | 2MB | B0 | All |
| Ryzen 3 | 2200G (YD2200C5M4MFB) | 65W | Raven Ridge | 3.5GHz | 2MB | B0 | All |
| Ryzen 3 | 2200GE (YD2200C6M4MFB) | 35W | Raven Ridge | 3.2GHz | 2MB | B0 | All |
| Ryzen 3 | PRO 1300 (YD130BBBM4KAE) | 65W | Summit Ridge | 3.4GHz | 2MB | B1 | All |
| Ryzen 3 | 1300X (YD130XBBM4KAE) | 65W | Summit Ridge | 3.4GHz | 2MB | B1 | All |
| Ryzen 3 | PRO 1200 (YD120BBBM4KAE) | 65W | Summit Ridge | 3.1GHz | 2MB | B1 | All |
| Ryzen 3 | 1200 (YD1200BBM4KAE) | 65W | Summit Ridge | 3.1GHz | 2MB | B1 | All |
| Ryzen 3 | 1200 (YD1200BBM4KAF) | 65W | Pinnacle Ridge | 3.1GHz | 2MB | B2 | P2.00 |
| Athlon | 3000G (YD3000C6M2OFH) | 35W | Picasso | 3.5GHz | 1MB | B1 | P1.60 |
| Athlon | 3000G(YD3000C6M2OFB) | 35W | Raven Ridge | 3.5GHz | 1MB | B0 | P2.40 |
| Athlon | Athlon 240GE (YD240GC6M2OFB) | 35W | Raven Ridge | 3.5GHz | 1MB | B0 | All |
| Athlon | Athlon 220GE (YD220GC6M2OFB) | 35W | Raven Ridge | 3.4GHz | 1MB | B0 | All |
| Athlon | Athlon PRO 200GE (YD200BC6M2OFB) | 35W | Raven Ridge | 3.2GHz | 1MB | B0 | All |
| Athlon | Athlon 200GE (YD200GC6M2OFB) | 35W | Raven Ridge | 3.2GHz | 1MB | B0 | All |
| Athlon | Athlon 200GE(YD20GGC6M2OFB) | 35W | Raven Ridge | 3.2GHz | 1MB | B0 | All |
