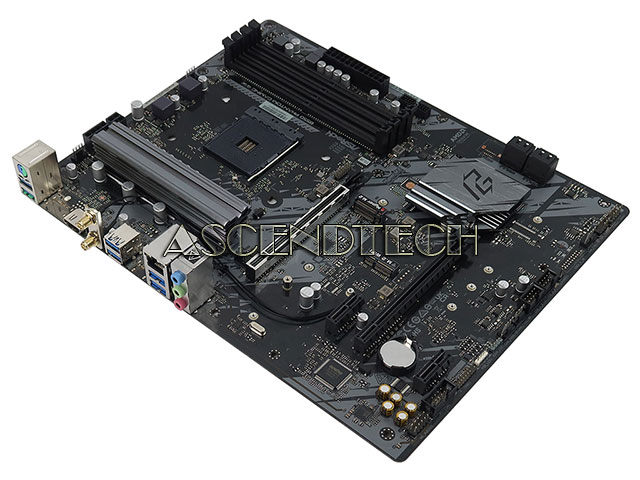

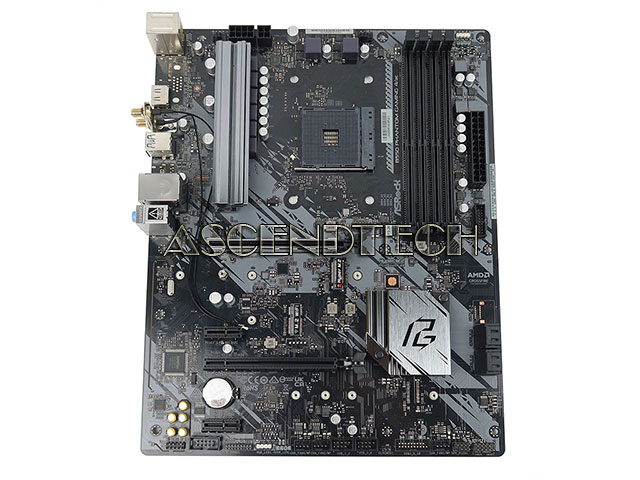

B550 Phantom Gaming 4/ac 80-MXBDZ0-A1D01 | Asrock B550 Phantom Gaming 4/Ac Mb No Io

ASRock B550 Phantom Gaming 4/ac AMD Chipset B550 Socket AM4 DDR4 SATA 6Gb/s HDMI ATX Desktop Motherboard 80-MXBDZ0-A1D01.

Chipset: AMD B550

Socket: AMD AM4

Compatible/Supported CPU: AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz

Storage Interface: SATA 3 6Gb/s

RAID Support: 0, 1, 10

Bluetooth Standard: Bluetooth 4.2

Wireless Lan Support: Intel Dual-Band 802.11ac WiFi Module

Network/Communications: Realtek RTL8111H, Gigabit LAN 10/100/1000 Mb/s

Audio: Realtek ALC1200 Audio Codec, Realtek 7.1 CH HD Audio with Content Protection, Nahimic Audio

Connectors: 1x COM Port Header, 1x SPI TPM Header, 1x Power LED and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 6x USB 3.2 Gen1 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone

Interface: 2x PCI Express x16 Slots, 2x PCI Express 3.0 x1 Slots, 1x M.2 Socket (Key E), 6x SATA3 6.0 Gb/s, 1x Hyper M.2 Socket supports M Key type 2260/2280/22110, 1x M.2 Socket, supports M Key type 2242/2260/2280

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft PlayReady

Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Polychrome SYNC
- ASRock Key Master
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

Hardware Monitoring
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment

Unique Features
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slot Gen4
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU Support:

Socket AM4
Vendor	CPU Model	CPU Frequency	L3 Cache	BIOS	Core Name	Stepping	Wattage
AMD	5950X (100-000000059-00)	3.4GHz	8MB	P1.20	Vermeer	B0	105W
AMD	5900X (100-000000061-00)	3.7GHz	6MB	P1.20	Vermeer	B0	105W
AMD	5800X (100-000000063-00)	3.8GHz	4MB	P1.20	Vermeer	B0	105W
AMD	5600X (100-000000065-00)	3.7GHz	3MB	P1.20	Vermeer	B0	65W
AMD	PRO 5750GE(100-000000257-00)			P1.80	Cezanne
AMD	PRO 5750G(100-000000254-00)			P1.80	Cezanne
AMD	5700G(100-000000263-00)	3.8GHz	4MB	P1.80	Cezanne		45~65W
AMD	5700GE(100-000000260-00)	3.2GHz	4MB	P1.80	Cezanne		35W
AMD	PRO 5650GE(100-000000258-00)			P1.80	Cezanne
AMD	PRO 5650G(100-000000255-00)			P1.80	Cezanne
AMD	5600G(100-000000252-00)	3.9GHz	3MB	P1.80	Cezanne		45~65W
AMD	5600GE(100-000000261-00)	3.4GHz	3MB	P1.80	Cezanne		35W
AMD	PRO 5350GE(100-000000259-00)			P1.80	Cezanne
AMD	5300GE(100-000000262-00)	3.6GHz	2MB	P1.80	Cezanne		35W
AMD	PRO 5350G(100-000000256-00)			P1.80	Cezanne
AMD	5300G(100-000000253-00)	4.0GHz	2MB	P1.80	Cezanne		45~65W
AMD	PRO 4750G(100-000000145)	3.6GHz	4MB	All	Renoir	A1	65W
AMD	PRO 4750GE(100-000000152)	3.1GHz		All	Renoir	A1	35W
AMD	4700G(100-000000146)	3.6GHz	4MB	All	Renoir	A1	65W
AMD	4700GE(100-000000149)	3.1GHz		All	Renoir	A1	35W
AMD	PRO 4650G(100-000000143)	3.7GHz	3MB	All	Renoir	A1	65W
AMD	PRO 4650GE(100-000000153)	3.3GHz		All	Renoir	A1	35W
AMD	4600G(100-000000147)	3.7GHz	3MB	All	Renoir	A1	65W
AMD	4600GE(100-000000150)	3.3GHz		All	Renoir	A1	35W
AMD	PRO 4350G(100-000000148)	3.8GHz	2MB	All	Renoir	A1	65W
AMD	PRO 4350GE(100-000000154)	3.5GHz		All	Renoir	A1	35W
AMD	4300G(100-000000144)	3.8GHz	2MB	All	Renoir	A1	65W
AMD	4300GE(100-000000151)	3.5GHz		All	Renoir	A1	35W
AMD	3950X (100-000000051)	3.5GHz	8MB	All	Matisse	B0	105W
AMD	PRO 3900 (100-000000072)	3.1GHz	6MB	All	Matisse	B0	65W
AMD	3900XT(100-000000277)	4.1GHz		All	Matisse 2		105W
AMD	3900X (100-000000023)	3.8GHz	6MB	All	Matisse	B0	105W
AMD	3900 (100-000000070)	3.1GHz	6MB	All	Matisse	B0	65W
AMD	3800XT(100-000000279)	4.2GHz		All	Matisse 2		105W
AMD	3800X (100-000000025)	3.9GHz	4MB	All	Matisse	B0	105W
AMD	PRO 3700 (100-000000073)	3.6GHz	4MB	All	Matisse	B0	65W
AMD	3700X (100-000000071)	3.6GHz	4MB	All	Matisse	B0	65W
AMD	PRO 3600 (100-000000029)	3.6GHz	3MB	All	Matisse	B0	65W
AMD	3600XT(100-000000281)	4.0GHz		All	Matisse 2		95W
AMD	3600X (100-000000022)	3.8GHz	3MB	All	Matisse	B0	95W
AMD	3600 (100-000000031)	3.6GHz	3MB	All	Matisse	B0	65W
AMD	3500X (100-000000158)	3.6GHz	3MB	All	Matisse	B0	65W
AMD	3500 (100-000000050)	3.6GHz	3MB	All	Matisse	B0	65W
AMD	PRO 3400G(YD340BC5M4MFI)	3.7GHz	2MB	P2.00	Picasso		45-65W
AMD	PRO 3400G (YD340BC5M4MFH)	3.7GHz	2MB	P2.00	Picasso	B1	65W
AMD	PRO 3400GE (YD340BC6M4MFH)	3.3GHz	2MB	P2.00	Picasso	B1	35W
AMD	3400G(YD340GC5M4MFI)	3.7GHz	2MB	P2.00	Picasso		45~65W
AMD	3400G (YD340GC5M4MFH)	3.7GHz	2MB	P2.00	Picasso	B1	65W
AMD	3400G (YD3400C5M4MFH)	3.7GHz	2MB	P2.00	Picasso	B1	65W
AMD	3400GE (YD3400C6M4MFH)	3.3GHz	2MB	P2.00	Picasso	B1	35W
AMD	3350G(YD3350C5M4MFH)	3.6GHz	2MB	P2.00	Picasso	B1	65W
AMD	3300X (100-000000159)	3.8GHz	2MB	All	Matisse	B0	65W
AMD	PRO 3200G(YD320BC5M4MFI)	3.6GHz	2MB	P2.00	Picasso		45-65W
AMD	PRO 3200G (YD320BC5M4MFH)	3.6GHz	2MB	P2.00	Picasso	B1	65W
AMD	PRO 3200GE (YD320BC6M4MFH)	3.3GHz	2MB	P2.00	Picasso	B1	35W
AMD	3200G(YD320GC5M4MFI)	3.6GHz	2MB	P2.00	Picasso		45~65W
AMD	3200G (YD320GC5M4MFH)	3.6GHz	2MB	P2.00	Picasso	B1	65W
AMD	3200G (YD3200C5M4MFH)	3.6GHz	2MB	P2.00	Picasso	B1	65W
AMD	3200GE (YD3200C6M4MFH)	3.3GHz	2MB	P2.00	Picasso	B1	35W
AMD	3100 (100-000000284)	3.6GHz	2MB	All	Matisse	B0	65W
AMD	5800X(100-000000063)	3.8GHz	4MB	P1.20	Vermeer	B2	105W
AMD	5900X(100-000000061)	3.7GHz	6MB	P1.20	Vermeer	B2	105W
AMD	5800(100-000000456)	3.4GHz	4MB	P1.20	Vermeer	B2	65W
AMD	5600X(100-000000065)	3.7GHz	3MB	P1.20	Vermeer	B2	65W
AMD	5950X(100-000000059)	3.4GHz	8MB	P1.20	Vermeer	B2	105W
AMD	5900(100-000000062)	3.0GHz	6MB	P1.20	Vermeer	B2	65W
AMD	5800X3D(100-000000651)	3.4GHz	4MB	P2.20	Vermeer		105W
AMD	4100(100-000000510)	4GHz	2MB	P2.20	Renoir		65W
AMD	5500(100-000000457)	3.6GHz	3MB	P2.20	Cezanne		65W
AMD	4500(100-000000644)	4.1GHz	3MB	P2.20	Renoir		45-65W
AMD	5700X(100-000000926)	3.4GHz	4MB	P2.20	Vermeer		65W
AMD	5600(100-000000927)	3.5GHz	3MB	P2.20	Vermeer		65W
