ASRock B550 Phantom Gaming 4/ac MB No IO

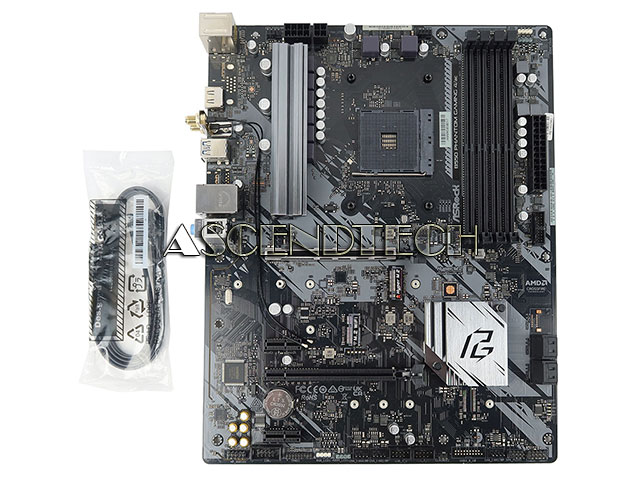

Asrock B550 Phantom Gaming 4/Ac Mb No Io. Part Number: 80-Mxbdz0-A1d01
  Enlarge

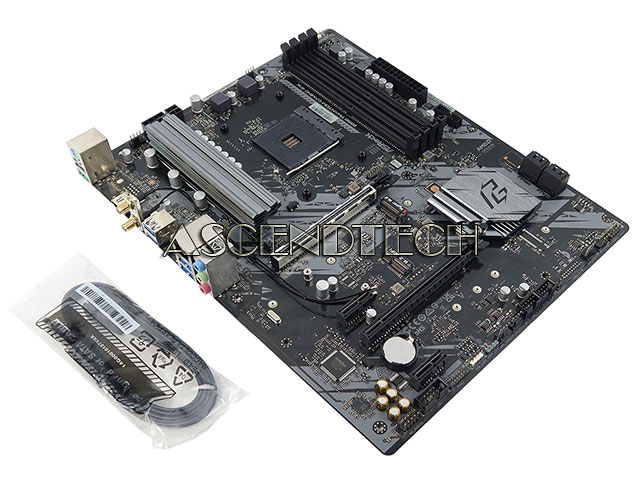

Asrock B550 Phantom Gaming 4/Ac Mb No Io. Part Number: 80-Mxbdz0-A1d01
Asrock B550 Phantom Gaming 4/Ac Mb No Io. Part Number: 80-Mxbdz0-A1d01
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKB550PHG4AC
Brand Asrock
Model B550 Phantom Gaming 4/ac
Part Number 80-MXBDZ0-A1D01
Category Amd Socket Am4 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with SATA cables and fan backplate does not include I/O Shield, fan bracket, WIFI Card or any other accessories!

Description

ASRock B550 Phantom Gaming 4/ac AMD Chipset B550 Socket AM4 DDR4 SATA 6Gb/s HDMI ATX Desktop Motherboard 80-MXBDZ0-A1D01.

Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Storage Interface: SATA 3 6Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: Intel Dual-Band 802.11ac WiFi Module
Network/Communications: Realtek RTL8111H, Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC1200 Audio Codec, Realtek 7.1 CH HD Audio with Content Protection, Nahimic Audio
Connectors: 1x COM Port Header, 1x SPI TPM Header, 1x Power LED and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 6x USB 3.2 Gen1 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Interface: 2x PCI Express x16 Slots, 2x PCI Express 3.0 x1 Slots, 1x M.2 Socket (Key E), 6x SATA3 6.0 Gb/s, 1x Hyper M.2 Socket supports M Key type 2260/2280/22110, 1x M.2 Socket, supports M Key type 2242/2260/2280
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft PlayReady

Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Polychrome SYNC
- ASRock Key Master
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

Hardware Monitoring
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment

Unique Features
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slot Gen4
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop



CPU Support:

Socket AM4
VendorCPU ModelCPU FrequencyL3 CacheBIOSCore NameSteppingWattage
AMD5950X (100-000000059-00)3.4GHz8MBP1.20VermeerB0105W
AMD5900X (100-000000061-00)3.7GHz6MBP1.20VermeerB0105W
AMD5800X (100-000000063-00)3.8GHz4MBP1.20VermeerB0105W
AMD5600X (100-000000065-00)3.7GHz3MBP1.20VermeerB065W
AMDPRO 5750GE(100-000000257-00)  P1.80Cezanne
AMDPRO 5750G(100-000000254-00)  P1.80Cezanne
AMD5700G(100-000000263-00)3.8GHz4MBP1.80Cezanne 45~65W
AMD5700GE(100-000000260-00)3.2GHz4MBP1.80Cezanne 35W
AMDPRO 5650GE(100-000000258-00)  P1.80Cezanne
AMDPRO 5650G(100-000000255-00)  P1.80Cezanne
AMD5600G(100-000000252-00)3.9GHz3MBP1.80Cezanne 45~65W
AMD5600GE(100-000000261-00)3.4GHz3MBP1.80Cezanne 35W
AMDPRO 5350GE(100-000000259-00)  P1.80Cezanne
AMD5300GE(100-000000262-00)3.6GHz2MBP1.80Cezanne 35W
AMDPRO 5350G(100-000000256-00)  P1.80Cezanne
AMD5300G(100-000000253-00)4.0GHz2MBP1.80Cezanne 45~65W
AMDPRO 4750G(100-000000145)3.6GHz4MBAllRenoirA165W
AMDPRO 4750GE(100-000000152)3.1GHz AllRenoirA135W
AMD4700G(100-000000146)3.6GHz4MBAllRenoirA165W
AMD4700GE(100-000000149)3.1GHz AllRenoirA135W
AMDPRO 4650G(100-000000143)3.7GHz3MBAllRenoirA165W
AMDPRO 4650GE(100-000000153)3.3GHz AllRenoirA135W
AMD4600G(100-000000147)3.7GHz3MBAllRenoirA165W
AMD4600GE(100-000000150)3.3GHz AllRenoirA135W
AMDPRO 4350G(100-000000148)3.8GHz2MBAllRenoirA165W
AMDPRO 4350GE(100-000000154)3.5GHz AllRenoirA135W
AMD4300G(100-000000144)3.8GHz2MBAllRenoirA165W
AMD4300GE(100-000000151)3.5GHz AllRenoirA135W
AMD3950X (100-000000051)3.5GHz8MBAllMatisseB0105W
AMDPRO 3900 (100-000000072)3.1GHz6MBAllMatisseB065W
AMD3900XT(100-000000277)4.1GHz AllMatisse 2 105W
AMD3900X (100-000000023)3.8GHz6MBAllMatisseB0105W
AMD3900 (100-000000070)3.1GHz6MBAllMatisseB065W
AMD3800XT(100-000000279)4.2GHz AllMatisse 2 105W
AMD3800X (100-000000025)3.9GHz4MBAllMatisseB0105W
AMDPRO 3700 (100-000000073)3.6GHz4MBAllMatisseB065W
AMD3700X (100-000000071)3.6GHz4MBAllMatisseB065W
AMDPRO 3600 (100-000000029)3.6GHz3MBAllMatisseB065W
AMD3600XT(100-000000281)4.0GHz AllMatisse 2 95W
AMD3600X (100-000000022)3.8GHz3MBAllMatisseB095W
AMD3600 (100-000000031)3.6GHz3MBAllMatisseB065W
AMD3500X (100-000000158)3.6GHz3MBAllMatisseB065W
AMD3500 (100-000000050)3.6GHz3MBAllMatisseB065W
AMDPRO 3400G(YD340BC5M4MFI)3.7GHz2MBP2.00Picasso 45-65W
AMDPRO 3400G (YD340BC5M4MFH)3.7GHz2MBP2.00PicassoB165W
AMDPRO 3400GE (YD340BC6M4MFH)3.3GHz2MBP2.00PicassoB135W
AMD3400G(YD340GC5M4MFI)3.7GHz2MBP2.00Picasso 45~65W
AMD3400G (YD340GC5M4MFH)3.7GHz2MBP2.00PicassoB165W
AMD3400G (YD3400C5M4MFH)3.7GHz2MBP2.00PicassoB165W
AMD3400GE (YD3400C6M4MFH)3.3GHz2MBP2.00PicassoB135W
AMD3350G(YD3350C5M4MFH)3.6GHz2MBP2.00PicassoB165W
AMD3300X (100-000000159)3.8GHz2MBAllMatisseB065W
AMDPRO 3200G(YD320BC5M4MFI)3.6GHz2MBP2.00Picasso 45-65W
AMDPRO 3200G (YD320BC5M4MFH)3.6GHz2MBP2.00PicassoB165W
AMDPRO 3200GE (YD320BC6M4MFH)3.3GHz2MBP2.00PicassoB135W
AMD3200G(YD320GC5M4MFI)3.6GHz2MBP2.00Picasso 45~65W
AMD3200G (YD320GC5M4MFH)3.6GHz2MBP2.00PicassoB165W
AMD3200G (YD3200C5M4MFH)3.6GHz2MBP2.00PicassoB165W
AMD3200GE (YD3200C6M4MFH)3.3GHz2MBP2.00PicassoB135W
AMD3100 (100-000000284)3.6GHz2MBAllMatisseB065W
AMD5800X(100-000000063)3.8GHz4MBP1.20VermeerB2105W
AMD5900X(100-000000061)3.7GHz6MBP1.20VermeerB2105W
AMD5800(100-000000456)3.4GHz4MBP1.20VermeerB265W
AMD5600X(100-000000065)3.7GHz3MBP1.20VermeerB265W
AMD5950X(100-000000059)3.4GHz8MBP1.20VermeerB2105W
AMD5900(100-000000062)3.0GHz6MBP1.20VermeerB265W
AMD5800X3D(100-000000651)3.4GHz4MBP2.20Vermeer 105W
AMD4100(100-000000510)4GHz2MBP2.20Renoir 65W
AMD5500(100-000000457)3.6GHz3MBP2.20Cezanne 65W
AMD4500(100-000000644)4.1GHz3MBP2.20Renoir 45-65W
AMD5700X(100-000000926)3.4GHz4MBP2.20Vermeer 65W
AMD5600(100-000000927)3.5GHz3MBP2.20Vermeer 65W
