ASRock B550M-C Micro ATX Mboard No I/O

Asrock B550m-C Micro Atx Mboard No I/O. Part Number: 80-Mxbfp2-A1a12
  Enlarge

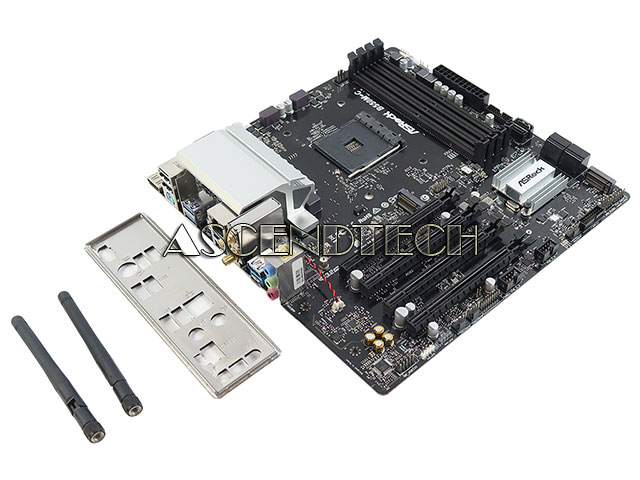

Asrock B550m-C Micro Atx Mboard No I/O. Part Number: 80-Mxbfp2-A1a12
Asrock B550m-C Micro Atx Mboard No I/O. Part Number: 80-Mxbfp2-A1a12
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBDSKASRB550MCA
Brand Asrock
Model B550M-C
Part Number 80-MXBFP2-A1A12
Compatible Part Numbers T80-E9000108857
Category Amd Am4 Matx Motherboard
Condition Like New Grade A

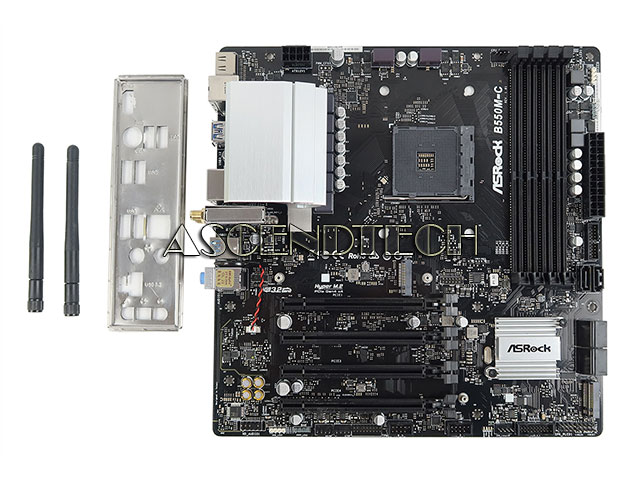

Condition Description Please note, this motherboard comes with I/O Shield and Antennas, does not include cables, fan bracket, fan backplate, or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

ASRock B550M-C AMD Chipset B550 Socket AM4 DDR4 HDMI USB-C SATA 6Gb/s Micro ATX Desktop Motherboard 80-MXBFP2-A1A12.

Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4733(O.C.)/4666(O.C.)/4600(O.C.)/4533(O.C.)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/ 4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/2933/2667/2400/2133MHz
Storage Interface: SATA 3 6.0Gb/s
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x Front Panel Audio Connector, 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), 4x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection), 2x USB 2.0 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
Interface: 2x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE4: Gen3 x4 mode), 2x PCI Express 3.0 x16 Slots (PCIE2/PCIE3: x1 mode), 1x Vertical M.2 Socket (Key E), 1x Hyper M.2 Socket, supports M Key type 2280, 1x M.2 Socket, supports M Key type 2280, 6x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Hardware Monitor
- Temperature Sensing: CPU, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8V

BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, +1.8VSB Voltage Multi-adjustment

Unique Feature
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
Intel 802.11ac WiFi
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash

Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft PlayReady

CPU Support

Socket LGA1200
VendorCPU ModelFrequencyWattageL3 CacheFamily
Inteli9-11900KF(B0)3.5GHz125W16MBCore i9
Inteli9-11900K(B0)3.5GHz125W16MBCore i9
Inteli9-11900F(B0)2.5GHz65W16MBCore i9
Inteli9-11900(B0)2.5GHz65W16MBCore i9
Inteli9-11900T(B0)1.5GHz35W16MBCore i9
Inteli7-11700K(B0)3.6GHz125W16MBCore i7
Inteli7-11700KF(B0)3.6GHz125W16MBCore i7
Inteli7-11700F(B0)2.5GHz65W16MBCore i7
Inteli7-11700(B0)2.5GHz65W16MBCore i7
Inteli7-11700T(B0)1.4GHz35W16MBCore i7
Inteli5-11600KF3.9GHz125W12MBCore i5
Inteli5-11600K(B0)3.9GHz125W12MBCore i5
Inteli5-11600(B0)2.8GHz65W12MBCore i5
Inteli5-11600T(B0)1.7GHz35W12MBCore i5
Inteli5-11500(B0)2.7GHz65W12MBCore i5
Inteli5-11500T(B0)1.5GHz35W12MBCore i5
Inteli5-11400F(B0)2.6GHz65W12MBCore i5
Inteli5-11400(B0)2.6GHz65W12MBCore i5
Inteli5-11400T(B0)1.3GHz35W12MBCore i5
Inteli3-10325(G1)3.9GHz65W8MBCore i3
Inteli3-10305(G1)3.8GHz65W8MBCore i3
Inteli3-10305T(G1)3GHz35W8MBCore i3
Inteli3-10105F(G1)3.7GHz65W6MBCore i3
Inteli3-10105(G1)3.7GHz65W6MBCore i3
Inteli3-10105T(G1)3GHz35W6MBCore i3
IntelG6605(G1)4.3GHz58W4MBPentium Gold
IntelG6505(G1)4.2GHz58W4MBPentium Gold
IntelG6505T(G1)3.6GHz35W4MBPentium Gold
IntelG6405(G1)4.1GHz58W4MBPentium Gold
IntelG6405T(G1)3.5GHz35W4MBPentium Gold
Inteli9-10900K(Q0)3.7GHz125W20MBCore i9
Inteli9-10900KF(Q0)3.7GHz125W20MBCore i9
Inteli9-10900F(Q0)2.8GHz65W20MBCore i9
Inteli9-10900T(Q0)1.9GHz35W20MBCore i9
Inteli9-10900(Q0)2.8GHz65W20MBCore i9
Inteli9-10850K(Q0)3.6GHz125W20MBCore i9
Inteli7-10700K(Q0)3.8GHz125W16MBCore i7
Inteli7-10700KF(Q0)3.8GHz125W16MBCore i7
Inteli7-10700F(Q0)2.9GHz65W16MBCore i7
Inteli7-10700(Q0)2.9GHz65W16MBCore i7
Inteli7-10700T(Q0)2.0GHz35W16MBCore i7
Inteli5-10600K(Q0)4.1GHz125W12MBCore i5
Inteli5-10600KF(Q0)4.1GHz125W12MBCore i5
Inteli5-10600(G1)3.3GHz65W12MBCore i5
Inteli5-10600T(G1)2.4GHz35W12MBCore i5
Inteli5-10500(G1)3.1GHz65W12MBCore i5
Inteli5-10500T(G1)2.3GHz35W12MBCore i5
Inteli5-10400F(Q0)2.9GHz65W12MBCore i5
Inteli5-10400F(G1)2.9GHz65W12MBCore i5
Inteli5-10400(G1)2.9GHz65W12MBCore i5
Inteli5-10400(Q0)2.9GHz65W12MBCore i5
Inteli5-10400T(G1)2.0GHz35W12MBCore i5
Inteli3-10320(G1)3.8GHz65W8MBCore i3
Inteli3-10300(G1)3.7GHz65W8MBCore i3
Inteli3-10300T(G1)3.0GHz35W8MBCore i3
Inteli3-10100F(G1)3.6GHz65W6MBCore i3
Inteli3-10100(G1)3.6GHz65W6MBCore i3
Inteli3-10100T(G1)3.0GHz35W6MBCore i3
IntelG6600(G1)4.2GHz58W4MBPentium Gold
IntelG6500(G1)4.1GHz58W4MBPentium Gold
IntelG6500T(G1)3.5GHz35W4MBPentium Gold
IntelG6400(G1)4.0GHz58W4MBPentium Gold
IntelG6400T(G1)3.4GHz35W4MBPentium Gold
IntelG5925(G1)3.6GHz58W4MBCeleron
IntelG5905(G1)3.5GHz58W4MBCeleron
IntelG5905T(G1)3.3GHz35W4MBCeleron
IntelG5900(G1)3.4GHz58W2MBCeleron
