ASRock B560M-C Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

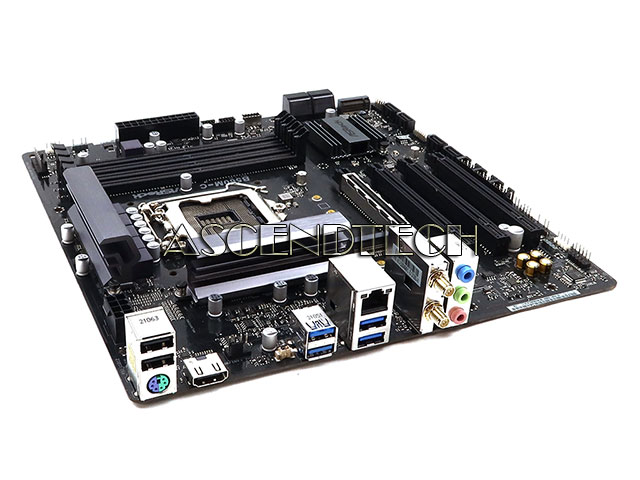

Asrock B560m-C Motherboard No I/O
Asrock B560m-C Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSKB560MCNOUD
BrandAsrock
ModelB560M-C
Part Number80-MXBEM2-A1A11
CategoryIntel Lga1200 Motherboard
ConditionPre-Owned Grade D

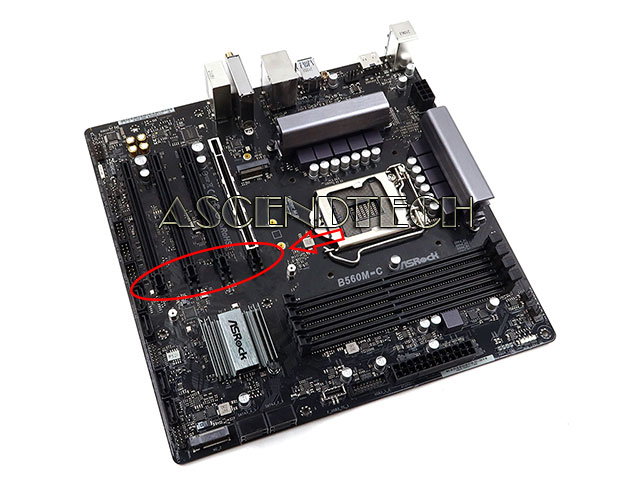

Condition DescriptionPlease note, this item is used and has minor scuffs and scratches, as well as missing locking clips from all PCI express slots! Item is fully operational and functions as intended! This motherboard does not include an I/O Shield, cables, fan’s mounting backplate, or any other accessories! Please see the images!

Description

ASRock B560M-C Intel Chipset B560 Socket LGA1200 DDR4 HDMI USB SATA 6Gb/s Micro ATX Desktop Motherboard 80-MXBEM2-A1A11.

Chipset: Intel B560
Socket: Intel LGA1200
Compatible/Supported CPU: 10th 11th Gen Intel Core Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Storage Interface: SATA 3 6.0Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: Intel WiFi Module 802.11a/b/g/n/ac
Network/Communications: Intel I219V Gigabit LAN 10/100/1000Mb/s
Audio: Realtek ALC897 Audio Codec
Connectors: 1x SPI TPM Header, 1x Chassis Intrusion and Speaker Header, 2x RGB LED Headers, 2x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 2x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector (Hi-Density Power Connector), 1x Front Panel Audio Connector, 3x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection), 1x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 4x USB 3.2 Gen1 Ports (Supports ESD Protection), 2x USB 2.0 Ports (Supports ESD Protection), 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphoneon)
Expansion Slots: 3x PCI Express 3.0 x16 Slots, 1x PCI Express 4.0 x16 Slot, 2x M.2 Socket (Key M), 6x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN AUX, VCCSA, VCCIO, CPU PLL Voltage

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCSA,VCCIO Multi-adjustment

Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slot
Intel 802.11ac WiFi
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash

Graphics
- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel Core Processors
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel Core Processors
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with HDMI Port (HDCP 2.3 ready with 11th Gen Intel Core Processors)
