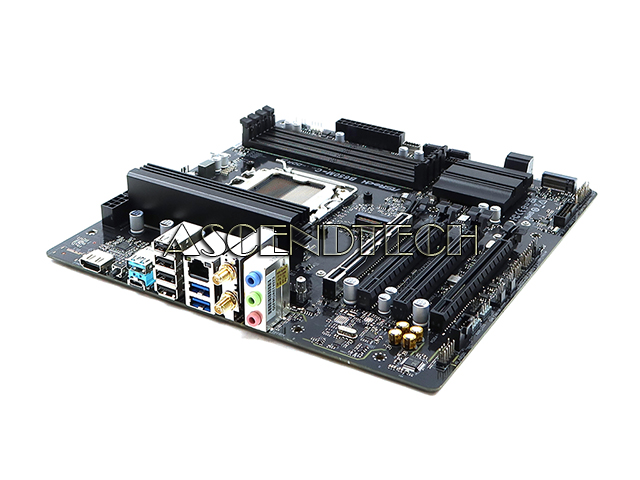

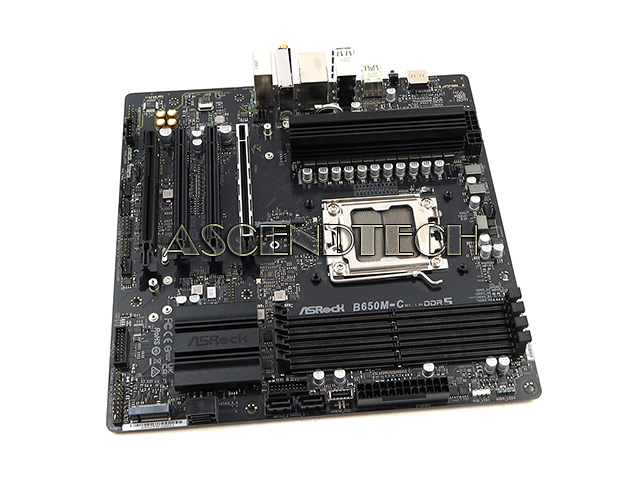

ASRock B650M-C Desktop Mboard No I/O
Qty:
Item Code MBDSKASRB650MCA
Brand Asrock
Model B650M-C
Part Number 80-MXBJ82-A1A01
Category Amd Socket Am5 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, fan’s bracket, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
ASRock B650M-C AMD Chipset B650 Socket AM5 DDR5 SATA 6Gb/s USB 3.2 HDMI Micro ATX Desktop Motherboard 80-MXBJ82-A1A01.
Chipset: AMD B650
Socket: AMD AM5
Compatible/Supported CPU: Supports Ryzen 8000 and 7000 Series Processors
Max Supported Memory: 192GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 6200MHz+(OC)
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 10 SATA, 0, 1, 10 NVMe
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 802.11ac WiFi Module up to 433Mbps
Network/Communications: Realtek RTL8111H, Gigabit LAN 10/100/1000Mb/s
Audio: Realtek ALC897 Audio Codec, 7.1 CH HD Audio
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x 4 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card), 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen1 Header
Input/Output Ports: 2x Antenna Ports, 1x HDMI Port, 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver), 2x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports), 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 2x M.2 slots (Key M), 4x SATA 6Gb/s ports, 4x PCIe 4.0 x16 slots
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Additional Specifications:
Onboard Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Unique Features
Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 12+2+1 Power Phase, 50A Dr.MOS
Ultrafast Connectivity
- B650M-C / B650M-CW: 802.11ac Wi-Fi Module
- B650M-CX / B650M-CWX: 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU Support:
| Socket AM5 | |||||||
|---|---|---|---|---|---|---|---|
| Vendor | CPU Model | CPU Frequency | L3 Cache | Core Name | Wattage | ||
| AMD | 7950X3D(100-000000908) | 4.2GHz | 128MB | Raphael | 120W | ||
| AMD | 7900X3D(100-000000909) | 4.4GHz | 128MB | Raphael | 120W | ||
| AMD | 7950X(100-000000514-00) | 4.5GHz | 64MB | Raphael | 170W | ||
| AMD | 7900X(100-000000589-00) | 4.7GHz | 64MB | Raphael | 170W | ||
| AMD | 7900(100-000000590) | 3.7GHz | 64MB | Raphael | 65W | ||
| AMD | Pro 7945(100-000000598) | 3.7GHz | 64MB | Raphael | 65W | ||
| AMD | Pro 7745(100-000000599) | 3.8GHz | 32MB | Raphael | 65W | ||
| AMD | 7800X3D(100-000000910) | 4.2GHz | 96MB | Raphael | 120W | ||
| AMD | 7700X(100-000000591-00) | 4.5GHz | 32MB | Raphael | 105W | ||
| AMD | 7700(100-000000592) | 3.8GHz | 32MB | Raphael | 65W | ||
| AMD | Pro 7645(100-000000600) | 3.8GHz | 32MB | Raphael | 65W | ||
| AMD | 7600X(100-000000593-00) | 4.7GHz | 32MB | Raphael | 105W | ||
| AMD | 7600(100-000001015) | 3.8GHz | 32MB | Raphael | 65W | ||
| AMD | 7500F(100-000000597) | 3.7GHz | 32MB | Raphael | 65W | ||
| AMD | 8600G(100-000001237) | 4.3GHZ | 16MB | Phoenix 1 | 65W/45W | ||
| AMD | 8700G(100-000001236) | 4.2GHz | 16MB | Phoenix 1 | 65W/45W | ||
| AMD | PRO 8300G(100-000001187) | 3.45GHz | 8MB | Phoenix 2 | 65W/45W | ||
| AMD | PRO 8500G(100-000001183) | 3.55GHz | 16MB | Phoenix 2 | 65W/45W | ||
| AMD | 8300G(100-000001186) | 3.45GHz | 8MB | Phoenix 2 | 65W/45W | ||
| AMD | 8500G(100-000000931) | 3.5GHz | 16MB | Phoenix 2 | 65W/45W | ||
| AMD | PRO 8600G(100-000001239) | 4.35GHz | 16MB | Phoenix 1 | 65W/45W | ||
| AMD | 8300GE(100-000001188) | 3.5GHz | 8MB | Phoenix 2 | 35W | ||
| AMD | 8500GE(100-000001184) | 3.4GHz | 16MB | Phoenix 2 | 35W | ||
| AMD | PRO 8700G(100-000001238) | 4.2GHz | 16MB | Phoenix 1 | 65W/45W | ||
| AMD | PRO 8300GE(100-000001189) | 3.5GHz | 8MB | Phoenix 2 | 35W | ||
| AMD | PRO 8500GE(100-000001185) | 3.4GHz | 16MB | Phoenix 2 | 35W | ||
| AMD | PRO 8700GE(100-000001240) | 3.65GHz | 16MB | Phoenix 1 | 35W | ||
| AMD | PRO 8600GE(100-000001241) | 3.9GHz | 16MB | Phoenix 1 | 35W | ||
| AMD | 8700F(100-000001590) | 4.1GHz | 16MB | Phoenix 1 | 65W/45W | ||
| AMD | 8400F(100-000001591) | 4.2GHz | 16MB | Phoenix 1 | 65W/45W | ||
| AMD | 9950X | 64MB | Granite Ridge | 170W | |||
| AMD | 9900X | 64MB | Granite Ridge | 120W | |||
| AMD | 9700X | 32MB | Granite Ridge | 65W | |||
| AMD | 9600X | 32MB | Granite Ridge | 65W | |||
