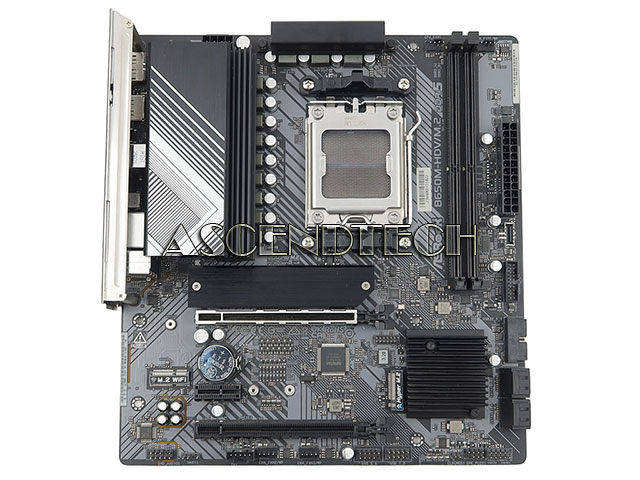

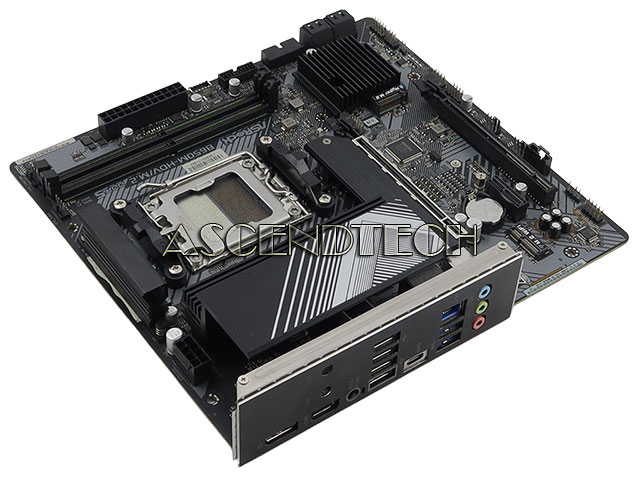

AsRock B650M-HDV/M.2 AMD Chipset B650 Socket AM5 DDR5 SATA 6Gb/s DisplayPort HDMI Micro ATX Desktop Motherboard 80-MXBLA0-A1A02.
Chipset: AMD B650
Socket: AMD AM5
Compatible/Supported CPU: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Max Supported Memory: 128GB
Number of Memory Slots: 2
Memory Type: DDR5SDRAM
Speed: 7200+(OC)MHz
Network/Communications: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Power LED and Speaker Header, 1x CPU Fan Connector (4-pin), 3x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x Front Panel Audio Connector, 1x Thunderbolt AIC Connector (5-pin), 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen2 Header
Input/Output Ports: 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen1 Type-C Port, 2x USB 3.2 Gen1 Type-A Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 4.0 x4 (in x16 slot), 1x PCIe 4.0 x1, 1x M.2 Key-E Wi-Fi/Bluetooth slot, 1x M.2 PCIe Gen5x4, 1x M.2 PCIe Gen4x4, 4x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Additional Specifications:
Onboard Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Unique Features
Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 8+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I/O Shield
Ultrafast Gaming
- 2.5G LAN EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
