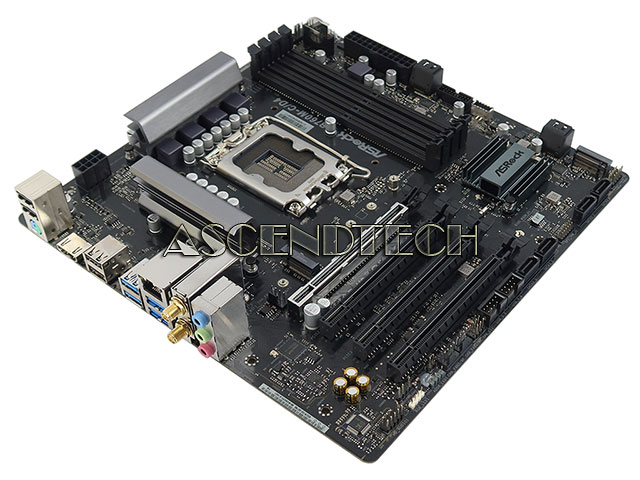

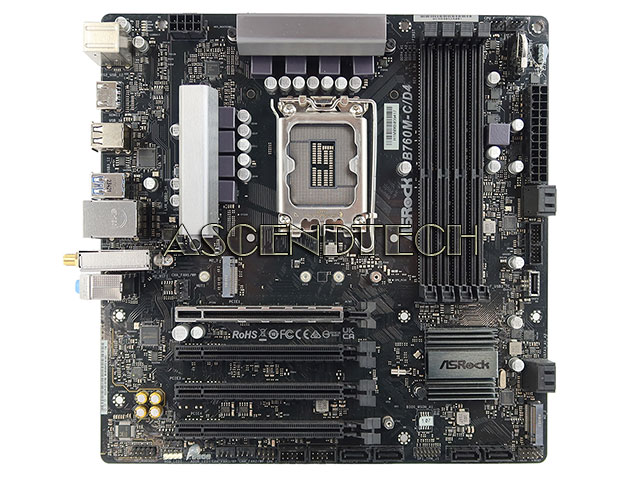

ASRock B760M-C/D4 Intel Chipset B760 Socket LGA1700 DDR4 SATA 6Gb/s HDMI Micro ATX Desktop Motherboard 80-MXBKP2-A1A01.
Chipset: Intel B760
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th 13th 12th Gen Intel Core Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333+(OC)MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Network/Communications: Intel I219V Gigabit LAN 10/100/1000 Mb/s
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Chassis Intrusion and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector (4-pin), 3x Chassis/Water Pump Fan Connectors (4-pin), 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector (Hi-Density Power Connector), 1x Front Panel Audio Connector, 2x USB 2.0 Headers (Support 4 USB 2.0 ports), 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports), 1x Front Panel Type C USB 3.2 Gen1 Header
Input/Output Ports: 2x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 4x USB 3.2 Gen1 Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Expansion Slots: 1x PCIe 4.0 x16, 3x PCIe 3.0 x16 (x1 mode), 1x M.2 Key-E Wi-Fi/BT slot, 2x M.2 PCIe Gen4x4 (64 Gb/s), 8x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
Additional Specifications:
Onboard Graphics
Intel Xe Graphics Architecture (Gen 12)
HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Unique Features
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- Killer 2.5G LAN
- ASRock Lightning Gaming Ports
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
