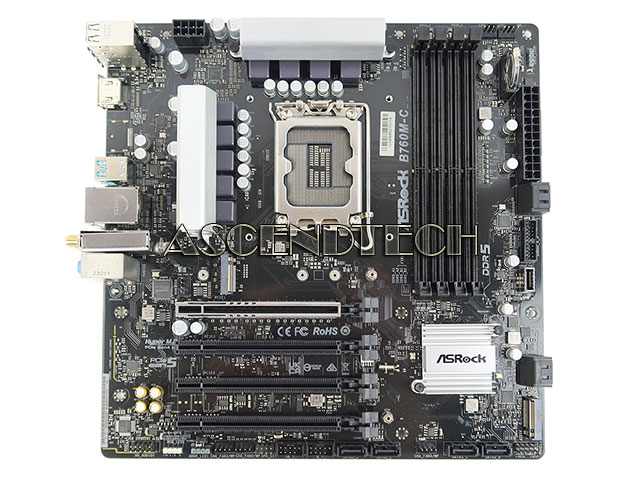

ASRock B760M-C Micro ATX Mboard No I/O

Asrock B760m-C Micro Atx Mboard No I/O. Part Number: 80-Mxblf2-A1a02
  Enlarge
Asrock B760m-C Micro Atx Mboard No I/O. Part Number: 80-Mxblf2-A1a02
Asrock B760m-C Micro Atx Mboard No I/O. Part Number: 80-Mxblf2-A1a02
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item Code MBLTPB760MCD5UA
Brand Asrock
Model B760M-C
Part Number 80-MXBLF2-A1A02
Compatible Part Numbers 80-MXBLF2-A1B01
Category Intel Lga1700 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with fan backplate, does not include an I/O Shield, cables, fan’s bracket, or any other accessories!

Add-ons / Accessories

If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.

$9.99
Pre-Test My Motherboard Before It Ships
Pre-Test My Motherboard Before It Ships

Description

ASRock B760M-C Intel Chipset B760 Socket LGA1700 DDR5 SATA 6Gb/s HDMI Micro ATX Desktop Motherboard 80-MXBLF2-A1A02.

Chipset: Intel B760
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th 13th 12th Gen Intel Core Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Network/Communications: Realtek 8111H Gigabit LAN 10/100/1000 Mb/s
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Connectors: 1x SPI TPM Header, 1x Chassis Intrusion and Speaker Header, 1x RGB LED Header, 3x Addressable LED Headers, 1x CPU Fan Connector (4-pin), 1x CPU/Water Pump Fan Connector, 4x Chassis/Water Pump Fan Connectors, 1x 24 pin ATX Power Connector, 1x 8 pin 12V Power Connector, 1x Front Panel Audio Connector, 2x USB 2.0 Headers, 1x USB 3.2 Gen1 Header, 1x Front Panel Type C USB 3.2 Gen1 Header
Input/Output Ports: 2x Antenna Ports, 1x HDMI Port, 1x USB 3.2 Gen1 Type-C Port, 3x USB 3.2 Gen1 Type-A Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 3x HD Audio Jacks
Interface: 1x PCIe 5.0 x16, 3x PCIe 4.0 x16, 2x M.2 PCIe Gen4x4, 8x SATA3 6.0 Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Onboard Graphics
Intel Xe Graphics Architecture (Gen 12)
1x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

BIOS
128Mb AMI UEFI Legal BIOS with GUI support

Unique Features
Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Pre-Installed I/O Shield
Ultrafast Connectivity
- B760M-C / B760M-CW: 802.11ac Wi-Fi Module
- B760M-CX: 802.11axe Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
