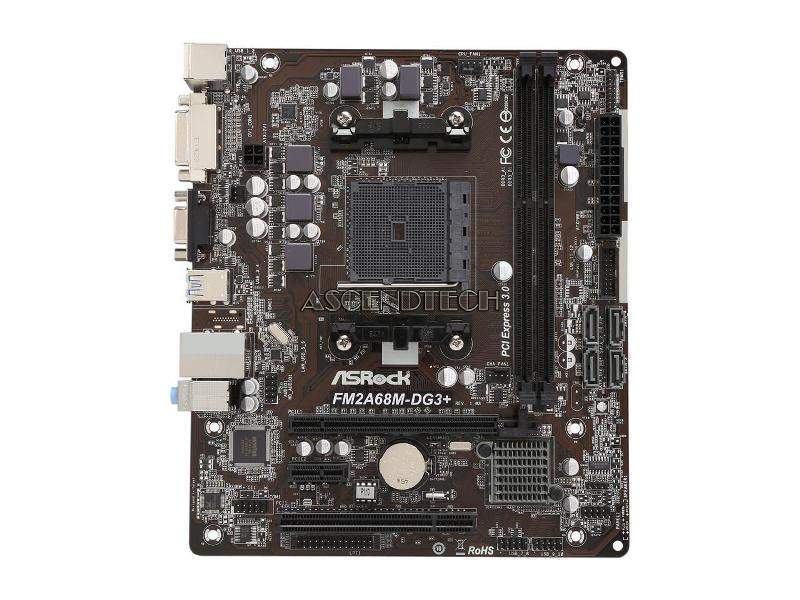

ASRock FM2A68M-DG3+ AMD FM2/FM2+ M-ATX

ASRock FM2A68M-DG3+ FM2+ / FM2 AMD A68H FCH (Bolton D2H) SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard. A great foundation for you to build a FM2+/FM2 APU-based system, the ASRock FM2A68M-DG3+ Motherboard delivers performance, features, and quality at a great price. It's based on an AMD A68H FCH (Bolton D2H) chipset and supports an FM2+/FM2 processor.

Features:

• Support for Socket FM2+ 95W / FM2 100W processors
• All Solid Capacitor Design
• Supports Dual Channel DDR3 2400+ (OC)
• 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1, 1 x PCI, Supports AMD Dual Graphics
• Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
• Graphics Output Options: D-Sub, DVI-D
• 5.1-Channel HD Audio (Realtek ALC662 Audio Codec)
• 1 x Print Port Header, 1 x COM Port Header
• 4 x SATA3, 2 x USB 3.0, 10 x USB 2.0 (6 Front, 4 Rear)
• Supports ASRock Cloud, APP Shop, Full Spike Protection, X-Boost

Specification:

Brand: ASRock
Model: FM2A68M-DG3+
CPU Socket: FM2+ / FM2
Supported CPU Type: APU (FM2 Socket)
Chipset: AMD A68H FCH (Bolton D2H)
Number of Memory Slots: 2×240pin
Memory Standard: DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported: 32GB
Channel Supported: Dual Channel
Expansion Slots:
1 x PCI Express 3.0 x16 Slot (PCIE1@ x16 mode)
*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.
1 x PCI Express 2.0 x1 Slot
1 x PCI Slot
Storage Devices:
4 x SATA 6Gb/s
0/1/10 SATA RAID
Onboard Video Chipset: By CPU model
Onboard Audio Chipset: Realtek ALC662
Audio Channels: 5.1 Channels
Onboard LAN Chipset: Realtek 8111-GR
Max LAN Speed: 10/100/1000Mbps

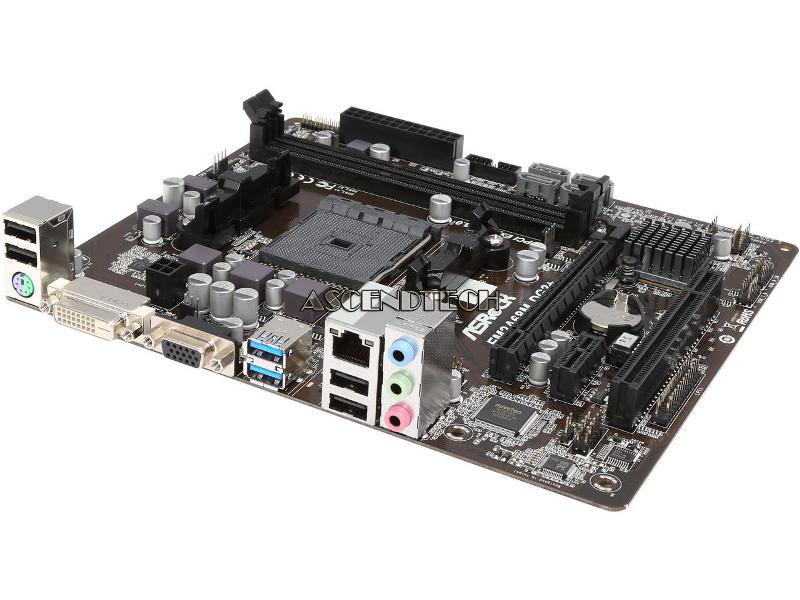

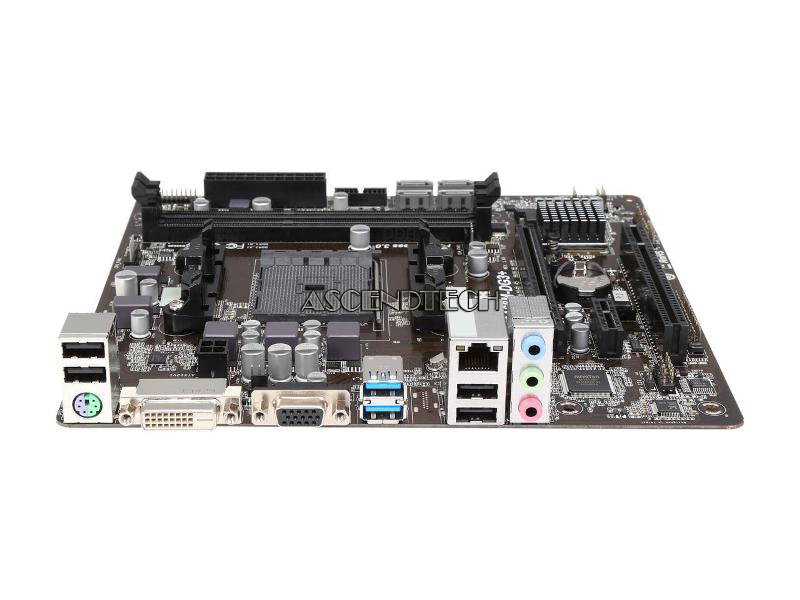

Rear Panel Ports:
1 x PS/2 keyboard/mouse port
1 x D-Sub Port
1 x DVI-D Port
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
2 x USB 3.0 Ports (AMD A68H (Bolton-D2H)) (Supports ESD Protection (ASRock Full Spike Protection))
4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors:
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x Flexible USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x Print Port Header
1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
Form Factor: Micro ATX
